3 - 45

IPN 074-397-P1G

HAPSITE Smart Operating Manual

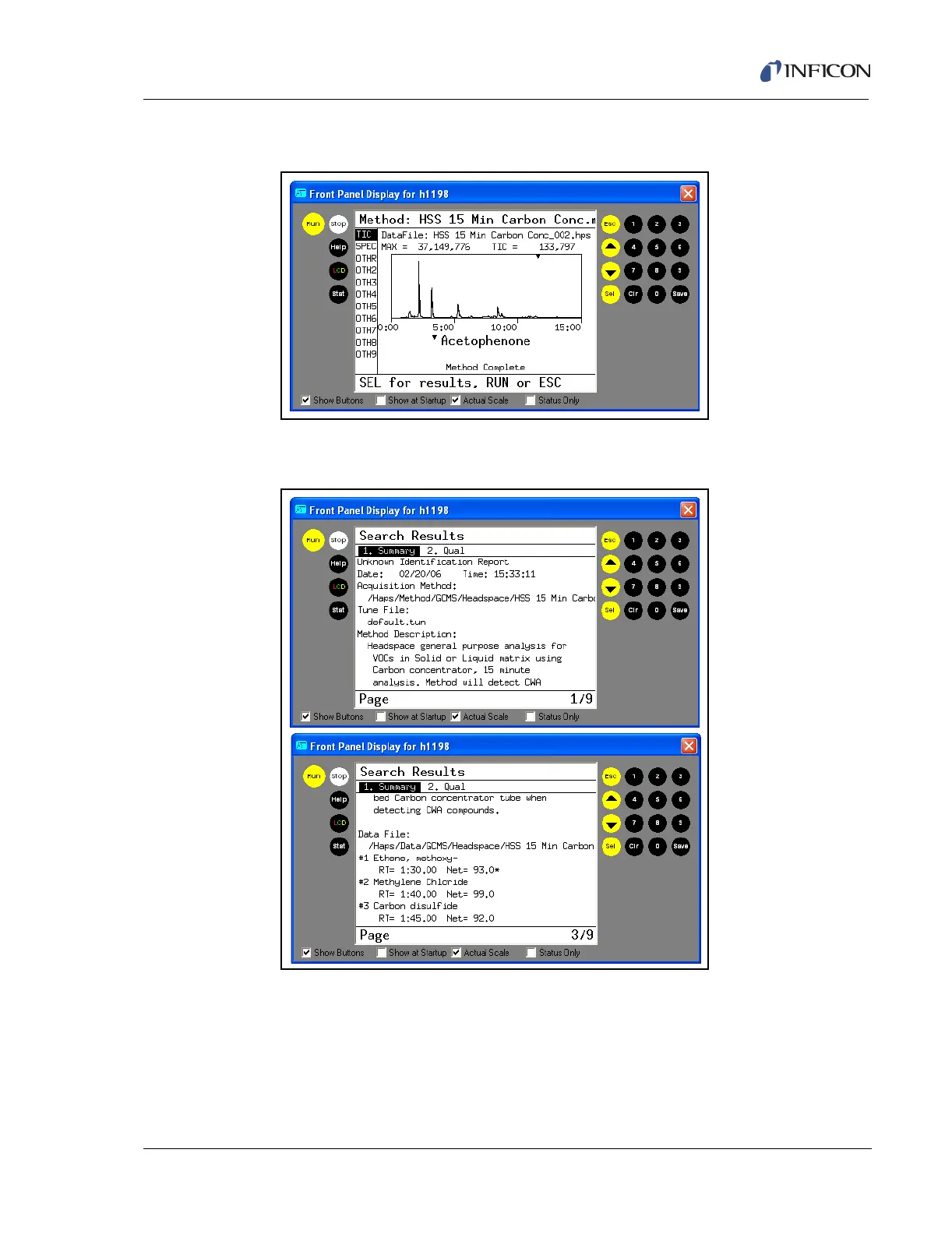

13 Review results at end of run. See Figure 3-64.

Figure 3-64 Completed Run

14 View report. See Figure 3-65.

Figure 3-65 Sample Run Results on Front Panel
