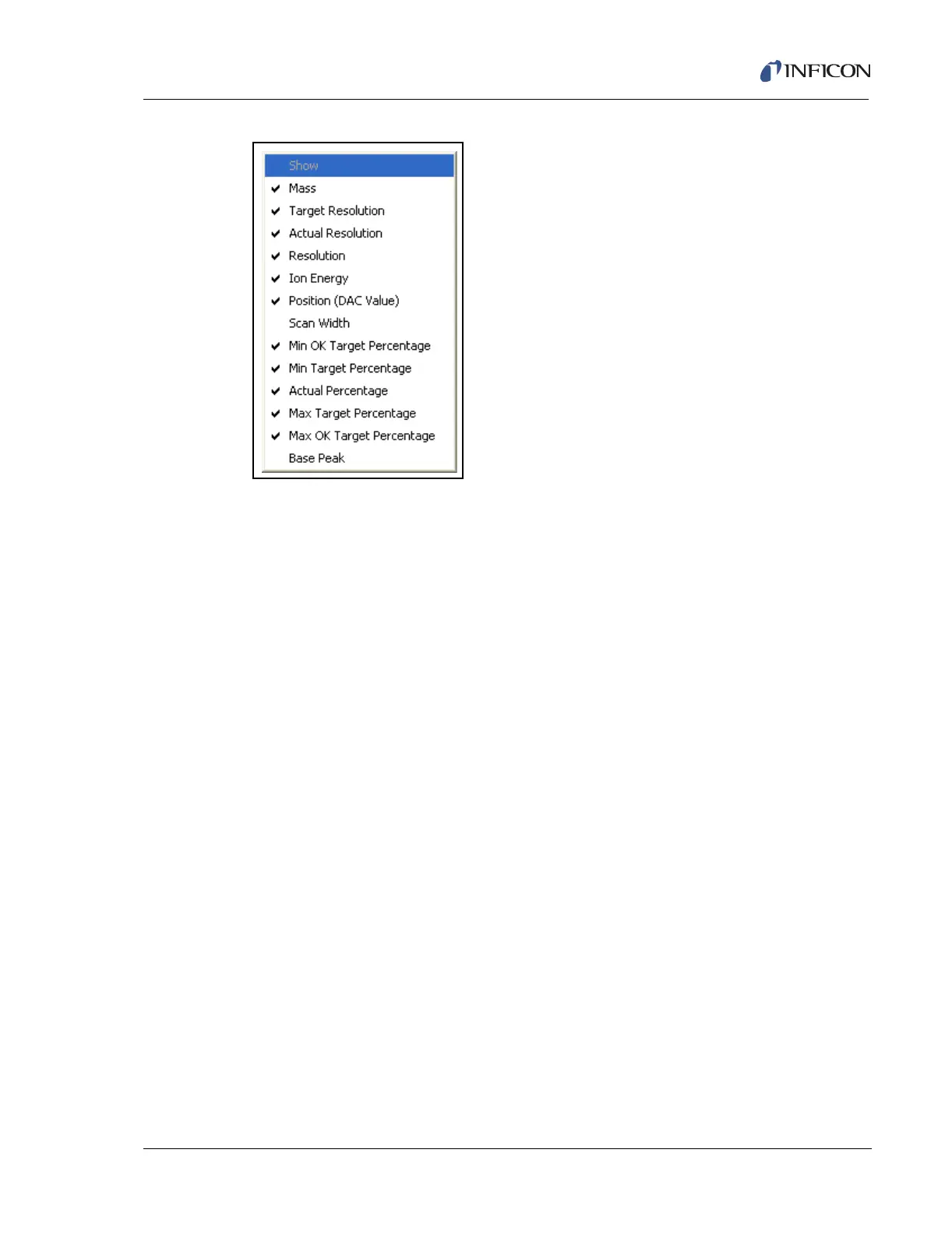

Figure 7-25 Tune and Mass Calibration Status Menu
Mass . . . . . . . . . . . . . . . . . . . . . . . . The mass number of the peak. When a mass
is selected to display, the mass immediately
below and above are also displayed.
Target Resolution. . . . . . . . . . . . . . Target resolution at 10% peak height.
Actual Resolution. . . . . . . . . . . . . . Measured resolution at 10% peak height.
Resolution. . . . . . . . . . . . . . . . . . . . Resolution value; can be used to input a
change in resolution value.
Ion Energy. . . . . . . . . . . . . . . . . . . . Ion energy value; can be used to input a
change in Ion energy value.
Position (DAC Value) . . . . . . . . . . . Current DAC setting for mass position.
Scan Width . . . . . . . . . . . . . . . . . . . Displays the points measured per AMU.
Min OK Target Percentage . . . . . . Displays the minimum target percentage
required for the mass peak to meet the OK
LOW criteria.
Min Target Percentage. . . . . . . . . . Displays the minimum target percentage
required for the mass peak to meet OK
criteria. Will turn red if actual percentage is
below the minimum percentage.
Actual Percentage . . . . . . . . . . . . . Displays the actual measured target
percentage.
Max Target Percentage . . . . . . . . . Displays the maximum target percentage
required for the Mass Peak to meet OK
criteria. Will turn red if actual percentage is
above the maximum percentage.
