7 - 28
IPN 074-397-P1G
HAPSITE Smart Operating Manual

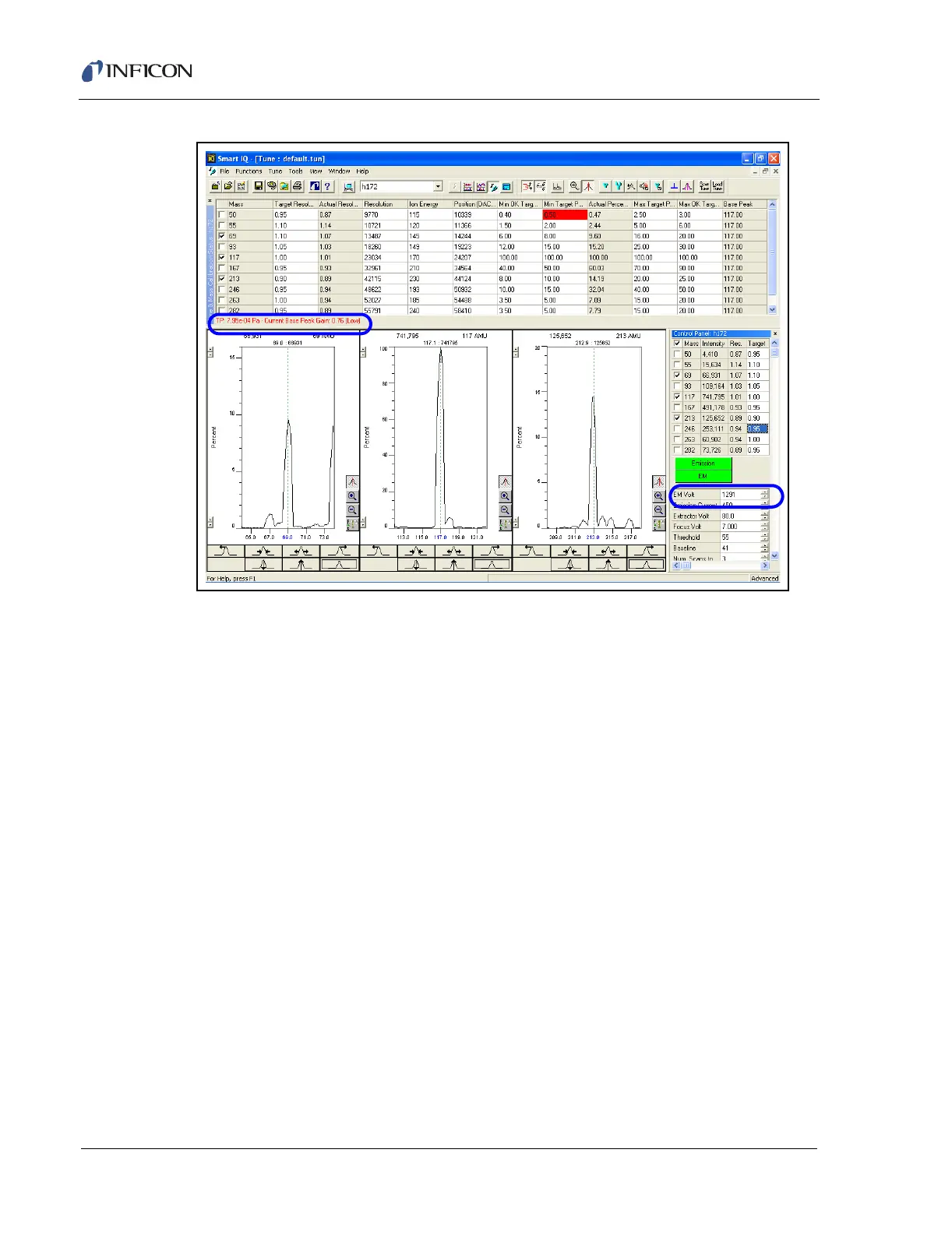

Figure 7-34 BPG Low
6 To raise the BPG, increase the value of the EM Voltage by 25 volts. To lower
the BPG, decrease the value of the EM Voltage by 25 volts. See Figure 7-34.
7 Check the BPG value to see if the BPG is now in the range (0.8 to 2.0).
7a If the Base Peak Gain is still out of range, repeat Step 6 until the value comes
into range.
7b If the Base Peak Gain is in range, continue with Step 8.
8 Check the Tune and Mass Calibration Status panel to see if any of the masses
are highlighted in red. A red box indicates the mass is High or Low. See Figure
7-35.
