7 - 32

IPN 074-397-P1G

HAPSITE Smart Operating Manual

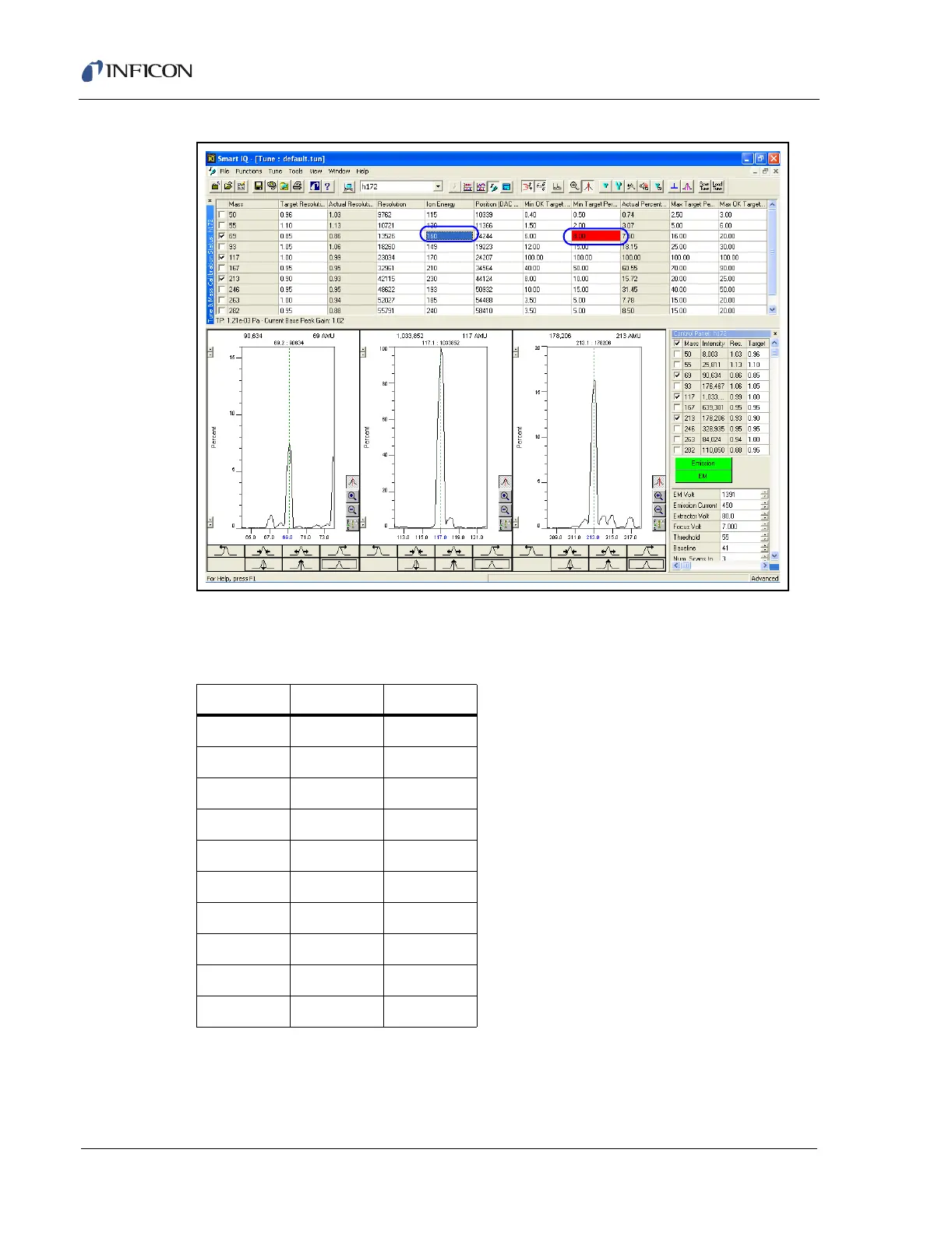

Figure 7-38 Ion Energy Needs to be Increased

NOTE: When adjusting ion energy, there are low and high limits for each mass.

Make sure manual adjustments stay within the following limits:

3 After making Ion Energy adjustments:

3a If the red boxes no longer appear, indicating the Actual Resolution is within

range, proceed to Step 4. See Figure 7-39.

Table 7-1 Manual Adjustments Guidelines

MASS IE low IE high

50 90 170

55 90 170

69 90 170

93 90 170

117 140 170

167 140 220

213 175 230

246 180 230

263 185 250

282 190 255
