9 - 24

IPN 074-397-P1G

HAPSITE Smart Operating Manual

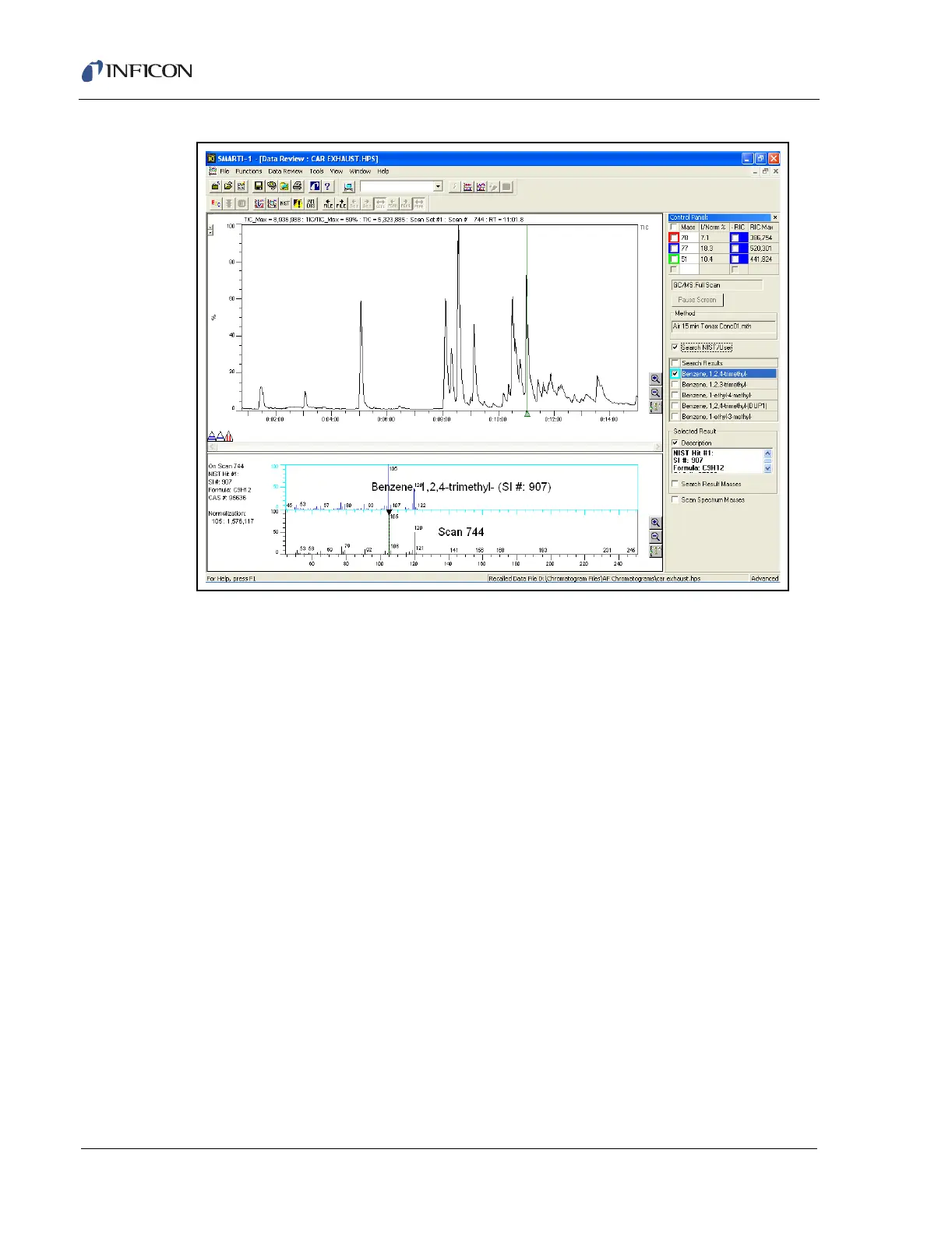

Figure 9-29 Search Results Display

Additional information may be obtained by checking the boxes in the Control Panel.

These boxes, when checked, will provide information so that the NIST Match and

the spectrum generated by HAPSITE Smart IQ can be compared. See Figure 9-30.
