9 - 30
IPN 074-397-P1G
HAPSITE Smart Operating Manual
When the analyst invokes AMDIS, upon completion of the analysis, the program
returns the Results Screen. See the inset in Figure 9-37. The results screen
includes:
Retention Time Window
Identifications Window
Component Window
Match Quality Window
Library Tab

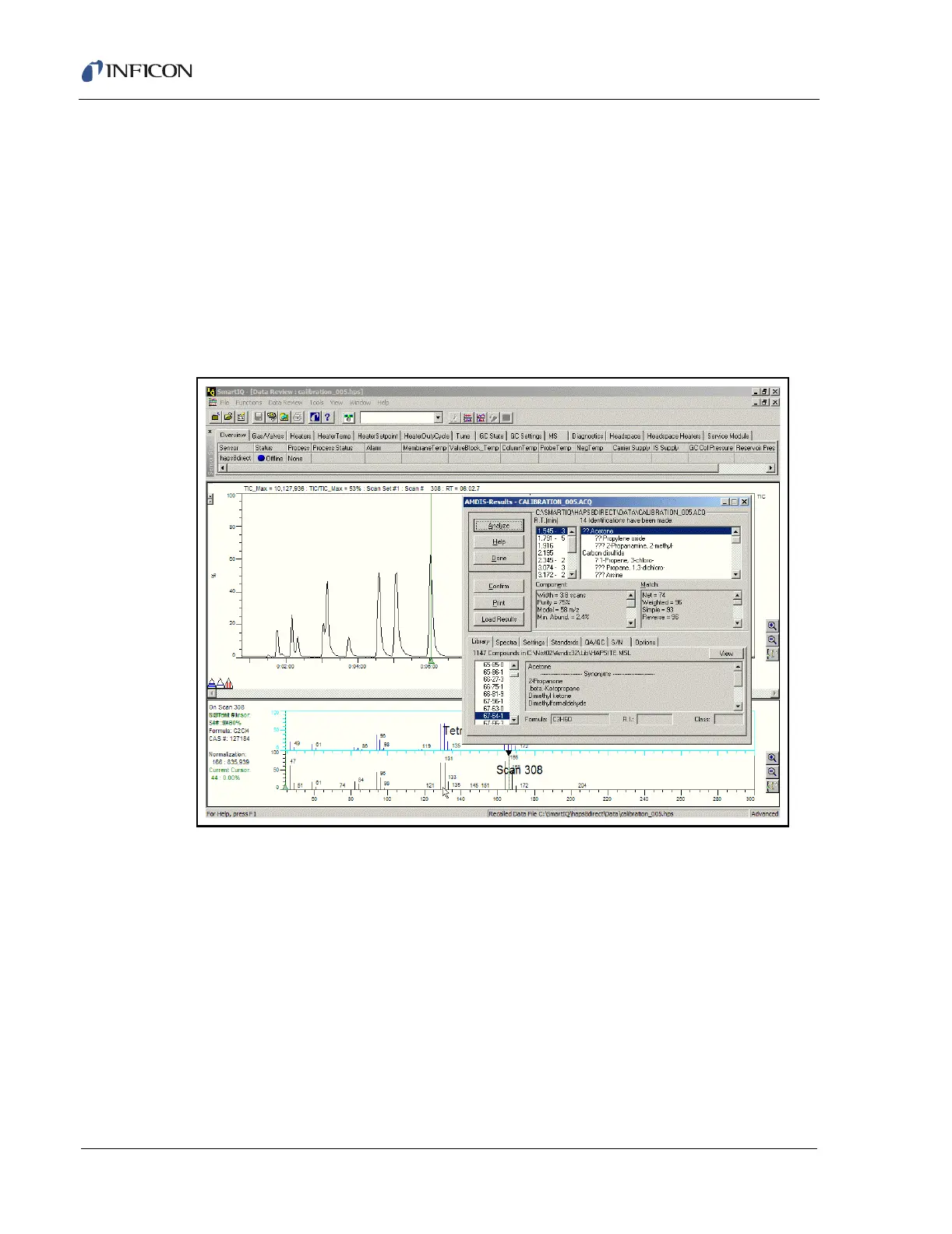

Figure 9-37 AMDIS Results Screen
This provides the results of the AMDIS data analysis and provides all the data that
most analysts need. If a particular analysis needs additional confirmation, press the
Confirm button to access the Confirm Window, see Figure 9-38.
