For example, in Figure 11-10, increasing the Run Time will increase the Duration
of the Backflush Inlet State and will result in an increased Start time for the Standby
event. The increase will also result in an increase to the Hold Time for the 180
degrees Temperature in the GC Temperature Profiles.
NOTE: In the rare case that the settings cannot be automatically synchronized, the
incorrect cells are colored yellow as a guide to what needs correction.

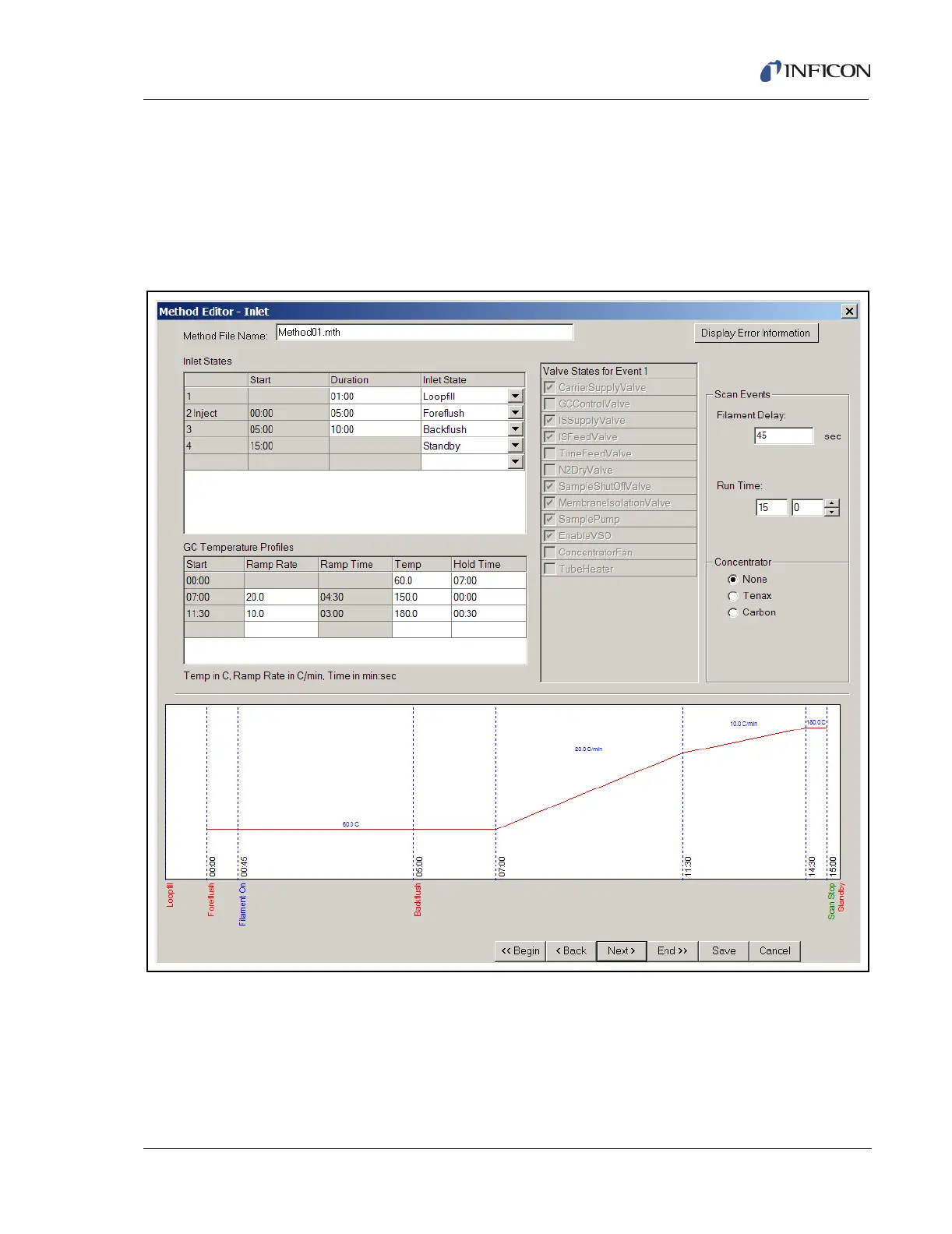

Figure 11-10 Method Editor Inlet Page for GC/MS Full Scan
The only difference on the Inlet page between a GC/MS Full Scan method and a
GC/MS SIM method is that the Run Time parameter entry is replaced with a table
showing the SIM Sets as programmed on the SIM page (refer to section 11.2.2,
SIM Method, on page 11-6). This difference is shown in Figure 11-11.
