HAPSITE Smart Operating Manual

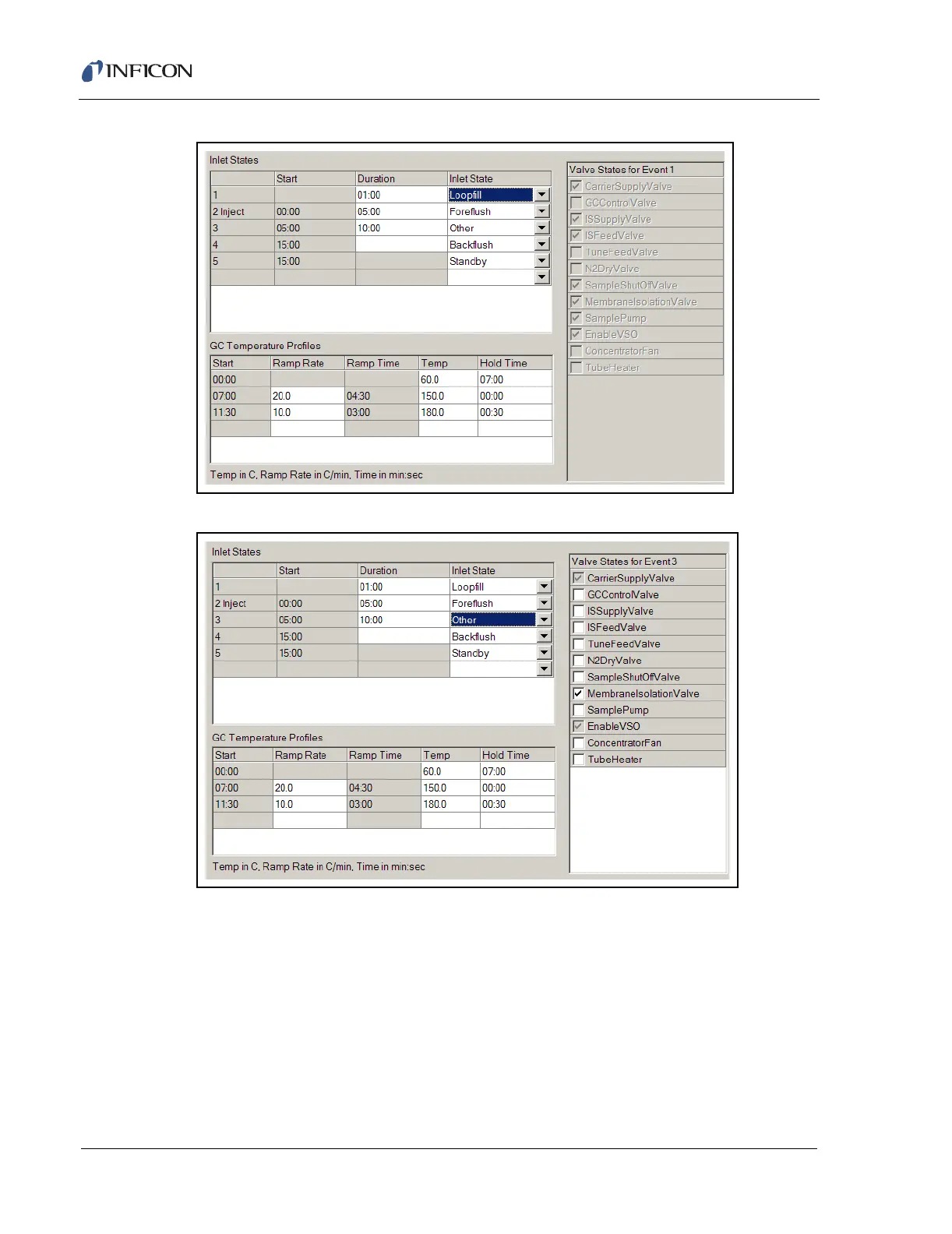

Figure 11-13 Valve States for an Inlet State Event

Figure 11-14 Customizing the Valve States for an Inlet State

Any Inlet State can be selected from the pull-down within the Inlet State column as

shown in Figure 11-15. Some Inlet States are not available as the first state and

some are only available after specific states have been selected. Some Inlet States

can be programmed to occur before Start time 00:00, which is considered the Inject

event.
