template. After selecting the Spectrum for the compound to be added, place the

cursor in the mass spectrum window and click the right mouse button to open up

the spectrum pop-up menu. Select the Grab Spectrum for Template menu option.

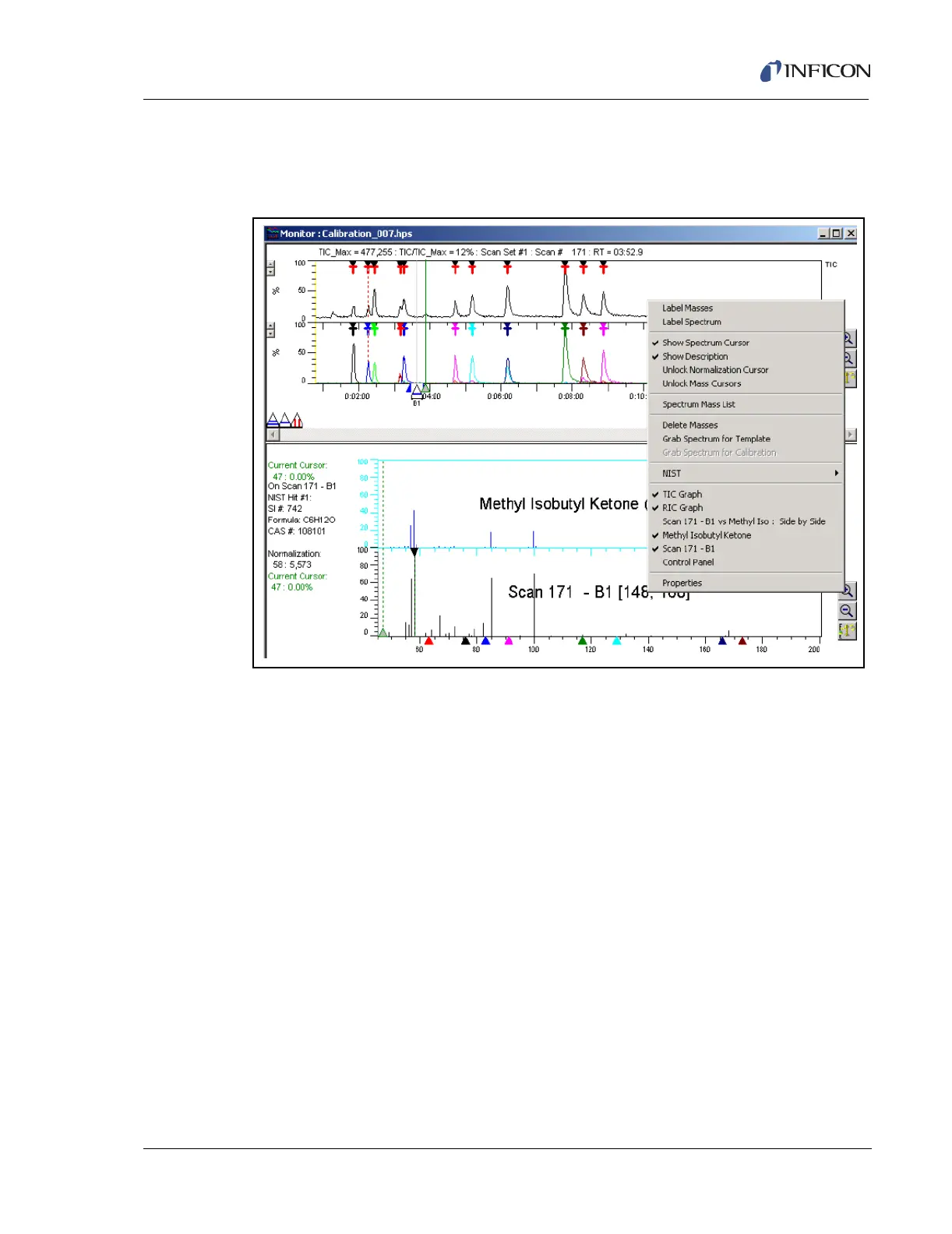

Figure 12-8 Calibration Display
