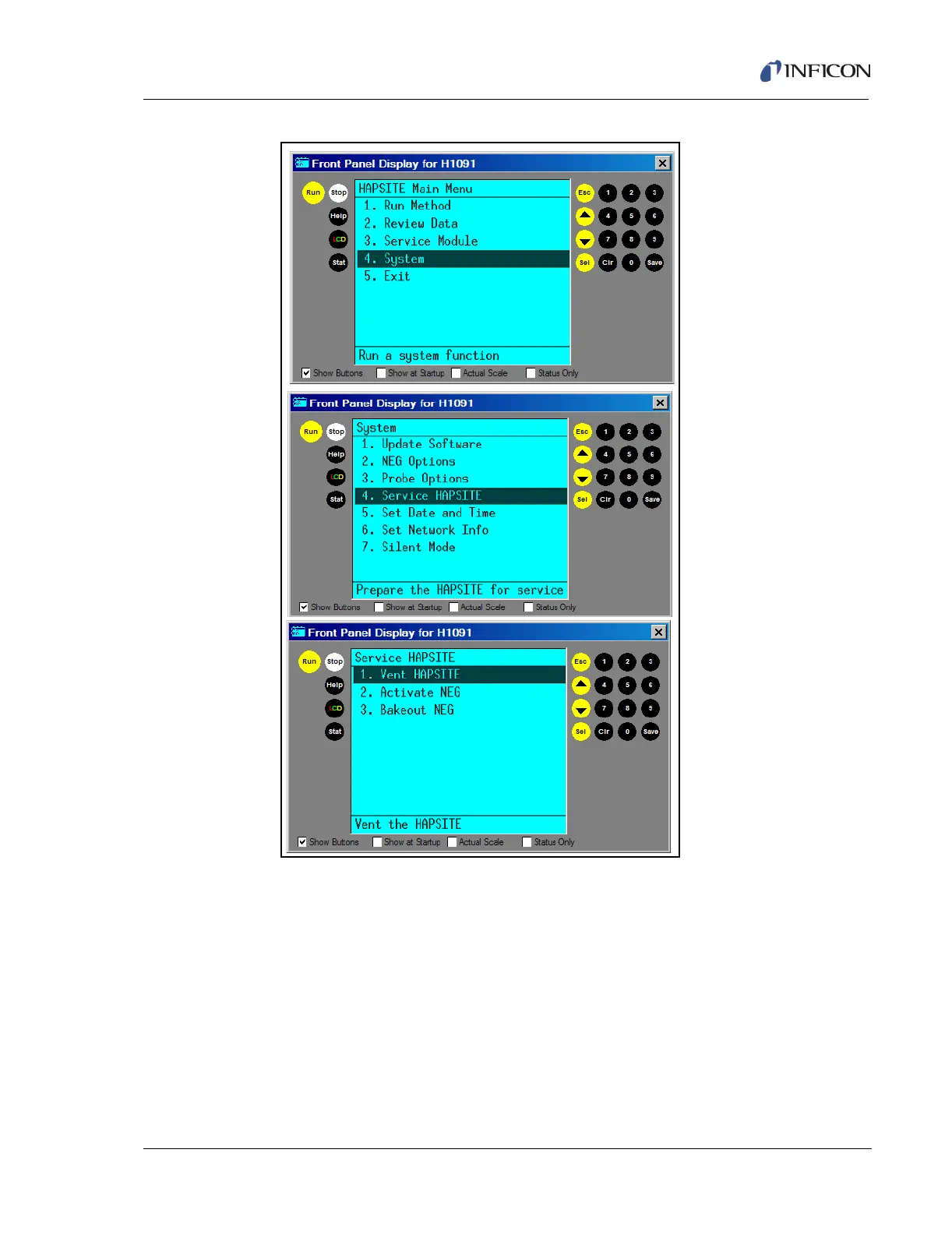

Figure 15-14 Vent HAPSITE from the Front Panel

NOTE: If the HAPSITE is not attached to the Service Module, an error message

will be displayed and the process will not proceed. See Figure 15-15.
