4 With the Concentrator Tube in place, press down on the top of the elbow
assembly with just enough force to seat the Concentrator Tube. See Figure
2-46.

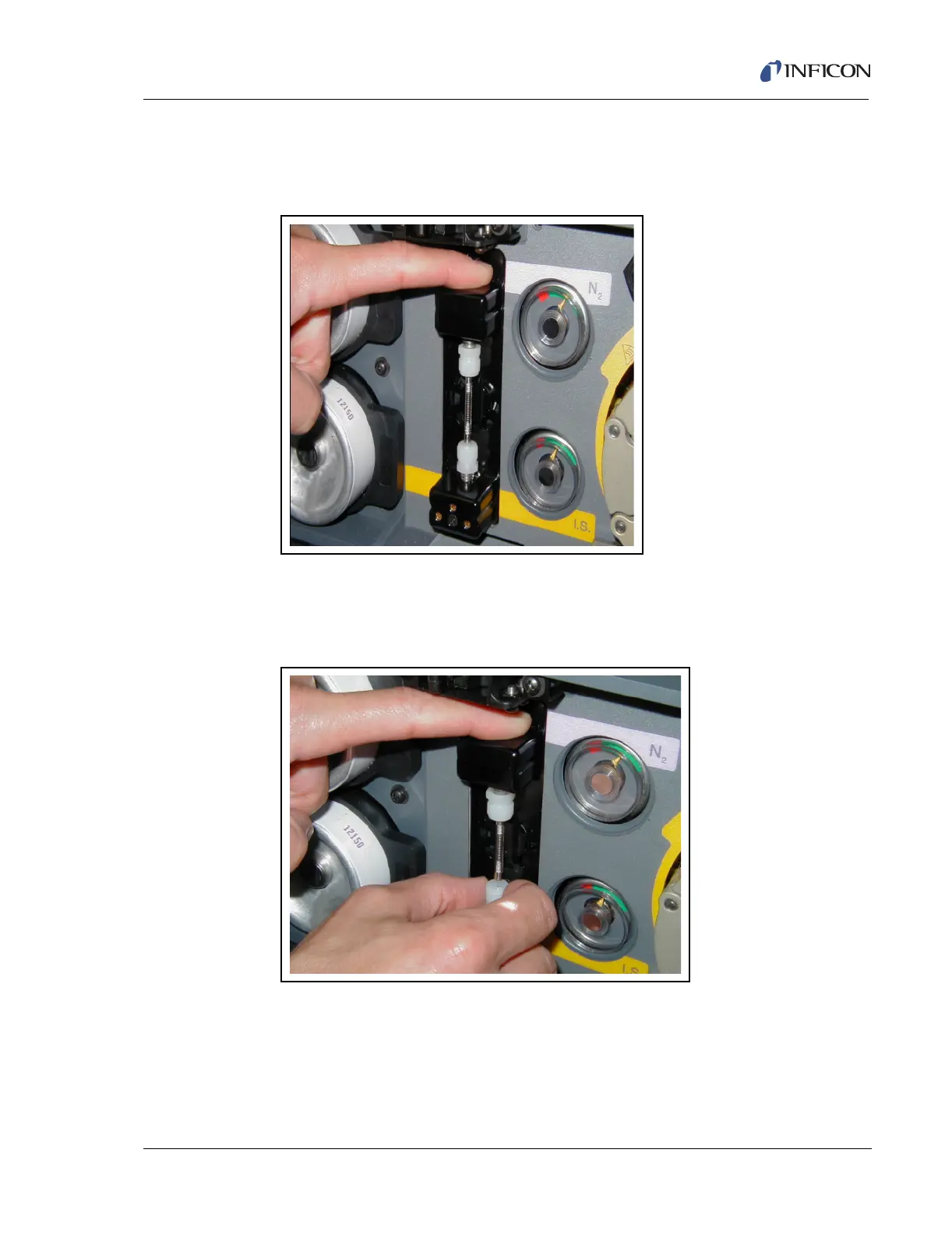

Figure 2-46 Pressing Down on Elbow Assembly
5 Maintain the pressure on the top of the elbow and, tighten the bottom nut only
until it begins to contact the ferrule. See Figure 2-47, Tighten Bottom Nut, on
page 2-33.
Figure 2-47 Tighten Bottom Nut
