3 - 5

IPN 074-397-P1G

HAPSITE Smart Operating Manual

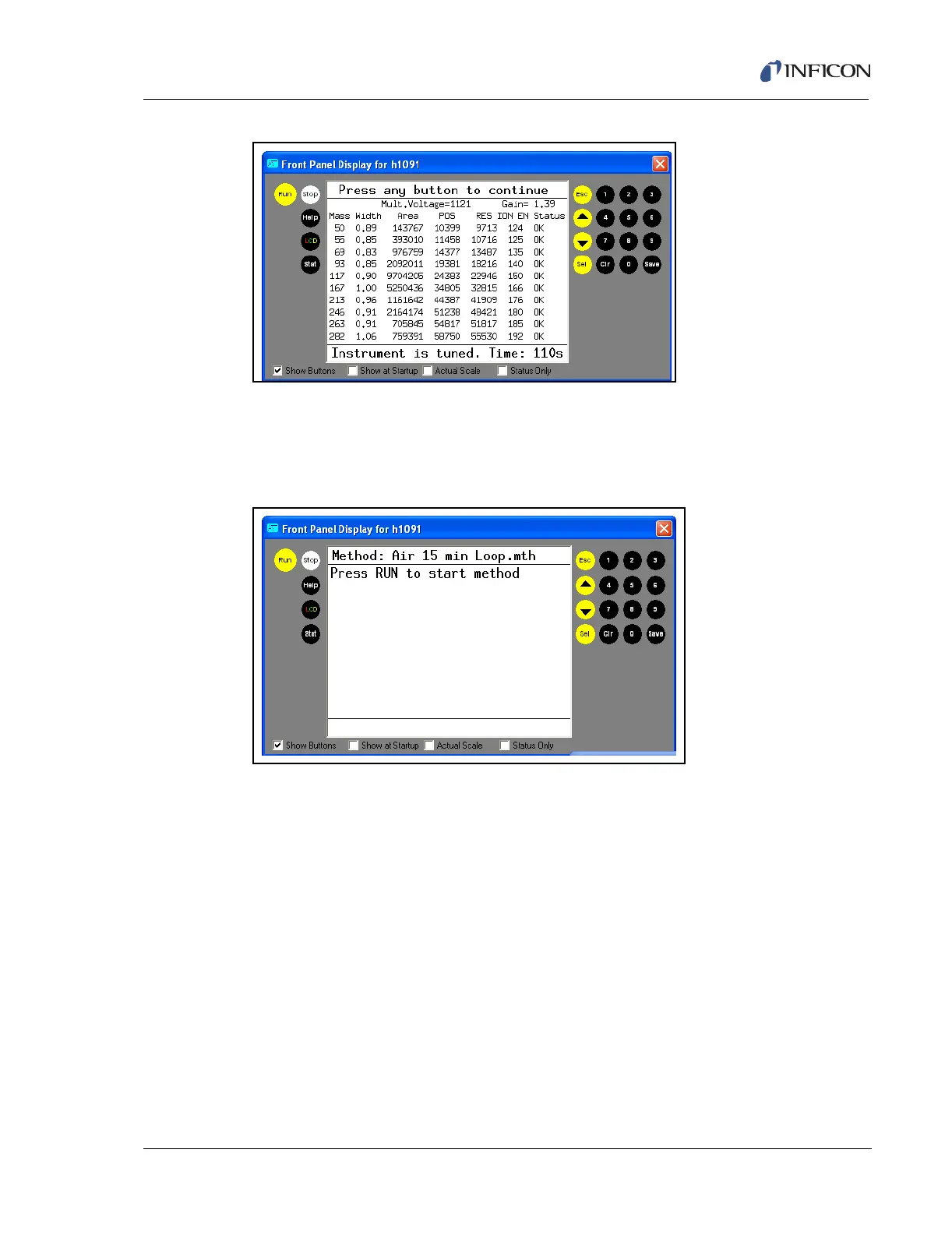

Figure 3-5 Autotune Results

5 When the warm-up is complete the start Method prompt will appear. Press RUN

when ready to sample. See Figure 3-6.

NOTE: Press ESC to not perform the method.

Figure 3-6 Method Ready to Run Screen
