3 WLAN Mode
3.11 Monitor Spectrum Measurement
Single window view of the graph.
Example
:DISP:MON:VIEW RTR
Dependencies This command is only available in the MSR, LTE-A FDD/TDD and 5G NR modes. In other Modes this is
the only View
3.11.2 Windows
This section describes the windows used in the Monitor Spectrum measurement.
3.11.2.1 Spectrum
In all modes except MSR, LTEAFDD/LTEATDD, and 5GNR, this is a single trace
window showing the spectrum.
In LTEAFDD/LTEATDD, MSR and 5GNR Modes, multi-carriers are supported. The
Carrier Attribute on/off and Sub-block Attribute on/off settings (under Display,
Meas Display) are defined to allow the carrier and sub-block legends to display.

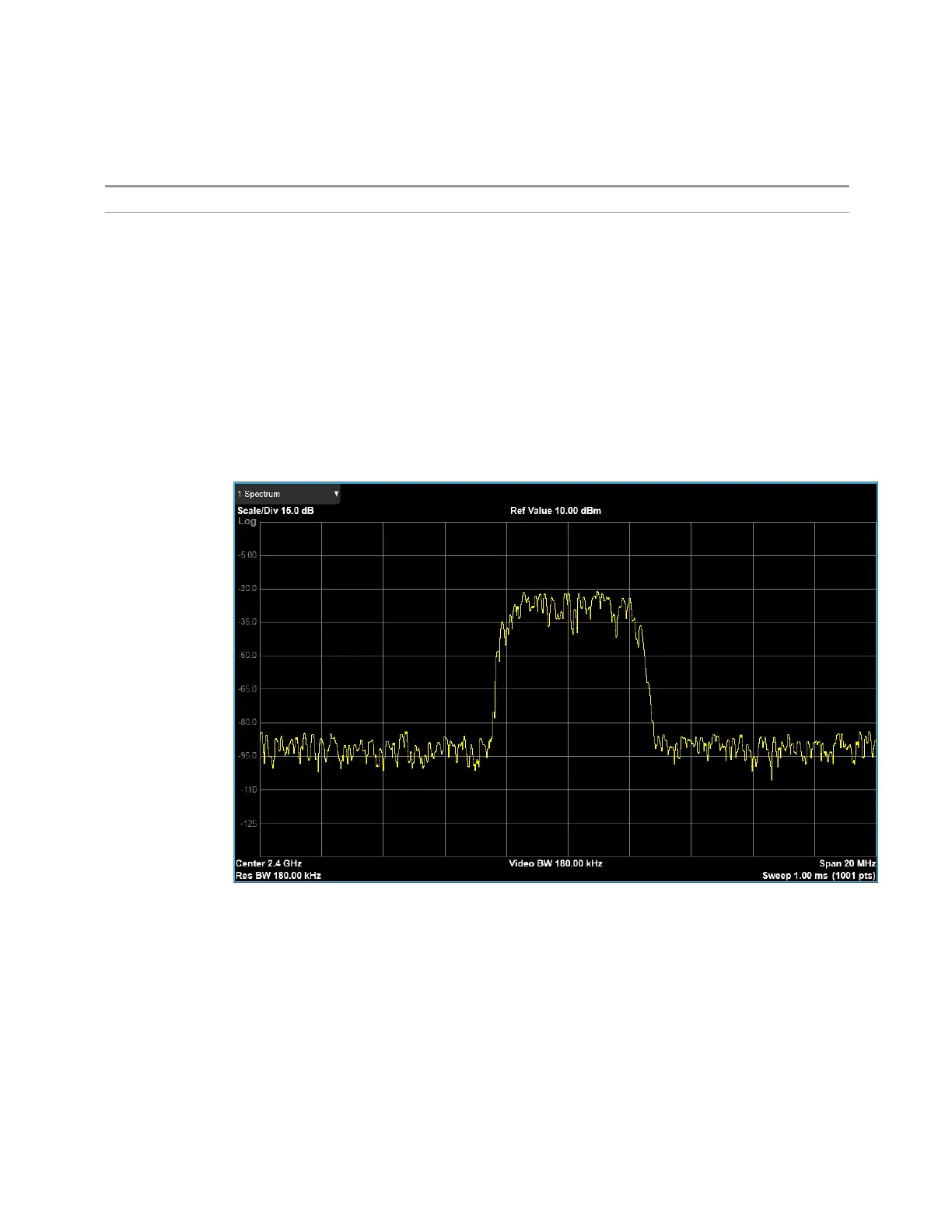

When the Carrier Attribute is on, the carrier identification and name are shown on
the spectrum trace:
