7 Save/Recall/Print
7.2 Recall
OddOrderOnly
NonlinearOrder
Modulo 2
CoeffsLength
True 0 NonlinearOrder * (MemoryOrder + 1) +
CrossTermOrder * K * K
True Not 0 NonlinearOrder * (MemoryOrder + 1) +
CrossTermOrder * K * (K - 1)
False All K * (MemoryOrder + 1) +
CrossTermOrder * K * (K - 1) / 2

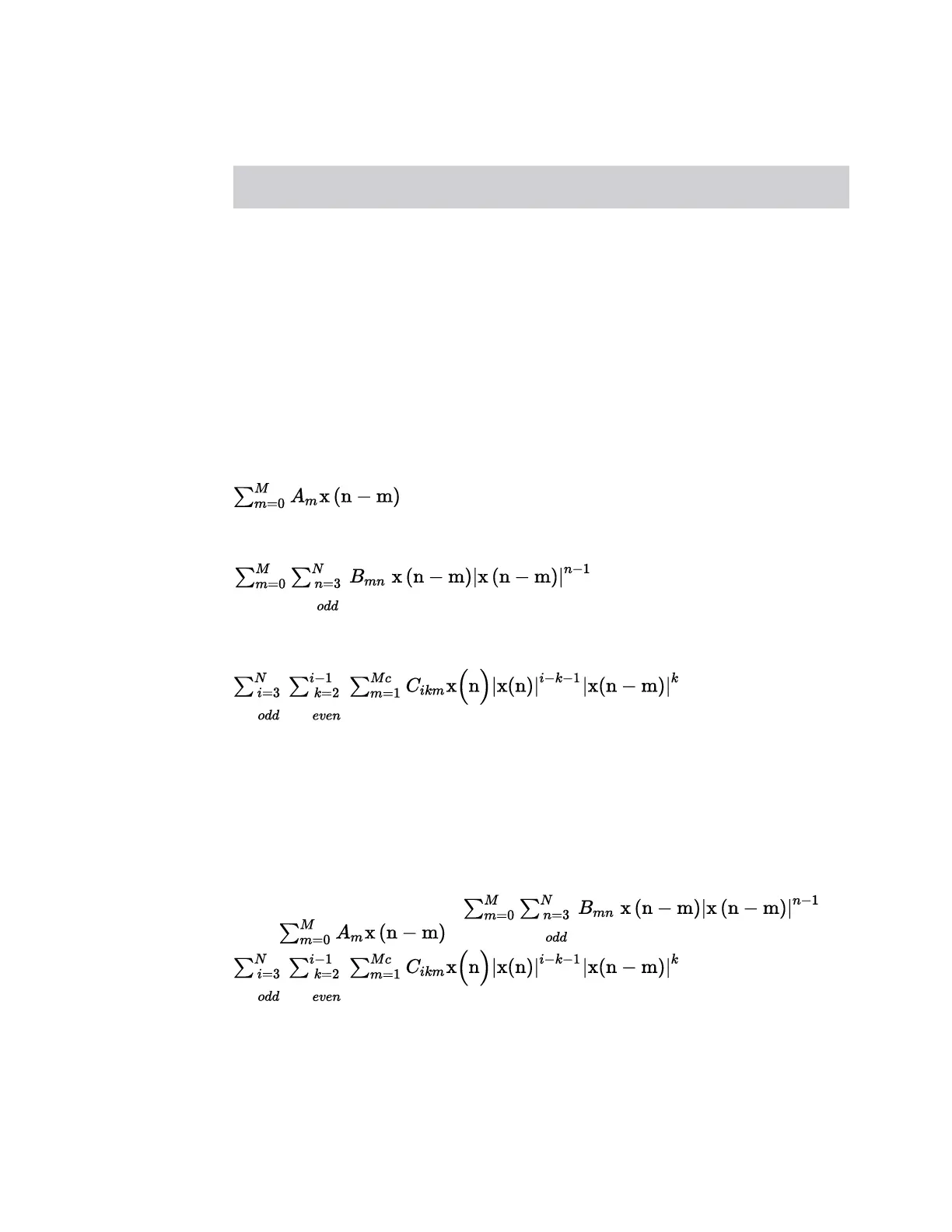

7.2.49 How to apply the coefficients to signal
The coefficient terms include three parts and x(n) is the signal
The first (M+1) terms are linear ones:
1.
The next [(N-1)/2*(M+1)] terms are nonlinear memory ones:
2.
Cross terms
N is nonlinear order (odd number), M is memory order, M
c
is cross term memory
order
According to the sample file above, N=9, M=4,Mc=2 and OddOrderOnly = True, the
length of coefficients = 45 including 5 for linear items and 20 nonlinear items and 20
cross items
The DPD model coefficients are as below:
Y(n) = + +
Y(n) is the predistorted signal, X(n) is the reference signal.
2378 WLAN Mode User's &Programmer's Reference
