3 WLAN Mode
3.4 SEM Measurement
Name Unit, if
any
Corresponding Results
determines whether the relative frequency or absolute frequency will
be displayed

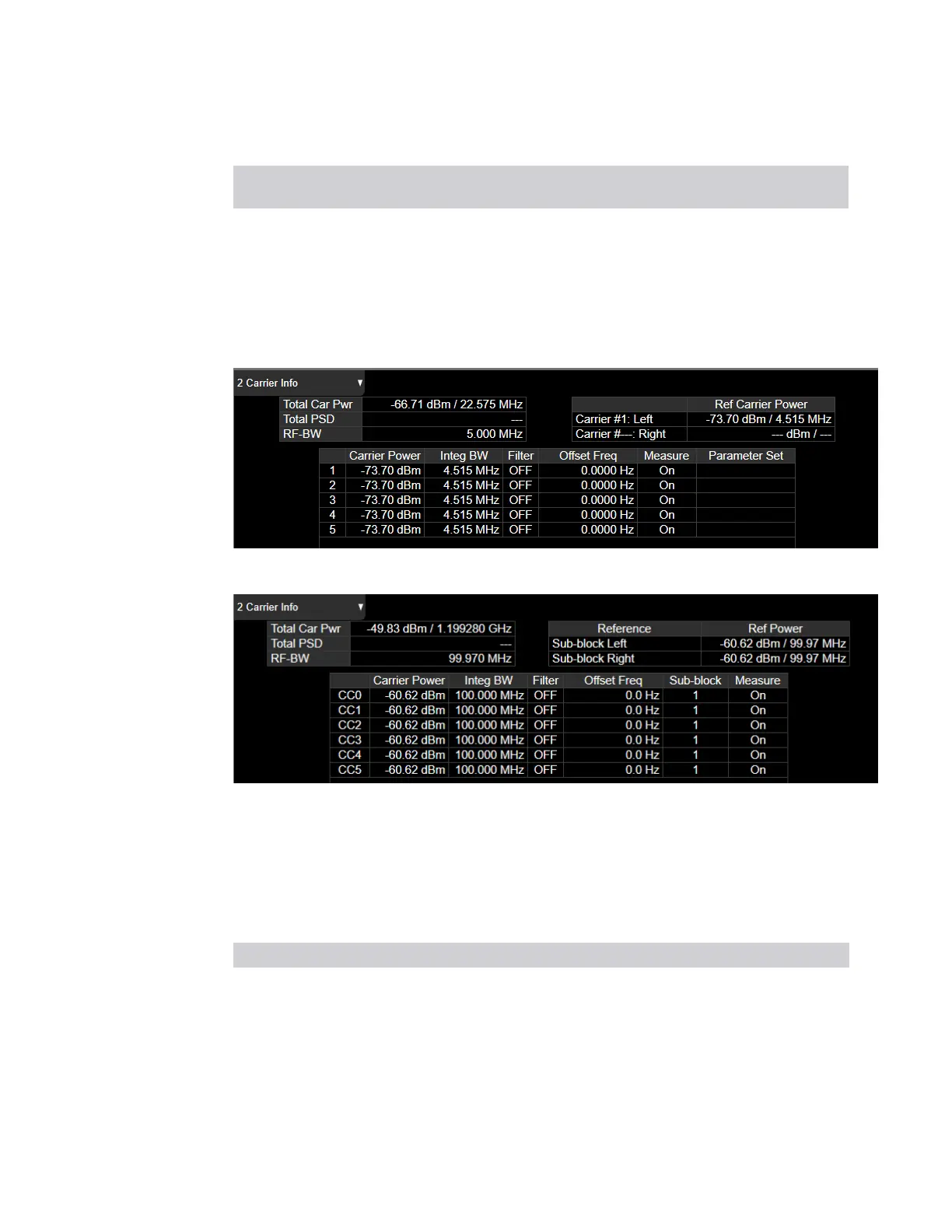

Sub-block Displays which sub-block the carrier belongs to in the intra-band
non-contiguous aggregation mode. The column will be displayed
when Carrier Allocation is Non-contiguous
Measure Indicates whether the carrier power is present or not
MSR
LTE-Advanced FDD/TDD and 5G NR
3.4.14.3 Gate
Allows you to see your Gating signal at the same time as the measured data. See the
description under "Gate View On/Off" on page 2494 in Trigger, Gate Settings.
Views in which the Gate window appears:
View Size Position
Gate View One third, full width Top
