3 WLAN Mode
3.7 WLAN MIMO Modulation Analysis Measurement
Option Max Digital IF BW
B4X 400 MHz
B8X 800 MHz
B12 1200 MHz
Center frequency limitation:
Center Frequency Max Digital IF BW
330 MHz ~ 380 MHz (CF – 330 MHz) * 2
380 MHz ~ 550 MHz 100 MHz
550 MHz ~ 1310 MHz 200 MHz
1310 MHz ~ 2000 MHz 600 MHz
2000 MHz ~ 12300 MHz 1200 MHz
12300 MHz ~ 12900 MHz (12900 MHz – CF) * 2
Auto Leveling

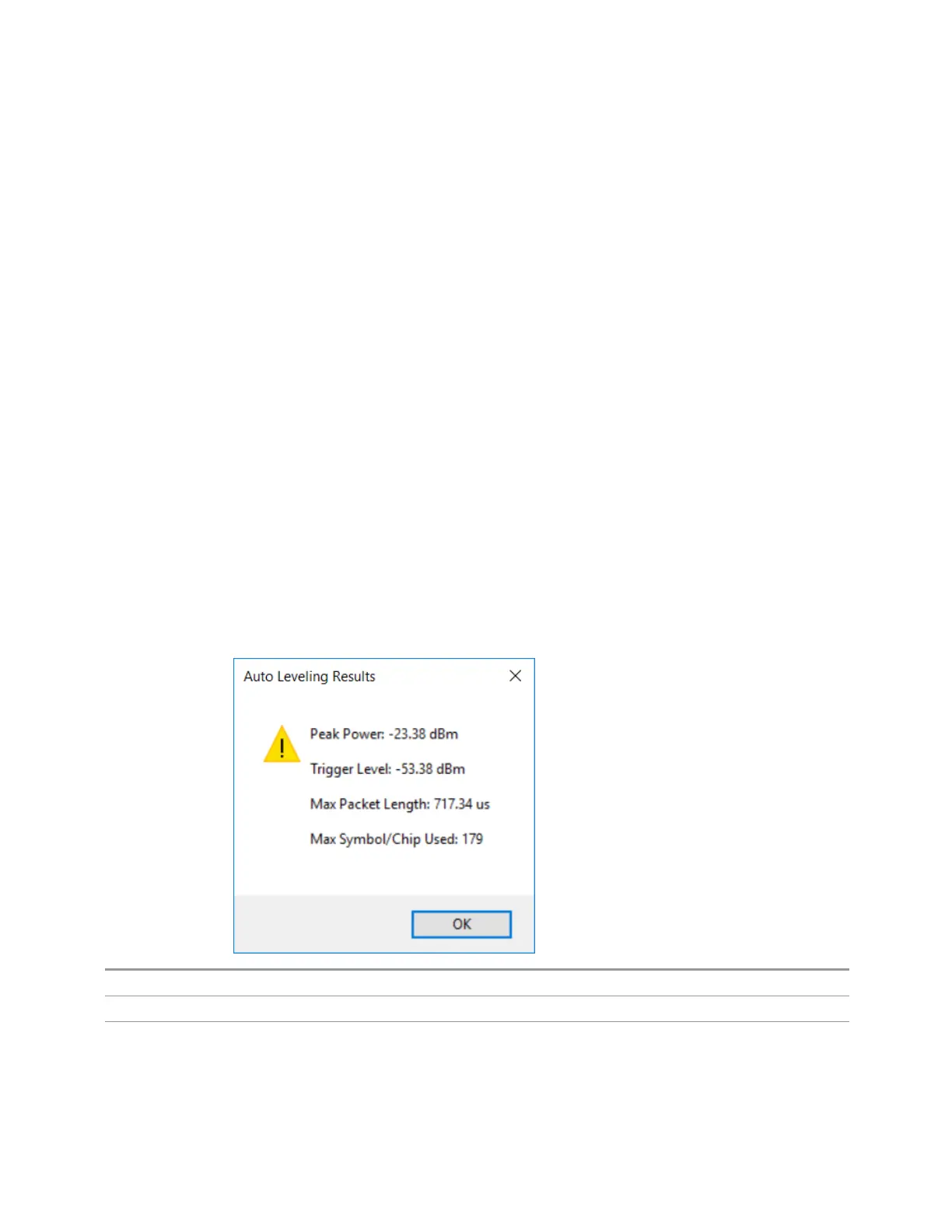

Performs auto-leveling for MIMO EVM measurements. A dialog box containing the
results of auto-leveling will show up after the process is done. When processing
auto-leveling by SCPI, the dialog box will not show up. You can query the result by
SCPI though, see "More Information" on page 1204.
Remote Command
CALCulate:EVMMimo:LEVel:AUTO
Example
:CALC:EVMM:LEV:AUTO
Dependencies Only appears in modular products, such as VXT model M9410A or E6630A
This control is enabled when radio device is not 802.11ac 80+80MHz and is grayed-out otherwise
1203 WLAN Mode User's &Programmer's Reference
