9 Programming the Instrument
9.4 Status Register System & STATus Subsystem
Has no effect on Event Registers, Error/Event QUEue, IEEE 488.2 ESE, and SRE
Registers, as described in: IEEE Standard 488.2–1992
Remote Command
:STATus:PRESet
Example
:STAT:PRES

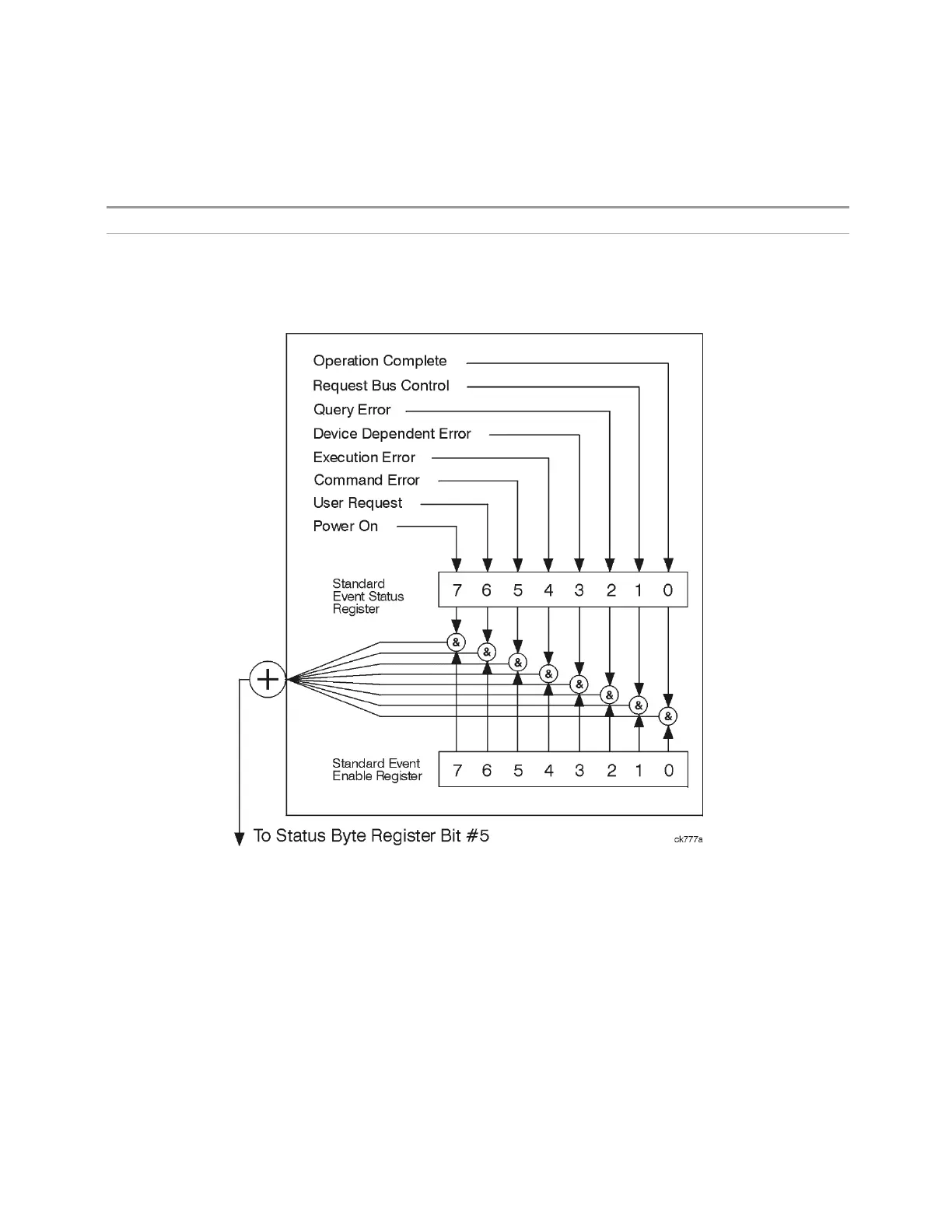

9.4.6.2 Standard Event Status Register
The standard event status register contains the following bits:
WLAN Mode User's &Programmer's Reference 2600
To Next Page
