3 WLAN Mode
3.4 SEM Measurement
Name
(Measurement
Type)
Unit, if any Corresponding Results
Lower Δ Lim dB Minimum margin from limit line which is decided by Fail
Mask setting on the negative offset
Lower Integ (Total
Power Ref)
dBm Absolute integrated power on the negative offset
Lower (PSD Ref) dBm/Hz Absolute power spectrum density of the negative offset
Lower Peak
(Spectrum Pk Ref)
dBm Absolute peak power on minimum margin point of the
negative offset
Upper Integ (Total
Power Ref)
dBc Relative integrated power on the positive offset
Upper (PSD Ref) dB Relative power spectrum density of the positive offset
Upper Peak
(Spectrum Pk Ref)
dB Relative peak power on minimum margin point of the
positive offset
Upper Δ Lim dB Minimum margin from limit line which is decided by Fail
Mask setting on the positive offset
Upper Integ (Total
Power Ref
dBm Absolute integrated power on the positive offset
Upper (PSD Ref) dBm/Hz Absolute power spectrum density of the positive offset
Upper Peak
(Spectrum Pk Ref)
dBm Absolute peak power on minimum margin point of the
positive offset

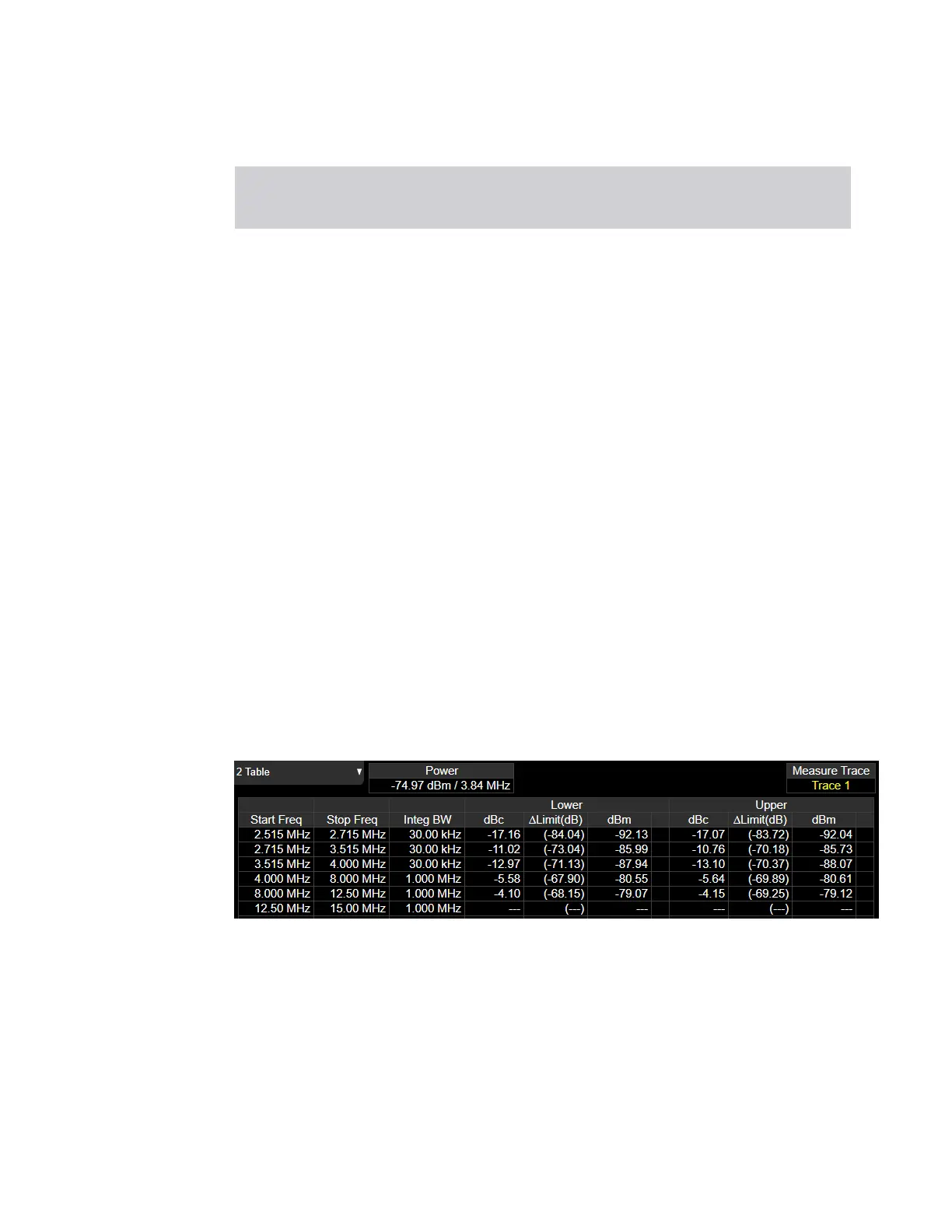

When Measurement Type is Total Power Ref:
Modes other than MSR, LTE-Advanced FDD/TDD and 5G NR
MSR, LTE-Advanced FDD/TDD and 5G NR
WLAN Mode User's &Programmer's Reference 488
