For this application, an encoder is used for speed measuring and position detection.
The printout is carried out each meter and shows the current number of meters.
Additionally a length measuring system has to provide a PrintGo signal after each meter.
These settings for the so called “meter counter” are shown in
Picture 5.
Picture 5 - Print parameter for Meter-Go function

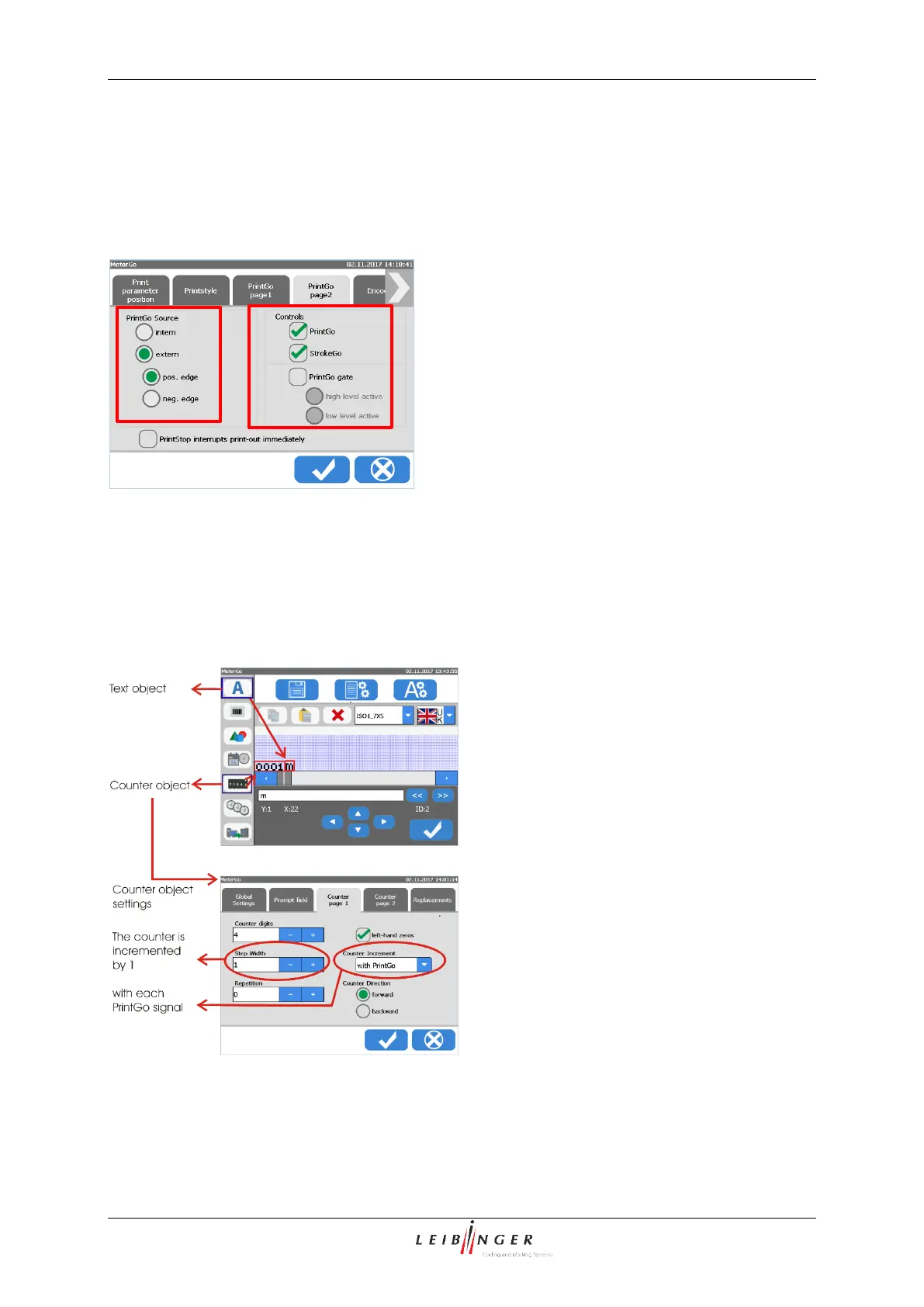

Picture 6 shows the JET2neo editor with the counter object and the settings for the counter
object in this example. The text object for the letter “m” is just a standard object without any
special settings for this example.
Picture 6- Settings of the counter object
