Configuring the Output Signal Level
With the solder jumper field A on the lower side of
the RTC6 Ethernet Board, the level of all output
signals at the EXTENSION 1 socket connector
(DIGITAL OUT 0…DIGITAL OUT 15, LATCH_OUT,
SYNC_OUT, BUSY OUT, VCC_OUT) can be configured
for 5 V or 3.3 V, see Chapter 2.7.1
”Solder Jumper Field A – Configuring Output Signal
Level at EXTENSION 1 Socket Connector”, page 41.
The configured signal level is stationary outputted at
pin (35): signal VCC_OUT. VCC_OUT is referenced to
GND, see Notes, page 882.
The maximum current load of the signal is 100 mA.
16-Bit Digital Output Port and 16-Bit Digital
Input Port
As with RTC6 PCIe Board, see Section ”16-Bit Digital
Input Port and 16-Bit Digital Output Port”, page 78.
The signals are referenced to GND, see Notes,
page 882.
Synchronization of Data Acquisition
As with RTC6 PCIe Board, see Section
”Synchronization of Data Acquisition”, page 79.
The signals are referenced to GND, see Notes,
page 882.
BUSY List Execution Status
The BUSY OUT signal at pin (36) is identical to the
BUSY OUT signal at the LASER socket connector, see
Chapter 16.2.4 ”LASER Socket Connector”,
page 882.
The signal is referenced to GND, see Notes, page 882.
16.2.12EXT. 2 Socket Connector
The EXT. 2 socket connector has 10 pins. It is located
on the upper side of the RTC6 PCIe Board, see
Figure 72, number 8.
It provides a buffered 8-bit digital output port
((DATA0…DATA7).

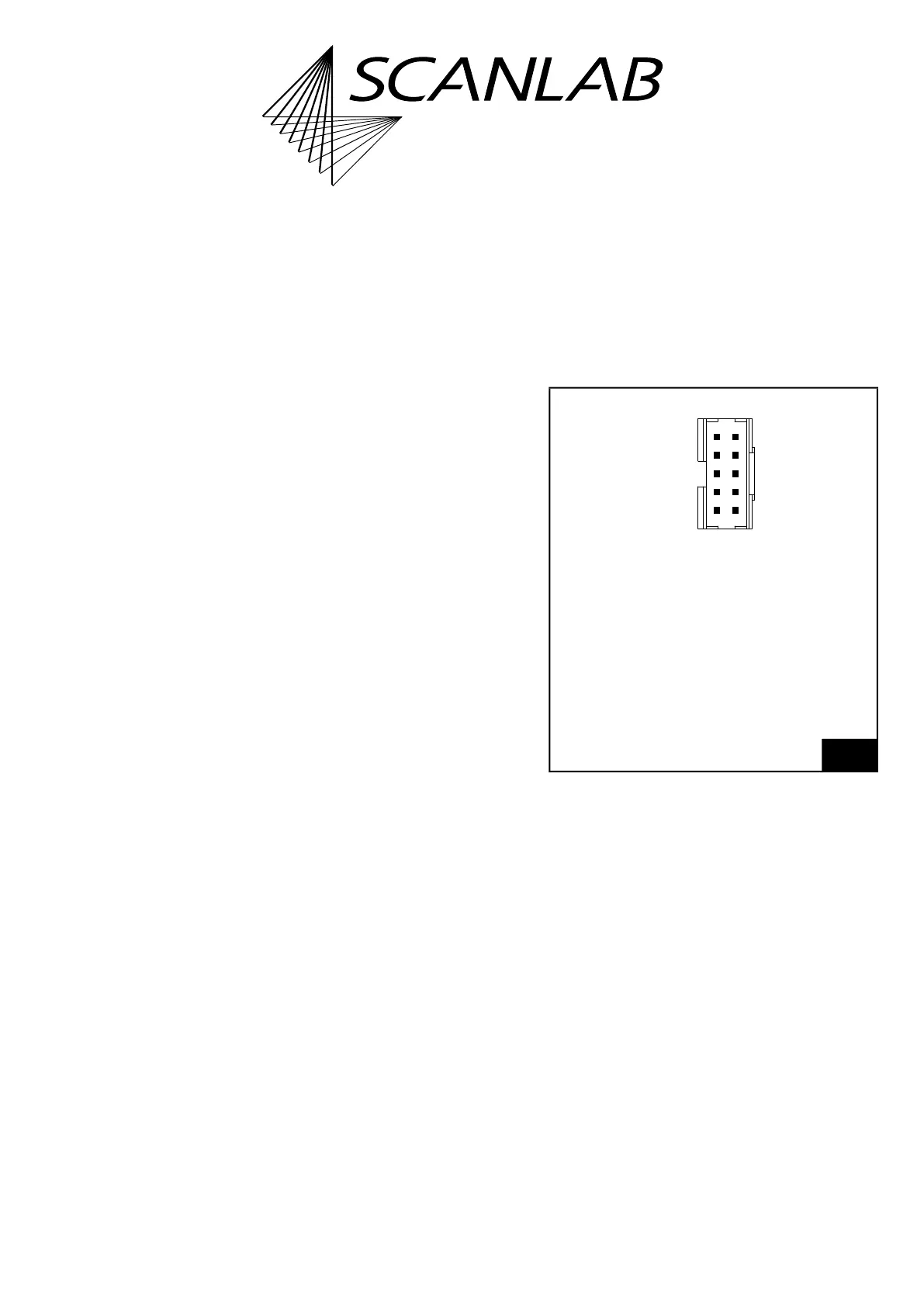

The pin-out is shown in Figure 24.
On RTC6 PCIe Boards the designation is
EXTENSION 2.
Apart from the total number of pins, the provided
signals differ as well as the pin numbers, see
following table.
86
EXT. 2 socket connector: pin-out. The pitch of the pins is
2.00 mm.
** Jumper setting-dependent:
+5V or DATA7 or GND or LATCH.
* Jumper setting-dependent:
+5V or DATA7 or GND.
Manufacturer: Amphenol FCI.
Product Number: 98424-F52-10LF.
21
(LSB) DATA0 (01) (02) DATA1
DATA2 (03) (04) DATA3
DATA4 (05) (06) DATA5
DATA6 (07) (08) *
** (09) (10) GND
