122

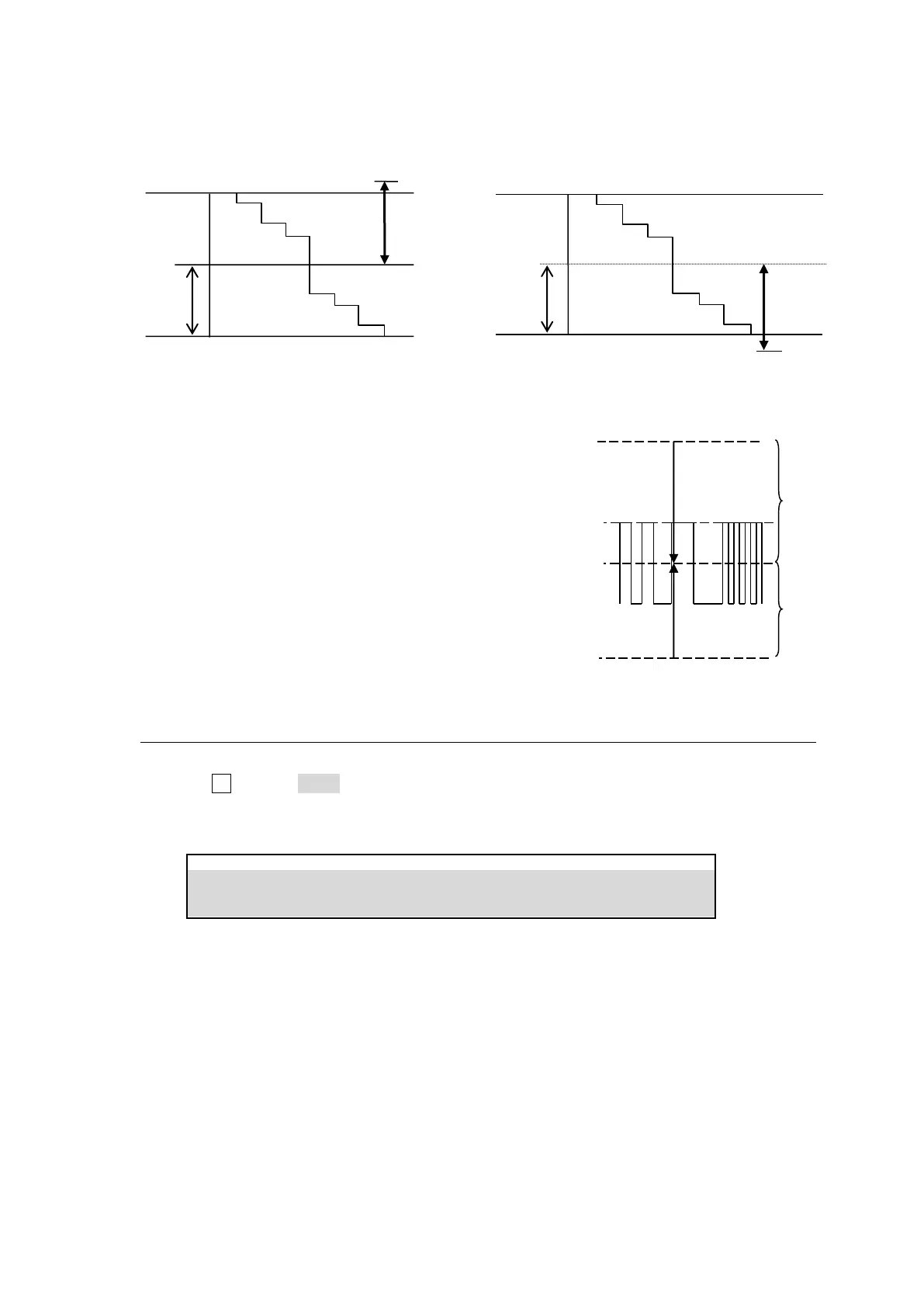

RGB Clip Adjustment
300%
100%
-200%
0%
50%
White Clip
level
range
Black Clip
level
range
Y/C mode
RGB mode
Once "RGB" mode is selected for clips, YPbPr input
signals are converted to RGB signals in the switcher. The
converted RGB signals are processed so as not to exceed
the RGB gamut range set per RGB White and Black Clip
menu parameters.
The processed RGB signals are then converted again to
YPbPr format. This correction is used to eliminate out-of
RGB gamut problems.
16-4. Resetting a Color Corrector Channel
(1) Open [SETUP > COLOR CORRECT > CC1] menu PAGE 7.
(2) Turn F1 to select EXEC.
(3) Tap YES in the confirmation dialog. Color Corrector Channel Settings are reset excluding
SIGNAL and ENABLE items.
SETUP > COLOR CORRECT > CC1
7/7
CURRENT
INIT
EXEC
100% color bars when 100% white
109%
100%
50%
50%
0%
Y White
Clip level
range
Y White Clip
Adjustable Range 50 to 109%
Default setting: 109%
Y Black Clip
Adjustable range: -7 to 50%
Default setting: -7%)
100% color bars when 0% Black
100%
50%
Y Black
Clip level
range
0%
50%
