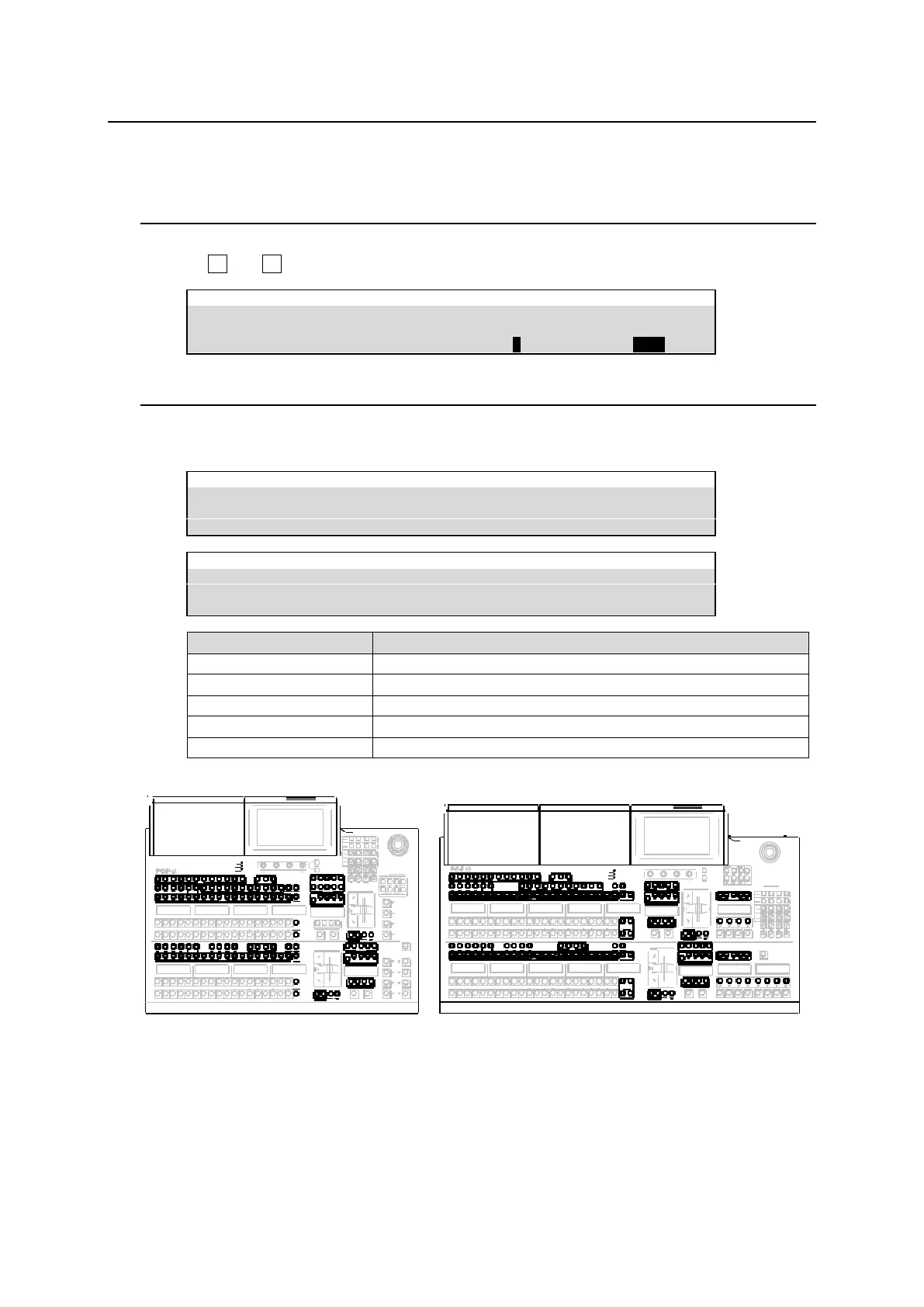

24. Control Panel Setup
For bus button assignments, refer to Sec. 6-2. “Mapping Video Sources to Bus Buttons.”
For control panel connection, refer to Sec. 4. “Switcher System Configuration.”
24-1. Buzzer
(1) Open the [PANEL > UTILITY > UTILITY] menu.
(2) Use F3 and F4 to adjust buzzer volume and tone.
PANEL > UTILITY > UTILITY
1/3
RENC TYPE
RENC SPEED
BUZZER
BUZZER TONE
VOLUME
NORMAL
NORMAL
0
LOW
24-2. Brightness
(1) Open [PANEL > UTILITY > UTILITY] menu PAGE 2.
(2) Adjust brightness of the panel, buttons and display.
PANEL > UTILITY > UTILITY
2/3
PANEL
OLED
DISPLAY
HALF LED
BRIGHTNESS
BRIGHTNESS
BRIGHTNESS
0
0
0
OFF
PANEL > UTILITY > UTILITY
3/3
LOCK MODE
THUMBNAIL
MENU
KEY BUS
SHORTCUT
SELECT LINK
WAVE
MANUAL
OFF
OFF
Parameter
Description
PANEL BRIGHTNESS
Brightness setting for control panel buttons
OLED BRIGHTNESS
Brightness setting for displays on M/E bus blocks.
DISPLAY BRIGHTNESS
Brightness settings for the menu screen
HALF LED
Half lighting ON/OFF for the buttons shown in the drawings below.
LOCK MODE
Lighting setting in Lock mode.
HVS-492OU HVS-492WOU
