80

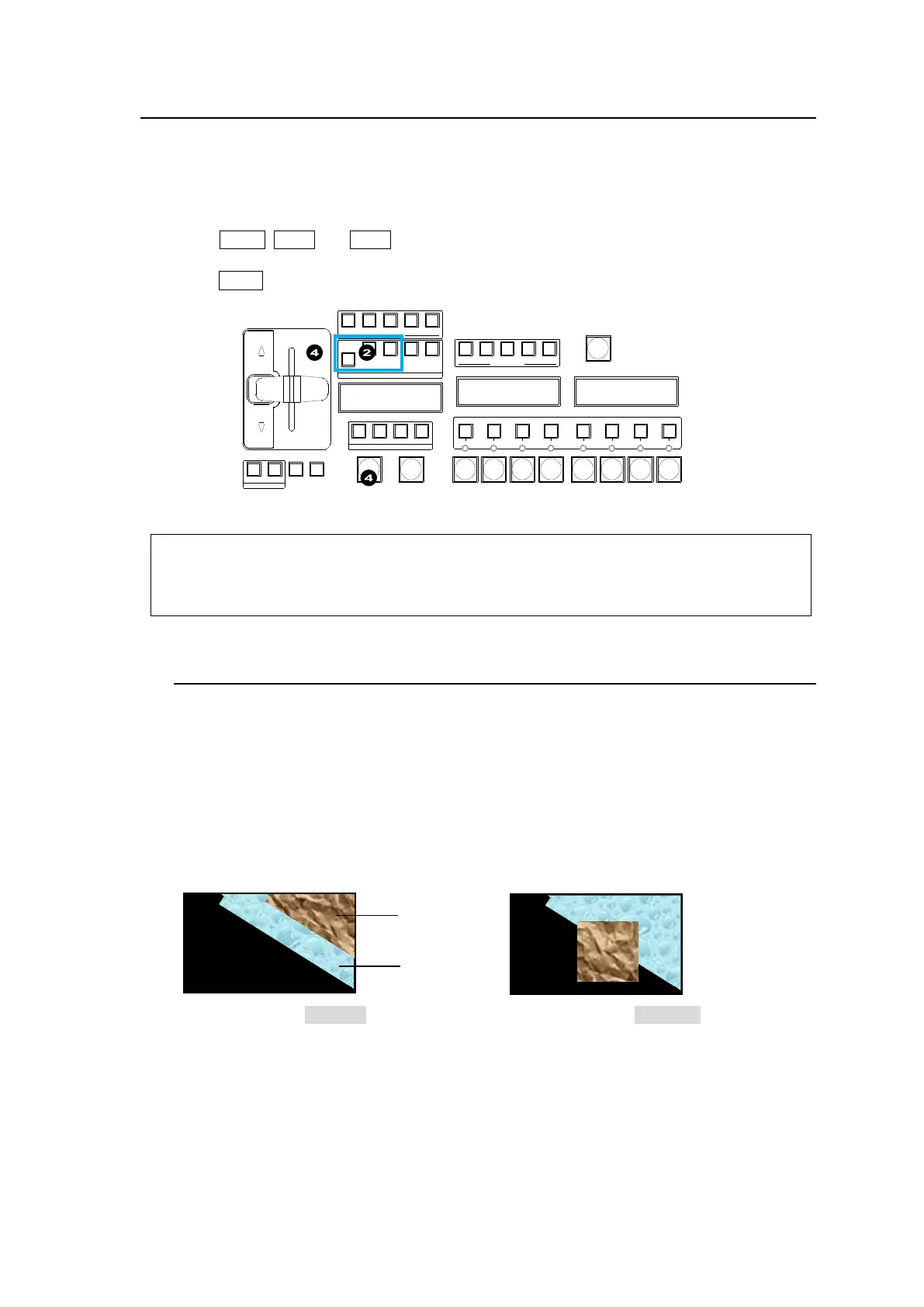

11-5. Simultaneous BKGD and Key Transitions
Background and key transitions can be performed simultaneously. This chapter explains how to
perform simultaneous BKGD, KEY1 and KEY2 transitions as an example.
(1) Set transition types for the background, KEY1 and KEY2 to MIX or WIPE respectively. Select a
pattern using the menu if set to WIPE. (See the note below.)
(2) Press BKGD, KEY1 and KEY2 simultaneously to light up the buttons.
(3) Set the transition rate or direction, if necessary.
(4) Press AUTO, or move the fader lever to perform a simultaneous transition.
BLACK
TRANS
16 17 18 19 20
USER BUTTON
ON AIR
DVE DVE DVE DVE DVE DVE DVE DVE
KEY1 KEY2 KEY3 KEY4
FLX1 FLX2 FLX3 FLX4
USER BUTTON
11 12 13 14 15
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
WIPE or DVE Pattern Use Limitations
LINE DVE and DVE patterns (No. 100 and later) cannot be used simultaneously on a bus.
In 1080/59.94p or 50p mode, up to 8 channels of DVE patterns (No.100 or later) can be used
simultaneously.
See Sec. 11-7. “Pattern (WIPE/DVE) Transitions” for details on transition settings.
11-5-1. PRE COMBINER
Although BKGD and KEY transitions can be simultaneously performed, they are handled
independently and their transition patterns can differ from each other. If PRE COMBINER is
enabled, however, all transitions are done together like a single image using the BKGD
transition type. It is very effective for using DVE transitions. See Sec, 11-5. “Simultaneous
BKGD and Key Transitions” for more details.
PRE COMBINER can be enabled in the [SETUP > PRE COMBINER] menu.
Ex.) Simultaneous transition of BKGD(Pattern 128) and KEY1 (Pattern 0)
PRE COMBINER: ENABLE PRE COMBINER: DISABLE
To Next Page
