FOR-A HVS-490 User Manual

79

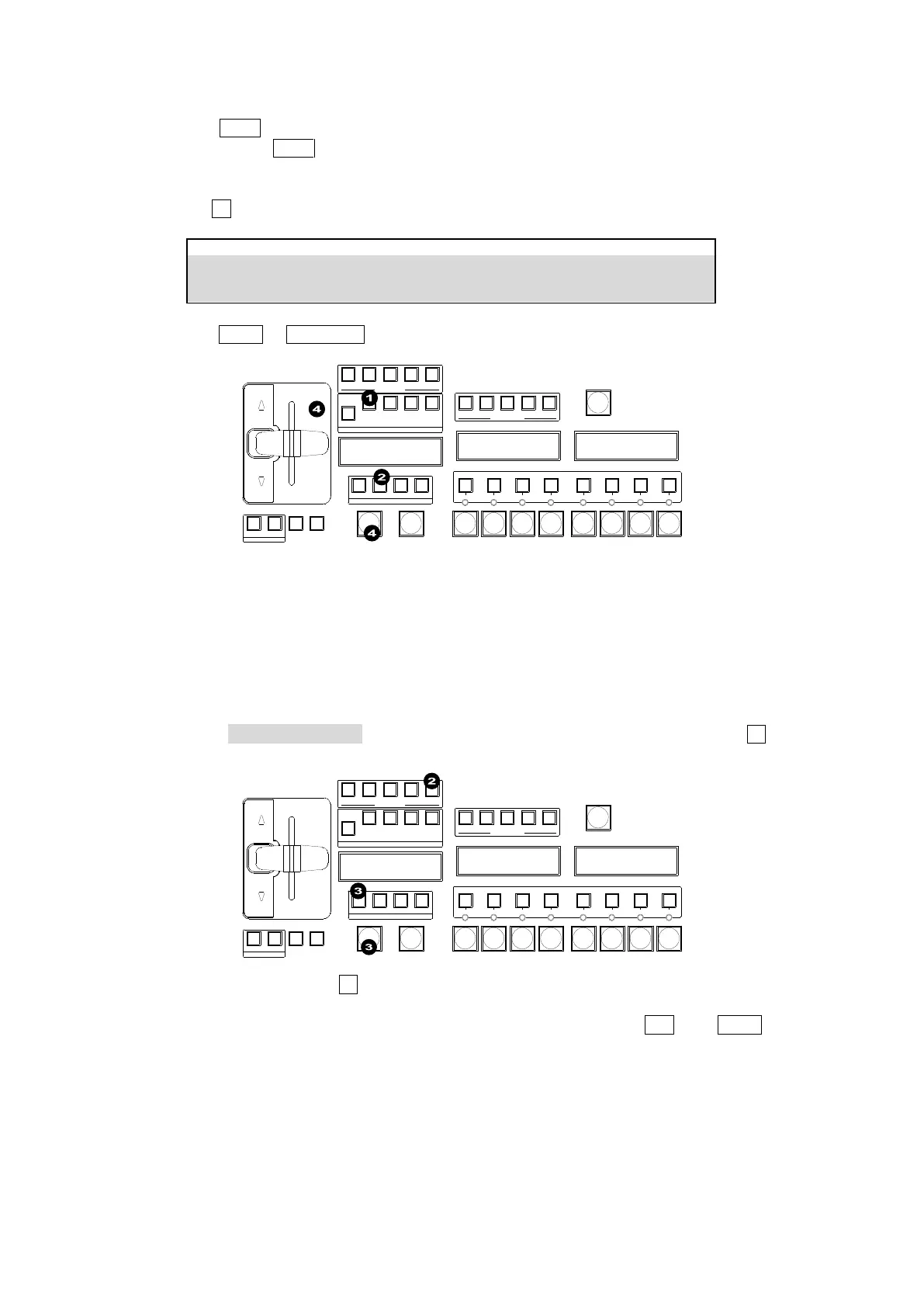

 Pattern transition
(1) Press KEY1 in the TRANSITION block.
(2) Quickly press WIPE twice in the TRANSITION TYPE block.
WIPE will light up and the [M/E FLEXaKEY > M/E1 > KEY1 > TRANS > TRANS] menu will
appear.
(3) Turn F4 to select a pattern.
M/E FLEXaKEY > M/E1 > KEY1 > TRANS > TRANS
1/1
TRANS RATE
FADER LIMIT
FADER LEVEL
PATTERN NO.
30
OFF
0.0
(4) Press AUTO or KEY AUTO, or move the fader lever to perform the pattern transition.
BLACK
TRANS
16 17 18 19 20
USER BUTTON
ON AIR
DVE DVE DVE DVE DVE DVE DVE DVE
KEY1 KEY2 KEY3 KEY4
FLX1 FLX2 FLX3 FLX4
USER BUTTON
11 12 13 14 15
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
► See Sec. 11-7. “Pattern (WIPE/DVE) Transitions.”
► See Sec. 11-12-1. “Transition Rate.”
► See Sec. 11-12-2. “Fader Limit.”
 FLEXaKEY Transition (If output target is set to M/E1 or 2)
Only CUT and MIX are available for FLEXaKEY transitions. FLEXaKEY transitions are explained
here using an example where FLEXaKEY3 is set to output from M/E2.
(1) Assign FLEXaKEY3 NEXT to a USER button on M/E2 (LINE2), USER BUTTON 15 in this
example. (See Sec. 24-3. “USER Button.”)
BLACK
TRANS
16 17 18 19 20
USER BUTTON
ON AIR
DVE DVE DVE DVE DVE DVE DVE DVE
KEY1 KEY2 KEY3 KEY4
FLX1 FLX2 FLX3 FLX4
USER BUTTON
11 12 13 14 15
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
(2) Press USER BUTTON 15. The button will turn on and FLEXaKEY3 is assigned to the next
transition.
(3) Then, perform a transition in the same manner as other keys. Press MIX, then AUTO to fade
in the key on the PGM image.
