HVS-492ROU
24-3. USER Button
User buttons can be assigned to specific menu pages and used as shortcuts or specific function
buttons.

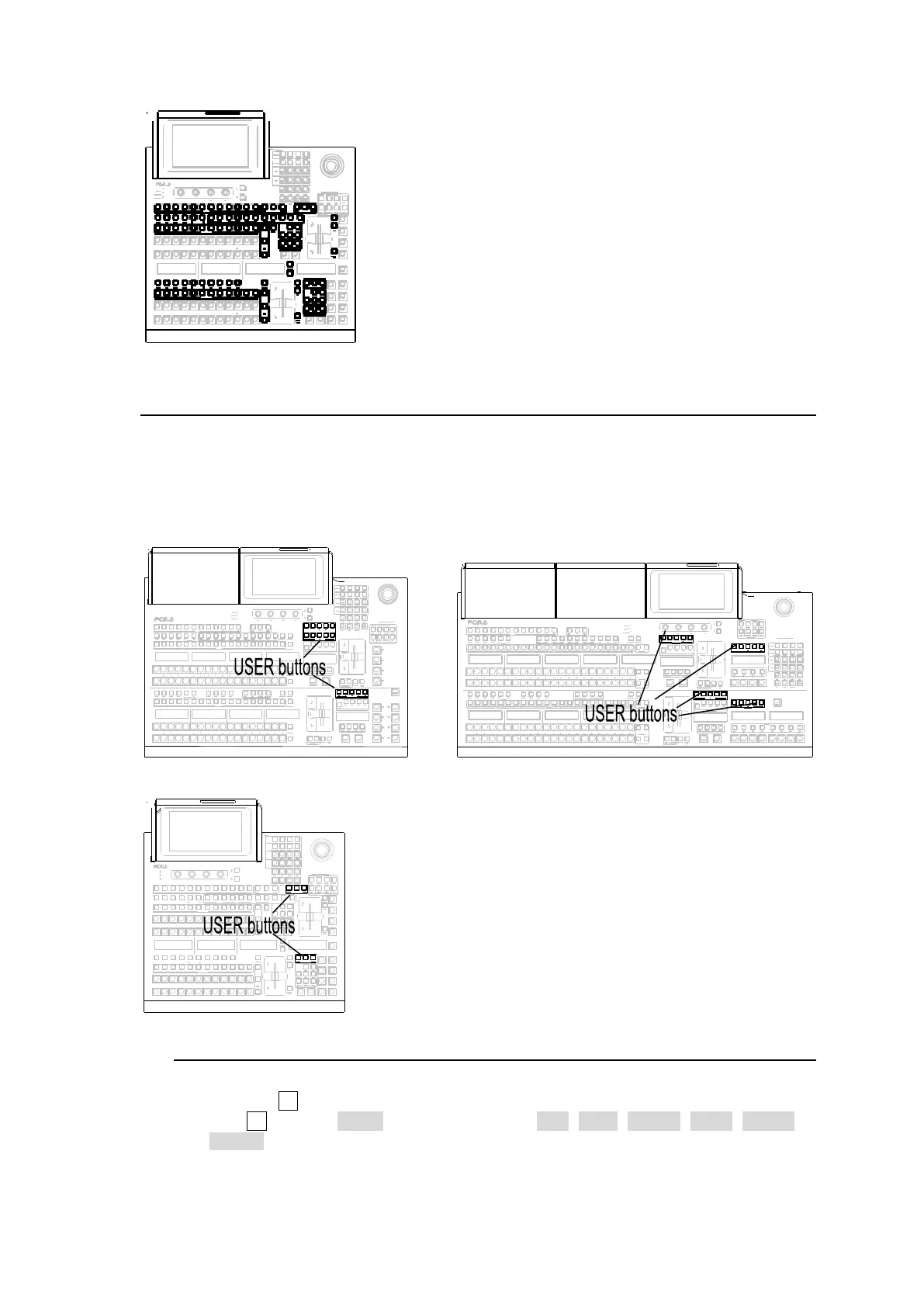

The following 15 user buttons on HVS-492OU, 20 on HVS-492WOU and 6 on HVS-492ROU are
available.
HVS-492OU HVS-492WOU
4 5 6
2 3
7 8 9
7 8 9
4 5 6
2 3
HVS-492ROU
ALARM
POWER 1
POWER 2
F1 F2 F3 F4
PAGE
1 2 3 4 5 6 7 8 9 10 11 12
KEY1 KEY2 KEY3 KEY4
AUX
UTILITY
1 2
PGM OUT1 OUT2 OUT3 P GM OUT1
M/E 1 M/E2
OUT2 OUT3 MV1 MV2 MV3
AUX TRANS ITION
CUT MIX WIPE
KEY1 KEY2 KEY3 KEY4 1 2 FLX1 FLX 2 FLX3 FLX4
TRANSITION TYPE
AUTO CUT
KEY4
FLX4
KEY3 FLX3
KEY2 FLX2
KEY1 FLX1
BLACK
TRANS
KEY4
KEY3
KEY2
KEY1
TRANSITION TYPE
AUTO CUT
JOYSTICK
M/E 2
ENTERCLEAR
0
+ / -
1 2 3
4 5 6
DEC
SD CARD
CONTROL
MEMORY
M/E 1
INC
7 8 9
UTILITY
KEY/FLX
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
KEY AUX
USER BUTTON
1 2 3
USER BUTTON
4 5 6
24-3-1. Assigning Pages or Functions to USER Buttons
(1) Open the [PANEL > USER BUTTON > USER BUTTON] menu.
(2) Turn F1 to select a USER button for use.
(3) Turn F2 to select MENU or the function type (AUX, GPIO, KEYER, STILL, EVENT or
OTHER).
