FOR-A HVS-490 User Manual

83
11-8. Direct Pattern Function
The Direct Pattern Selection feature uses the number buttons (0-9) on the MEMORY block, to
which patterns (WIPE or DVE type) previously registered can be recalled at the touch of a button.
Up to 20 patterns can be registered. Pattern modification data can be added to direct patterns. The
feature is useful for assigning frequently used patterns to number buttons. This chapter explains
how to save, recall and clear direct patterns.
11-8-1. Registering Direct Patterns
DIRECT PATTERN data is copied from BKGD or KEY pattern buffers, so that modification
information stored in buffers can be copied to DIRECT Patterns. The following example saves
Pattern 120 for M/E2 BKGD to DIRECT PATTERN 10.
 Selecting Pattern 120 for M/E2 BKGD
(1) Quickly press BKGD twice in the M/E2 TRANSITION block to open the [M/E FLEXaKEY
> M/E2 > BKGD PGM > TRANS > TRANS] menu.
(2) Turn F4 to select Pattern 120.
(3) Modify the pattern, if necessary. (See Sec. 11-9. "Modifying Patterns.")
 Saving Pattern 120 to DIRECT PATTERN 10

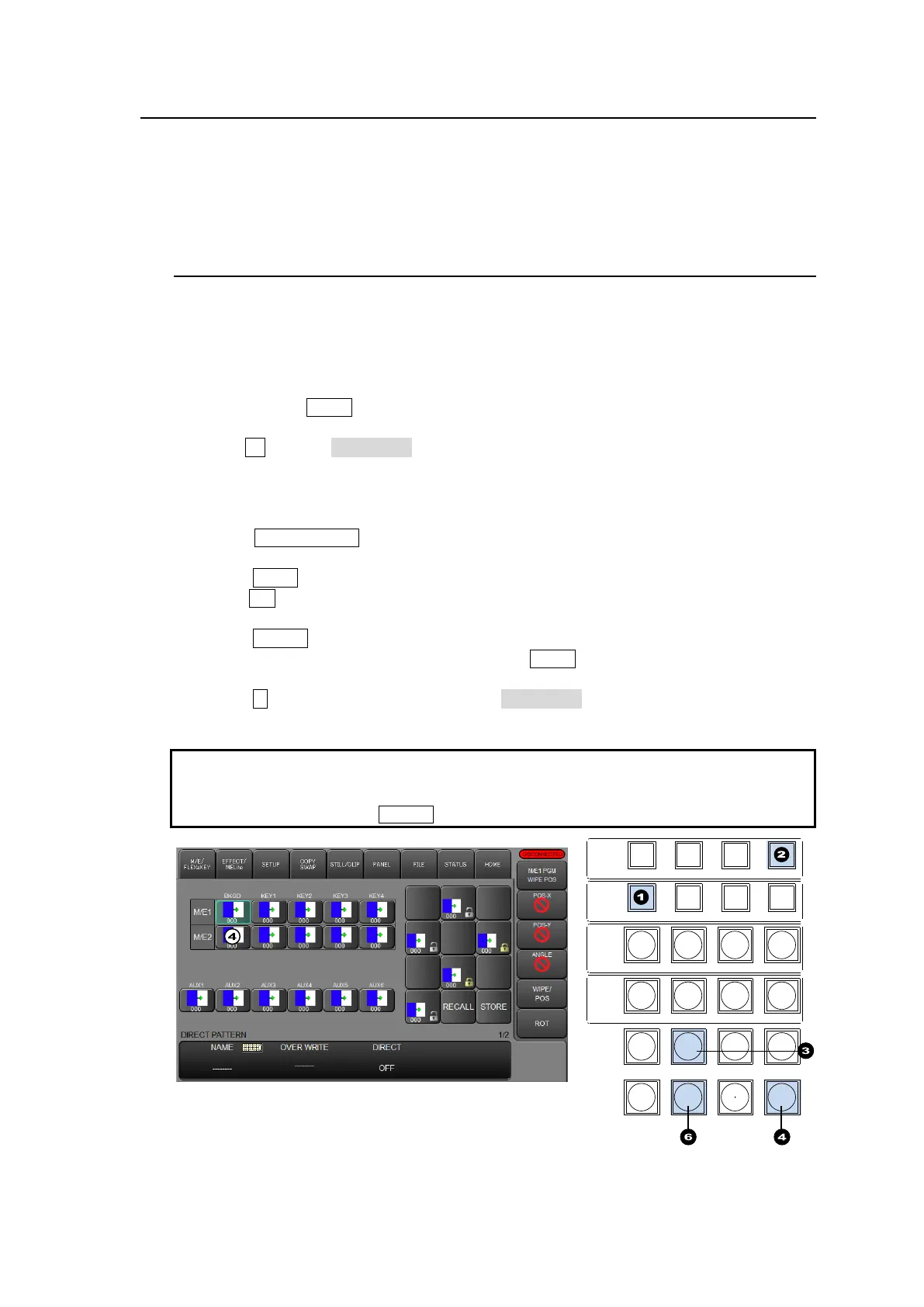

(1) Press DIRECT PATT in the MEMORY block. The [DIRECT PATTERN] menu appears
and the multi-pad changes to DIRECT PATTERN mode.
(2) Press PAGE in the CONTROL block.
(3) Press 1 to select PAGE1. (PAGE0 contains DIRECT PATTERN 0-9 and PAGE1
DIRECT PATTERN 10-19.)
(4) Press STORE in the keypad.
(5) Tap M/E2 BKGD on the menu screen, or press BKGD in the M/E2 TRANSITION block on
the control panel.
(6) Press 0 in the keypad to save BKGD and Pattern 120 to DIRECT PATTERN10.
NOTE
Once the keypad changes to DIRECT PATTERN mode, the number buttons onto which
patterns are already saved light up. If a user presses a lit button to save a pattern, the number
button will blink. To overwrite the pattern, press the number button again. (To cancel the
overwriting procedure, press STORE.)
CONTROL
MEMORY
M/E1
M/E2
MENU LOCK KEY PRI PAGE
DIRECT PATT MACRO EVENT SEQUENCE
INC
DEC
7 8 9
4 5 6
1 2 3
0
RECALL STORE
ENTER
CLEAR
+ / -
CK WIPE SUB EFF
FLX4FLX3FLX2FLX1
KEY1 KEY2 KEY3 KEY4
KEY1 KEY2 KEY3 KEY4
