LINE 1 is assigned to M/E1 and LINE 2 to M/E2 as factory default. These assignments, however,
can be changed.
To Lock the Control Panel
Pressing the LOCK button in the CONTROL block disables the control panel operation and GUI
control, except the LOCK button.
To unlock the control panel and GUI, press and hold down LOCK.

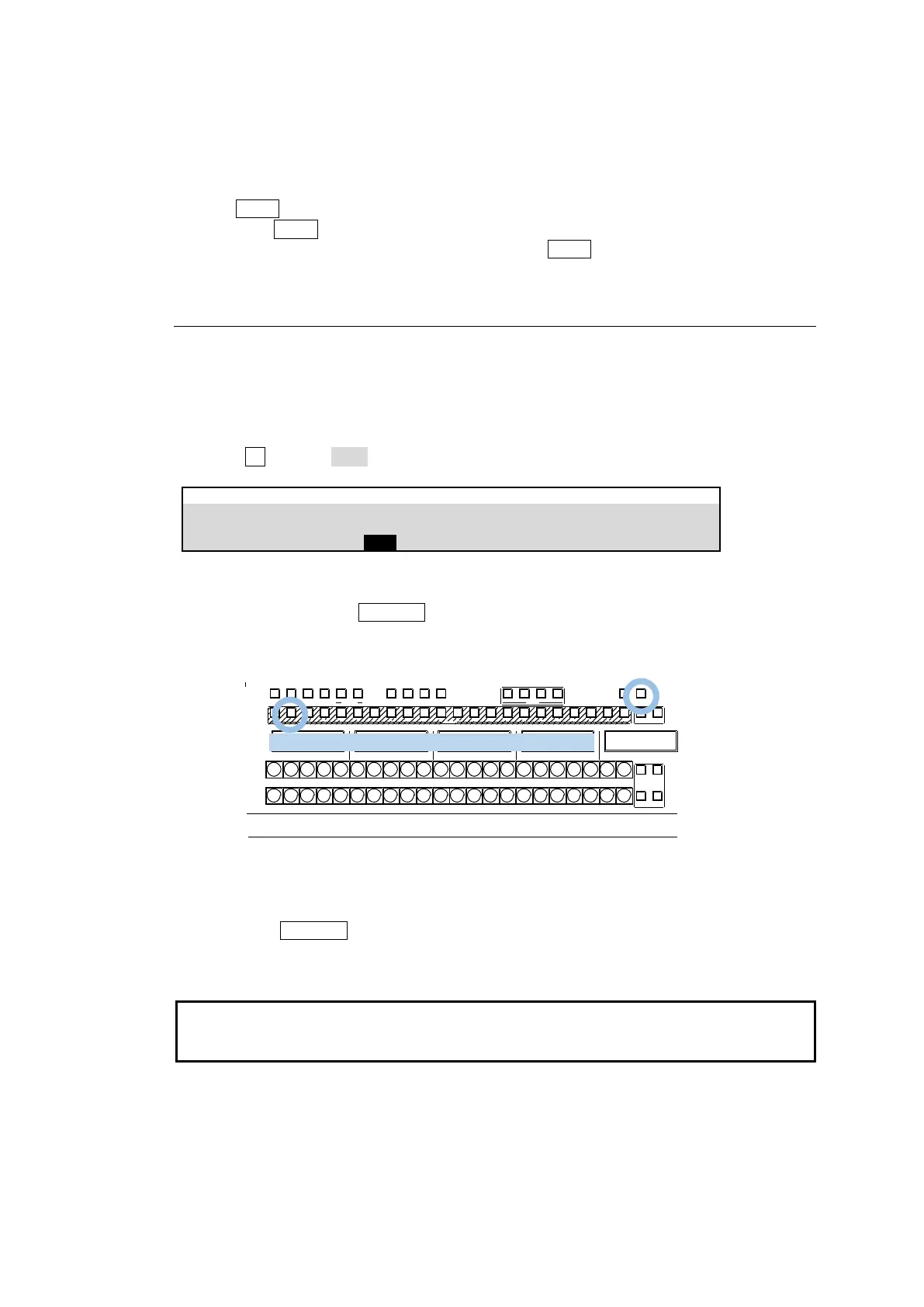

9-1-1. Assigning M/Es to LINEs
M/E1, M/E2 and MELite1-2 can be assigned to LINE 1 and LINE2.
For example, to use LINE 2 as M/E1, proceed as follows:
Using the Menu
(1) Open the [PANEL > LINE CONTROL > LINE CONTROL] menu.
(2) Turn F2 to select M/E1.
PANEL > LINE CONTROL > LINE CONTROL
Using the Panel Buttons
(1) Press and hold down SEL BUS in LINE 2.
(2) Selectable bus names (NONE, M/E1, M/E2 and AUX1-12) are displayed below the
KEY/FLX row. Press the KEY/FLX button just above “M/E1.”
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1 2
1 2
BUS FUNC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2
BUS FUNC
SEL BUSBUS DISP
MACRO
BUS RE C ATTACH DETACH
KEY/FLX
FLX 4FLX 3FLX2FLX11 2
UTILITY
KEY1 KEY2 KEY3 K EY4
M/E1 operation can now be performed in LINE 2.
The current assigned M/E name is displayed at the right end of the bus display block.
To disable the SEL BUS button, turn SEL BUS BUTTON INHIBIT to in the [PANEL > LINE
CONTROL > LINE CONTROL] menu.
If you assign an M/E to both LINE 1 and LINE 2, the LINE 1 transition block is automatically
disabled to prevent operational mistakes, and LINE 1 is fixed to LEVEL 1 and LINE 2 to
LEVEL 2.
