FOR-A HVS-490 - Expansion Card Slots

27
3-3. Option Slots
All expansion cards for HVS-490 can be configured as shown below.
Function expansion card modules should be installed into front side slots and I/O expansion cards
into rear side slots.
IMPORTANT
For further details on system expansion (optional cards) and fan replacement, contact your
FOR-A supplier.
3-3-1. Main Unit Front Side
HVS-49PSM, a redundant power supply unit, can be installed onto the front panel.

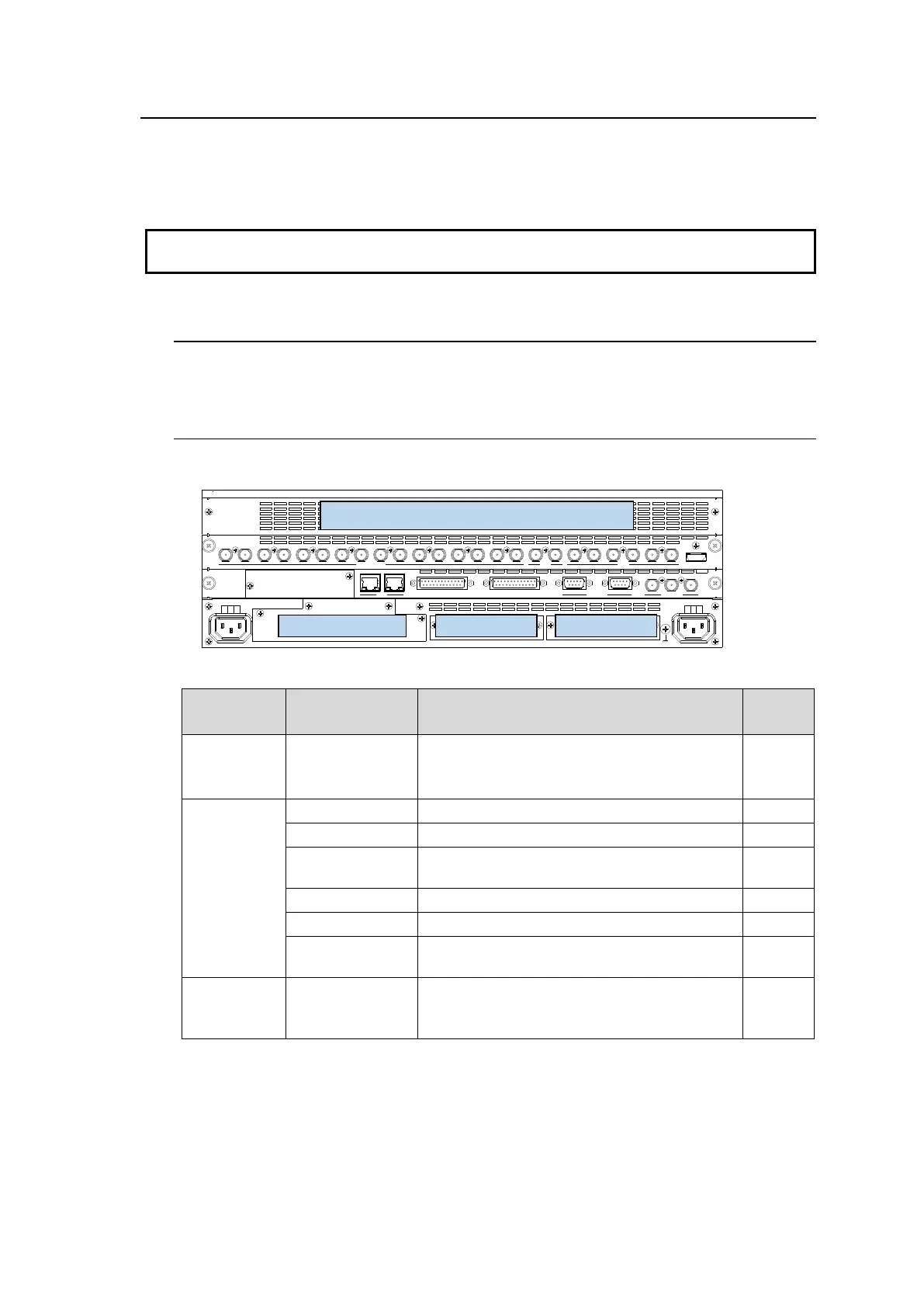

3-3-2. Main Unit Rear Side
The following expansion cards can be installed into empty slots on the rear panel.
SDI INPUT HDMI
65431 21615141312111098765431 2 21
M/E AUX
OPTION SLOT BOPTION SLOT A
AC100-240V 50/60Hz IN
2 1
AC100-240V 50/60Hz IN
REF IN REF OUT
GENLOCKGPI/TALLY OUTGPI IN/ALARMLAN
HVS(OU) EXT
1 2
RS-422
Option Slot
Available card
Expandable inputs and outputs
Refer to
49IO SLOT
HVS-49IO
SDI input x 16
SDI output x 8
HDMI output x 1
7-7
SLOT A
SLOT B
HVS-100DI-A
HD/SD-SDI input x 4
7-1
HVS-100AI
Analog input (Composite, Component) x 2
7-2
HVS-100PCI
HDMI input x 2
Analog RGB input x 1
7-3
HVS-100DO
SDI output x 2
7-4
HVS-100AO
Analog output (Composite, Component) x 2
7-5
HVS-100PCO
HDMI output x 2
Analog RGB output x 1
7-6
49AES
SLOT
HVS-49AES
AES 8-channel audio input
AES 8-channel audio output
(Balanced or unbalanced)
7-8
49IO SLOT
SLOT A
SLOT B
49AES SLOT
