FOR-A HVS-490 User Manual

78

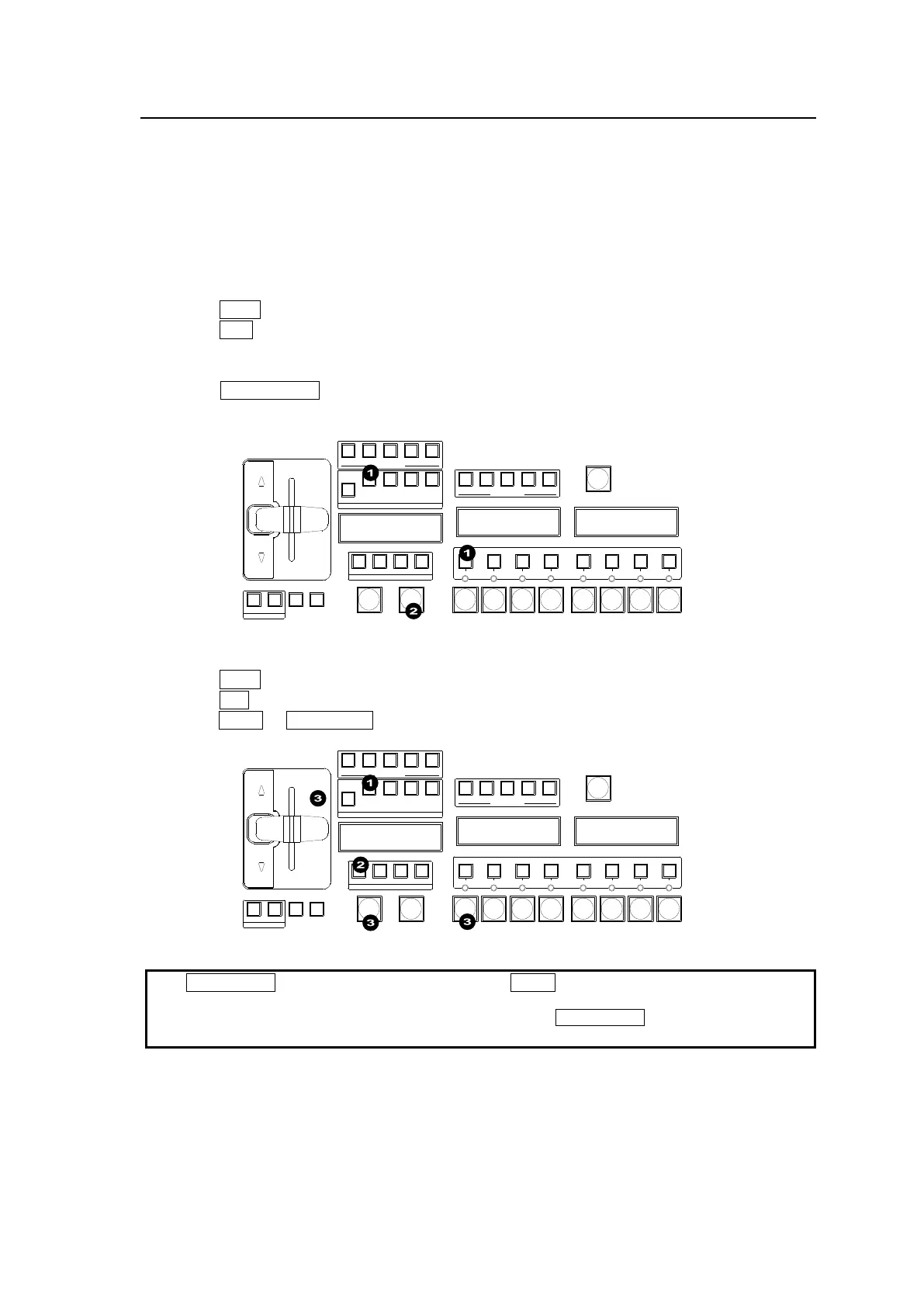

11-4. KEY Transitions
Key images are displayed on each M/E output screen. This chapter explains how to perform key
transitions using M/E1KEY1 as an example.
(1) Perform key setup for the KEY. (See Sec. 12. “KEY/FLEXaKEY.”)
(2) Perform a desired transition referring to the below procedures.
 CUT Transition
<Method 1>
(1) Press KEY1 in the TRANSITION block.
(2) Press CUT to perform a key CUT transition.
<Method 2 (HVS-492WOU) >
(1) Press KEY1 ON AIR to insert KEY1 onto the M/E1 program video. Press the button again to
remove KEY1 from the screen. (See Sec. 11-10.” KEY IN/OUT Using Cut or Fade.”
BLACK
TRANS
16 17 18 19 20
USER BUTTON
ON AIR
DVE DVE DVE DVE DVE DVE DVE DVE
KEY1 KEY2 KEY3 KEY4
FLX1 FLX2 FLX3 FLX4
USER BUTTON
11 12 13 14 15
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
 MIX Transition
(1) Press KEY1 in the TRANSITION block.
(2) Press MIX in the TRANSITION TYPE block.
(3) Press AUTO or KEY1 AUTO, or move the fader lever to perform the KEY1 MIX transition.
BLACK
TRANS
16 17 18 19 20
USER BUTTON
ON AIR
DVE DVE DVE DVE DVE DVE DVE DVE
KEY1 KEY2 KEY3 KEY4
FLX1 FLX2 FLX3 FLX4
USER BUTTON
11 12 13 14 15
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
NOTE
The KEY1 AUTO button behaves the same as the AUTO button when selecting KEY1 for the
next transition. For example, if MIX is set as the KEY1 transition type under the NEXT
TRANSITION, the KEY1 mix transition is performed when KEY1 AUTO is pressed and a KEY1
wipe transition is performed if WIPE is set as the transition type.
