11-3. Background Transitions

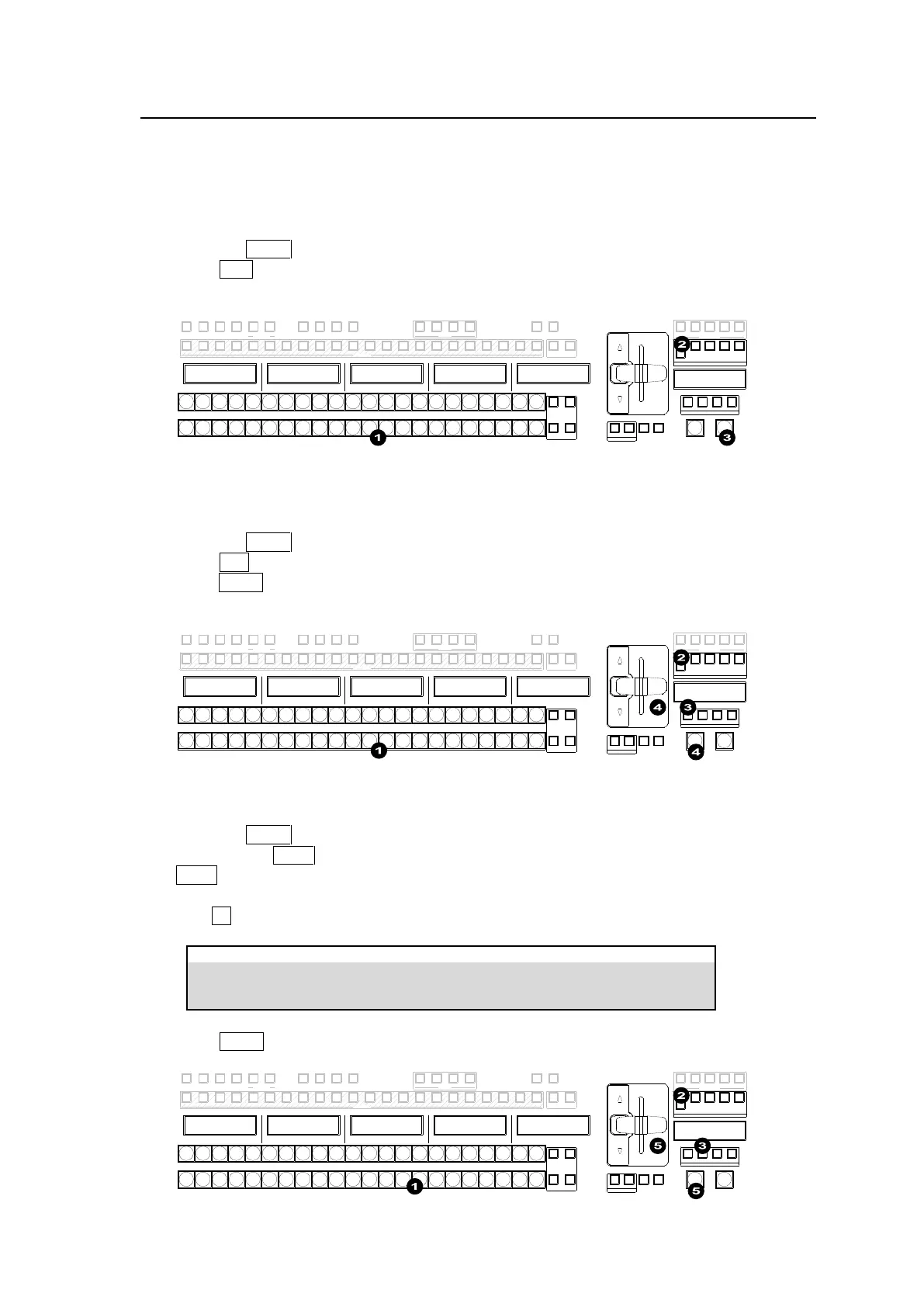

This chapter explains how to perform background transitions using the M/E2 background assigned
to LINE 2 as an example.
 CUT Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the TRANSITION block.
(3) Press CUT to perform the background CUT transition.
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1 2
1 2
BUS FUNC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2
BUS FUNC
SEL BUSBUS DISP
MACRO
BUS REC ATTACH DETACH
KEY/FLX
FLX4FLX3FLX2FLX11 2
UTILITY
KEY1 KEY2 KEY3 KEY4
USER BUTTON
11 12 13 14 15
 MIX Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the TRANSITION block.
(3) Press MIX in the TRANSITION TYPE block.
(4) Press AUTO or move the fader lever to perform the background MIX transition.
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1 2
1 2
BUS FUNC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2
BUS FUNC
SEL BUSBUS DISP
MACRO
BUS REC ATTACH DETACH
KEY/FLX
FLX4FLX3FLX2FLX11 2
UTILITY
KEY1 KEY2 KEY3 KEY4
USER BUTTON
11 12 13 14 15
 Pattern Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the TRANSITION block.
(3) Quickly press WIPE twice in the TRANSITION TYPE block.
WIPE will light up and the [M/E FLEXaKEY > M/E2 > BKGD > TRANS > TRANS] menu will
appear.
(4) Turn F4 to select a pattern.
M/E FLEXaKEY > M/E2 > BKGD PGM> TRANS > TRANS
1/4
TRANS RATE
FADER LIMIT
FADER LEVEL
PATTERN NO.
30
OFF
0.0
(5) Press AUTO or move the fader lever to perform the background transition.
KEY1 KEY2 KEY3 KEY4
NEXT TRANSITION
BKGD
TRANSITION TYPE
MIX WIPE EFF1 EFF2
AUTO CUT
FADER LIMIT
TRANS
RATE
PATTERNNOR/REVREV
DIRECTION
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1 2
1 2
BUS FUNC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2
BUS FUNC
SEL BUSBUS DISP
MACRO
BUS REC ATTACH DETACH
KEY/FLX
FLX4FLX3FLX2FLX11 2
UTILITY
KEY1 KEY2 KEY3 KEY4
USER BUTTON
11 12 13 14 15
