Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
3-30
DC SC2020
3.2.2 How to use the image quality troubleshooting (IPS)
Version 1.1
Image Quality Troubleshooting
3.2.4 Cycle Table

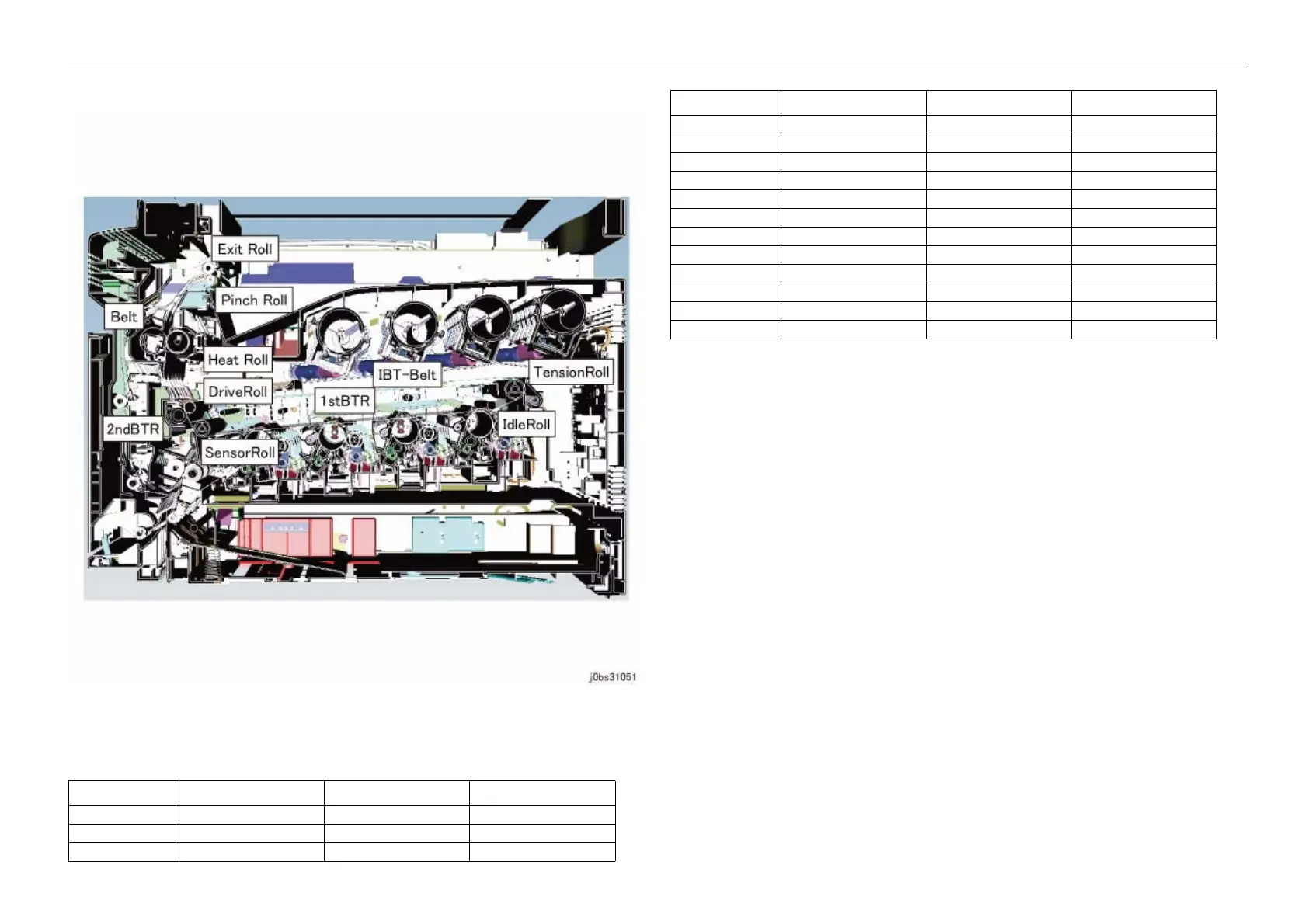

Figure 1 j0bs3105
Table 1
Sub Device Diameter (imm) Print Period (imm)
Exit Pinch Roll 10.00 31.4
Exit Roll 15.00 47.1
Fusing Heat Roll 24.93 78.3
Belt 30.10 94.6
Transfer 2nd-BTR 18.00 56.5
IBT IBT-Belt 253.07 795.0
Drive Roll 12.97 40.8
Tension Roll 22.50 70.7
Idle Roll 10.00 31.4
1st-BTR 6.00 18.8
Sensor Roll 18.00 56.5
Deve Roll Assy Mag 16.00 28.6
Xero Drum 30.00 94.2
BCR 12.08 37.9
BCR Cln 9.30 29.2
Table 1
Sub Device Diameter (imm) Print Period (imm)
