05/2014
4-87
DC SC2020
Disassembly/Assembly and Adjustment
56. DADF
Version 1.1
REP 56.9.3 Invert Chute
Parts List on PL 56.9
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Open the Upper Feeder.
2. Open the Retard Chute.

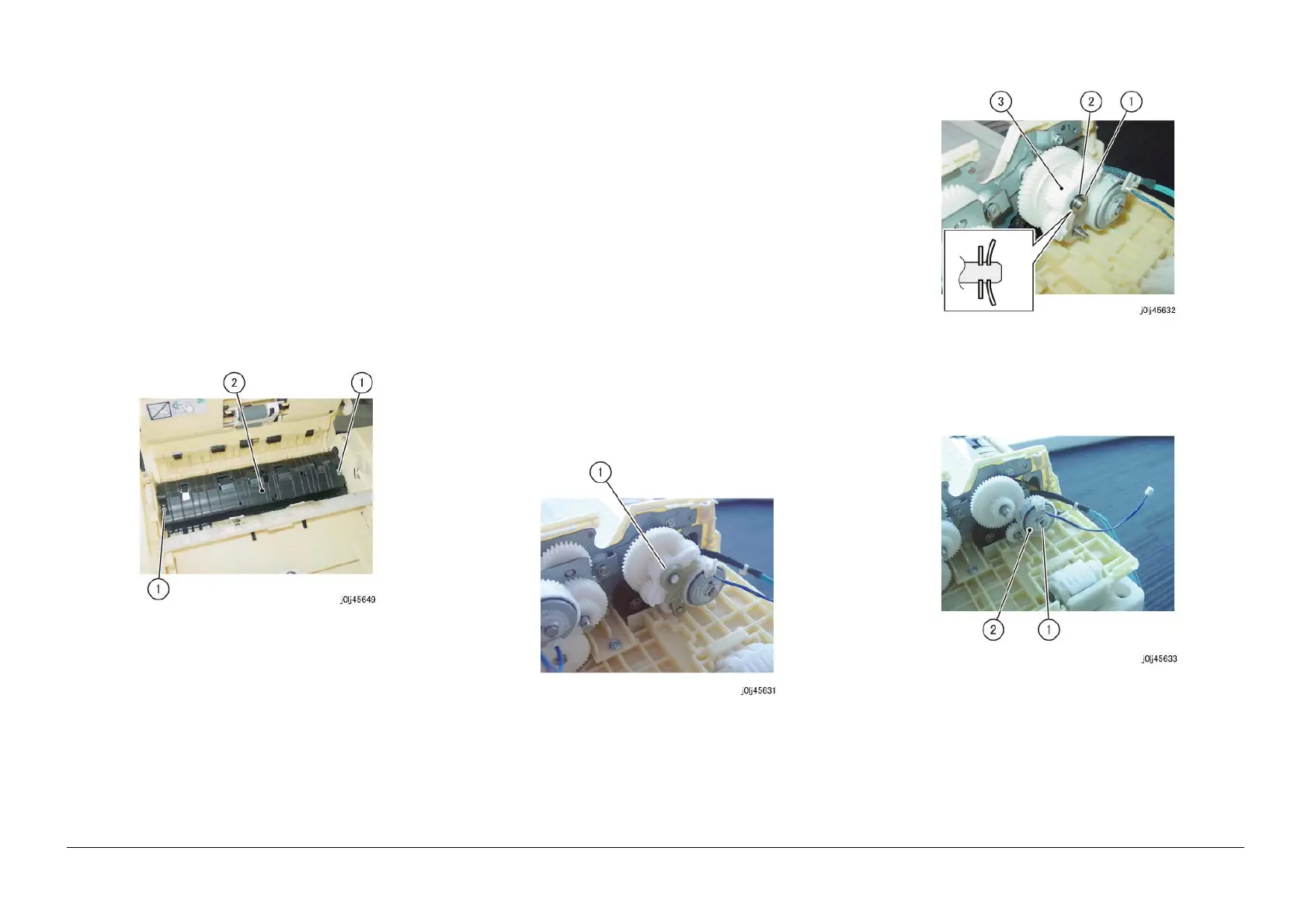

3. Remove the Invert Chute. (Figure 1)
(1) Remove the Tapping Screw (x2).
(2) Remove the Invert Chute.
Figure 1 j0lj45649
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.10.1 DADF Takeaway Roll
Parts List on PL 56.10
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Remove the Harness Guide and the wire harness. (REP
56.6.1)
5. Remove the Upper Feeder. (REP 56.2.4)
6. Remove the Invert Chute. (REP 56.9.3)
7. Remove the DADF Feed Motor. (REP 56.6.2)
8. Remove the link. (Figure 1)
(1) Remove the link.
Figure 1 j0lj45631
9. Remove the gear and bracket. (Figure 2)
(1) Remove the washer (large: thin).
(2) Remove the washer (small: thick).
(3) Remove the gear and bracket.
Figure 2 j0lj45632
10. Remove the DADF Takeaway Clutch. (Figure 3)
(1) Remove the E-Clip.
(2) Remove the DADF Takeaway Clutch.
Figure 3 j0lj45633
11. Remove the gear. (Figure 4)
(1) Loosen the screw.
(2) Remove the spring.
(3) Remove the gear.
To Next Page
