05/2014
5-9
DC SC2020
Parts List
1. IIT/UI
Version 1.1

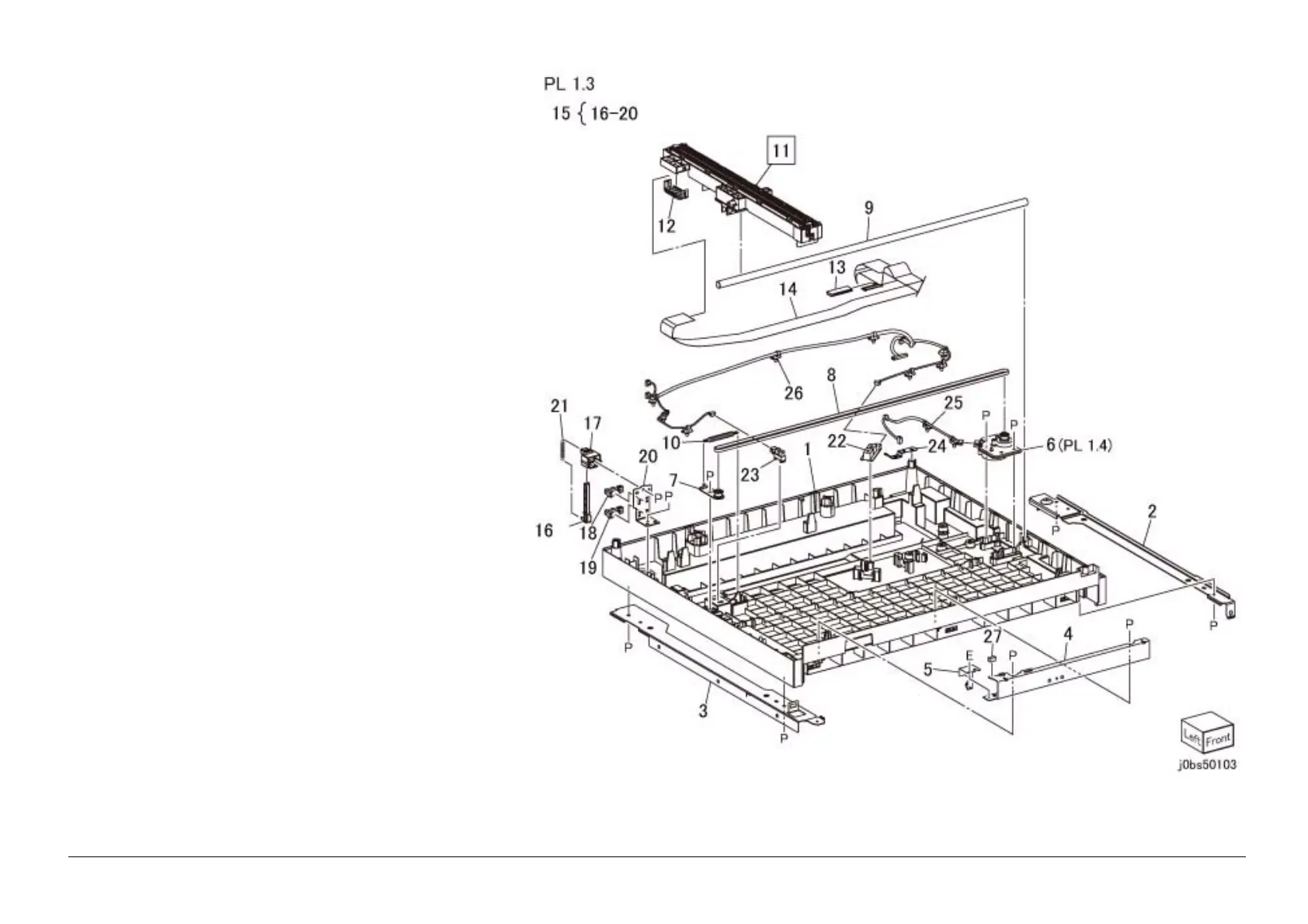

PL 1.3 IIT Base Frame Component
Item Parts No Description A.C.
1 – IIT Base Frame
2 – Right Plate
3 – Left Plate
4 – Front Plate
5 – Support Plate
6 127K 71750 Scan Drive and Motor (PL 1.4)
7 020K 18410 Tension Pulley Bracket
8 023E 28100 CIS Sensor Assembly Belt (REP 1.3.2)
9 – Shaft
10 809E 58300 Spring
11 130K 89550 CIS Sensor Assembly (REP 1.3.1)
12 – Cord Guide
13 121E 23340 Core
14 117K 47910 CIS Cable
15 120K 92980 Sensor Assembly (Item 16-21)
16 – Actuator (P/O Item 15)
17 – Support (P/O Item 15)
18 930W 00123 Platen Angle Sensor
19 930W 00123 Platen Close Sensor
20 – Sensor Bracket (P/O Item 15)
21 – Spring
22 130K 64150 APS Sensor 1
23 930W 00123 IIT Regi. Sensor
24 – Conductor
25 952K 11080 (SCC) Motor Wire Harness (REP 99.1.1)
26 952K 11090 Sensor Wire Harness
27 – Gasket
To Next Page
