05/2014
4-39
DC SC2020
Disassembly/Assembly and Adjustment
8. Xerographic
Version 1.1
REP 8.1.1 Xero Unit
Parts List on PL 8.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
To prevent light fatigue, either wrap the removed Drum Cartridge by
using a sheet of black paper or store it in a black bag.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Prepare a sheet of black paper or a black bag.
2. Open the Front Cover.

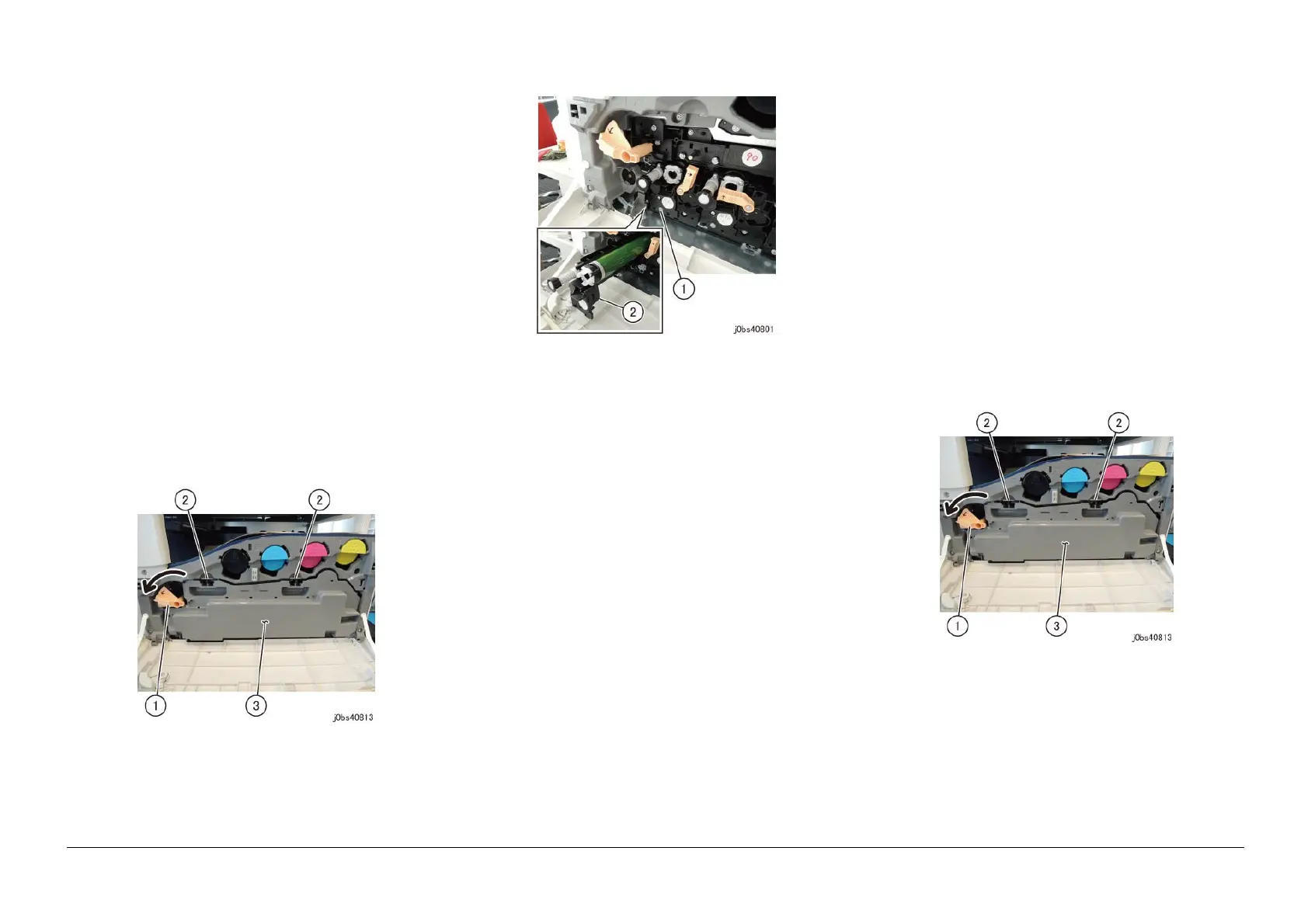

3. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) RRemove the Waste Bottle.
Figure 1 j0bs40813
4. Turn the replacement target color Lever (R1-R4) towards the
direction of the arrow.
5. Remove Y, M, C, K of the Xero Unit. (Figure 2)
(1) Remove the screw (long).
(2) Remove the Xero Unit.
Figure 2 j0bs40801
Replacement
1. To install, carry out the removal steps in reverse order.
REP 8.3.1 Drum
Parts List on PL 8.3
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.Turn OFF the
Power Switch and make sure that the screen display or energy-
saving LED is turned off.Check that the power switch is OFF
and unplug the power plug.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Open the Front Cover.
2. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) RRemove the Waste Bottle.
Figure 1 j0bs40813
3. Turn the replacement target color Lever (R1-R4) towards the
direction of the arrow.
4. Remove Y, M, C, K of the Xero Unit. (Figure 2)
(1) Remove the screw (long).
(2) Remove the Xero Unit.
To Next Page
