05/2014
5-43
DC SC2020
Parts List
14. L/H Cover
Version 1.1

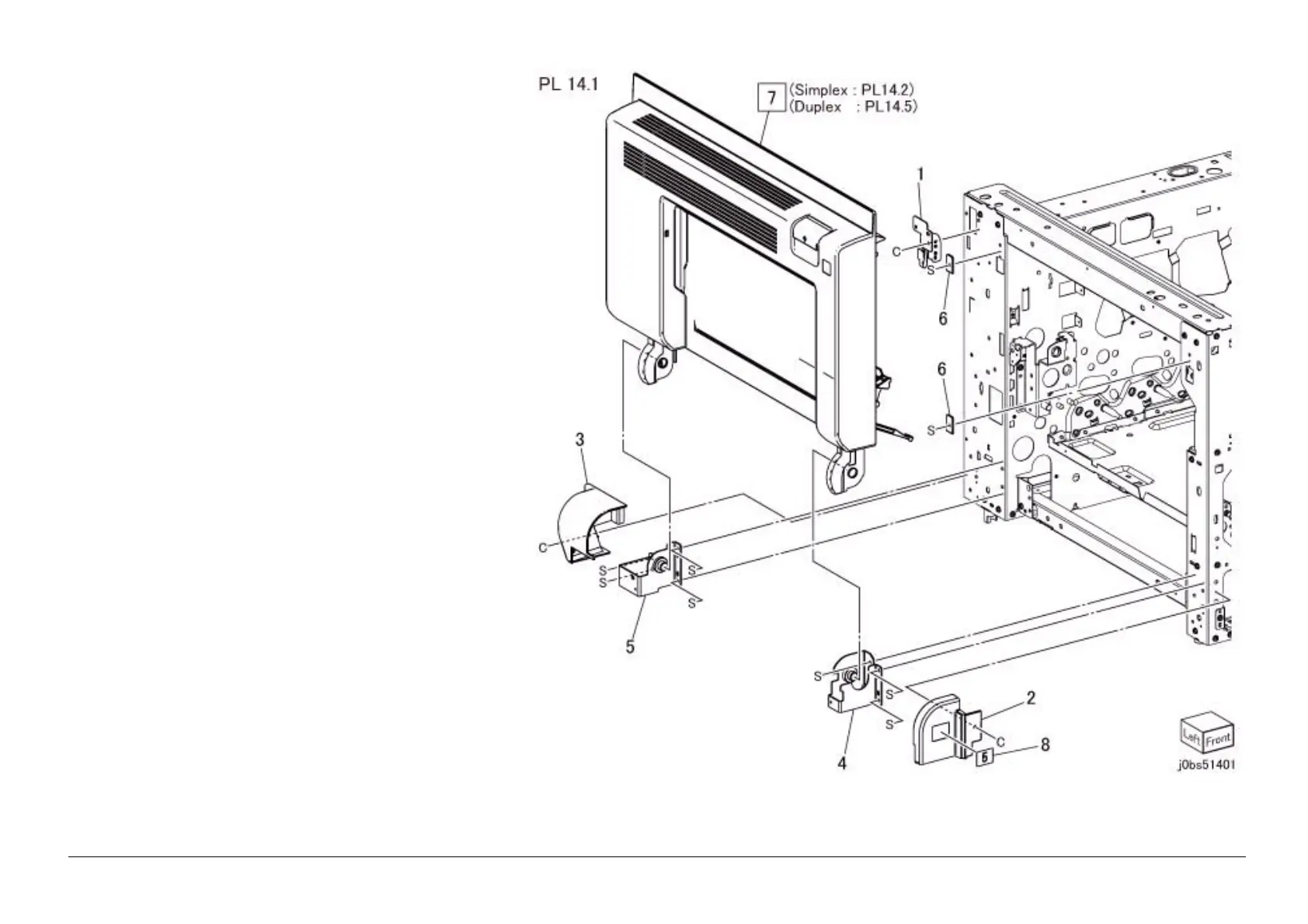

PL 14.1 Simplex/Duplex L/H Cover
Item Parts No Description A.C.
1 110K 17840 L/H Cover Interlock Switch
2 822E 09700 Hinge Front Cover
3 822E 09720 (SCC) Hinge Rear Cover(REP 99.1.1)
4 801K 60510 Front Hinge
5 801K 60520 Rear Hinge
6 032E 43730 Latch Guide
7 059K 87800 Simplex L/H Cover (PL 14.2) (REP 14.1.1)
– 059K 87810 Duplex L/H Cover (PL 14.5) (REP 14.1.1)
8 897E 33890 Number Label
