05/2014
5-67
DC SC2020
Parts List
56. DADF
Version 1.1

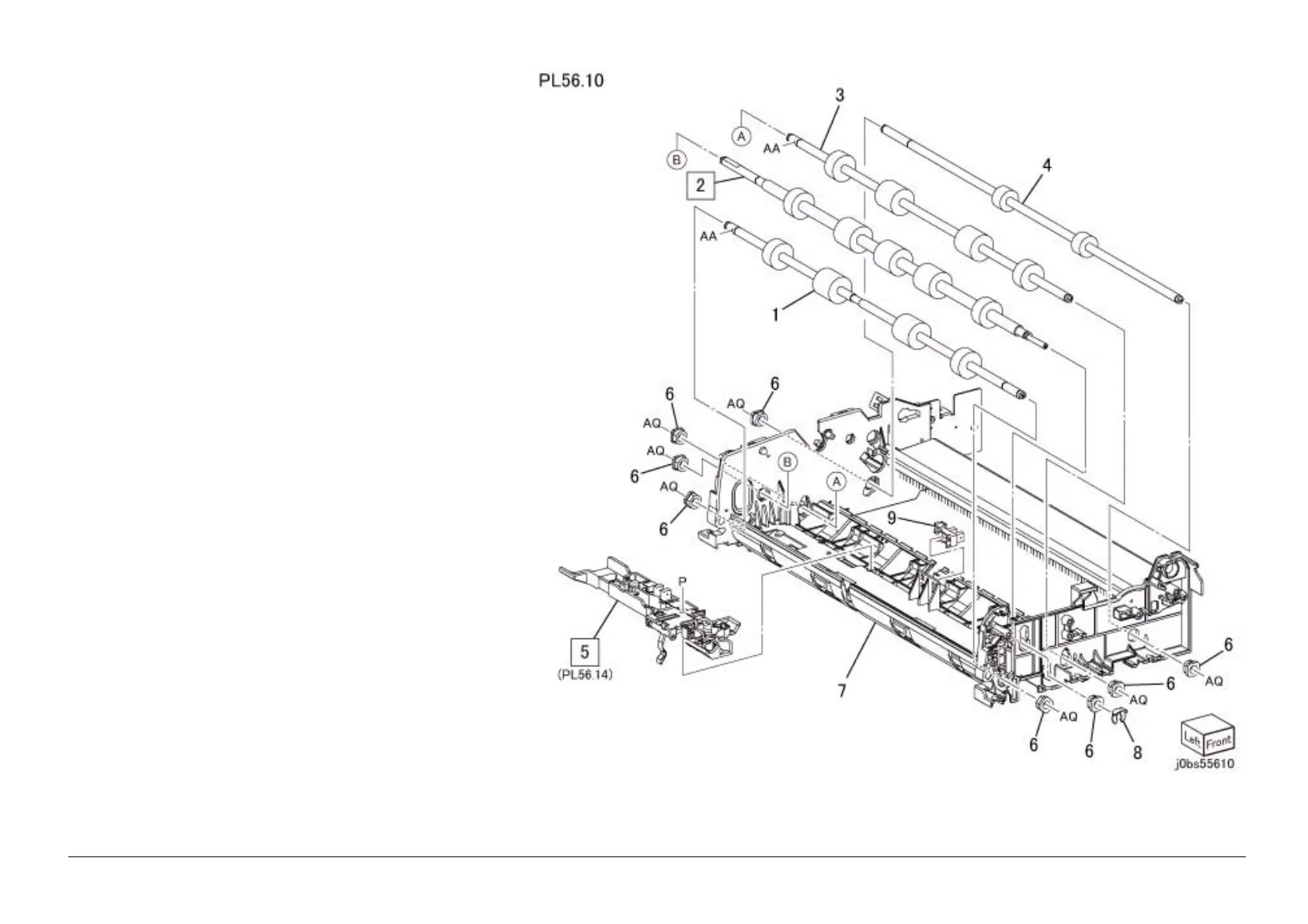

PL 56.10 DADF Roll,Sensor Bracket
Item Parts No Description A.C.
1 059K 75780 DADF Registration Roll
2 059K 75790 DADF Takeaway Roll (REP 56.10.1)
3 059K 75800 DADF Out Roll
4 059K 75810 DADF Exit Roll
5 049K 17820 Sensor Bracket (PL 56.14) (REP 56.10.2)
6 413W 11660 Bearing
7 – DADF Feeder Frame
8– KL-Clip
9 930W 00121 DADF Invert Sensor
To Next Page
