05/2014
5-42
DC SC2020
13. MSI
Version 1.1
Parts List

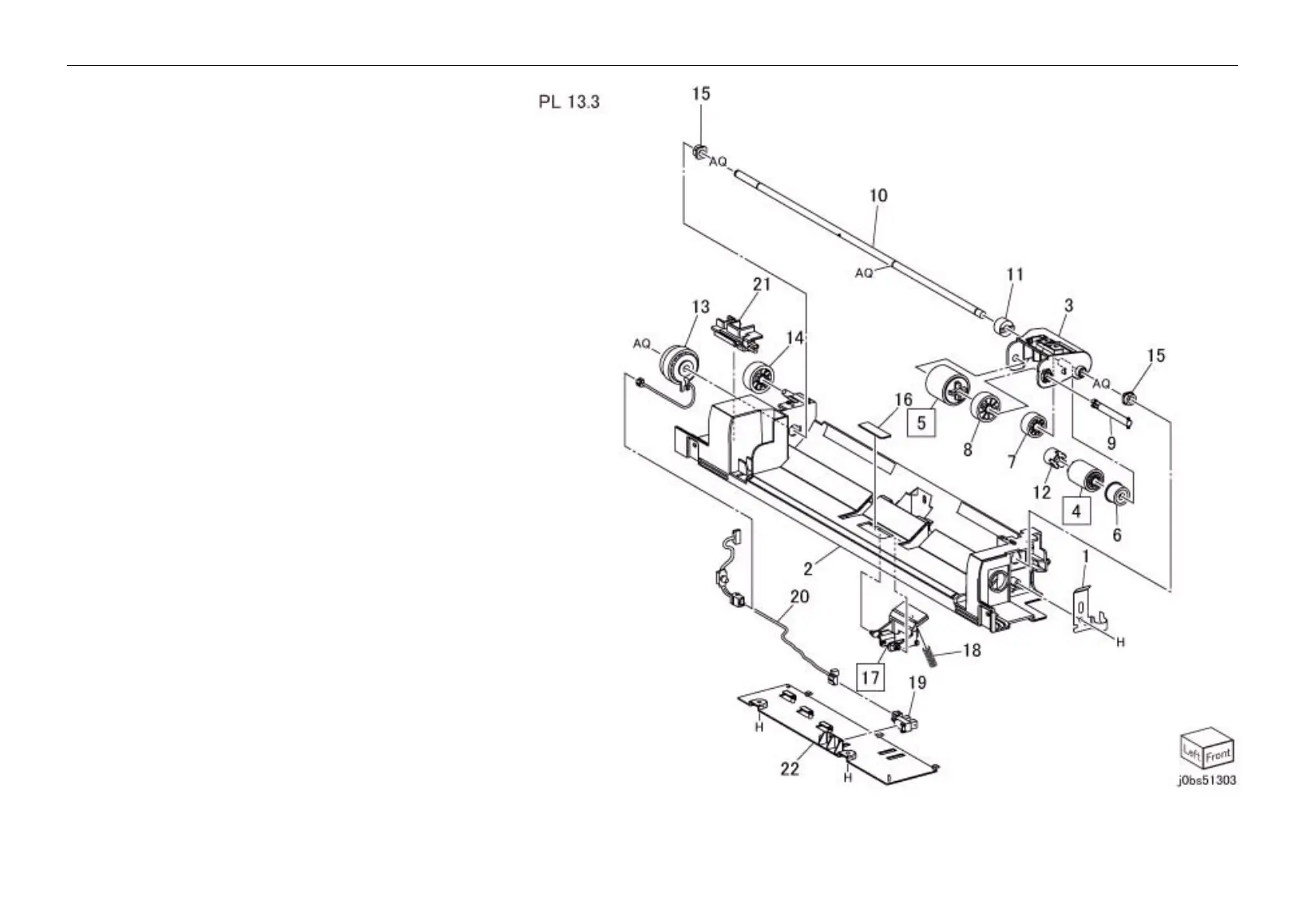

PL 13.3 MSI Lower Feeder
Item Parts No Description A.C.
1 – Ground Plate
2 – MSI Lower Frame
3 019E 85410 Nudger Holder
4 022K 77450 MSI Feed Roll (REP 13.3.1)
5 022K 78481 MSI Nudger Roll (REP 13.3.1)
6 007K 18660 Oneway Clutch Gear (30T)
7 – Gear (37T)
8 – Gear (46T)
9 – Shaft
10 – Shaft
11 005K 83510 Friction Clutch
12 005K 83520 Oneway Clutch
13 121K 52220 (SCC) MSI Feed Clutch(REP 99.1.1)
14 – Gear (18T)
15 413W 11660 Sleeve Plastic Bearing
16 019E 84010 Bottom Pad
17 019K 12820 MSI Retard Pad (REP 13.3.2)
18 – Spring
19 930W 00123 MSI No Paper Sensor
20 – MSI Wire Harness
21 – Connector Cover
22 – MSI Lower Cover
To Next Page
