05/2014
5-32
DC SC2020
10. One Tray Module (Tray 2)
Version 1.1
Parts List

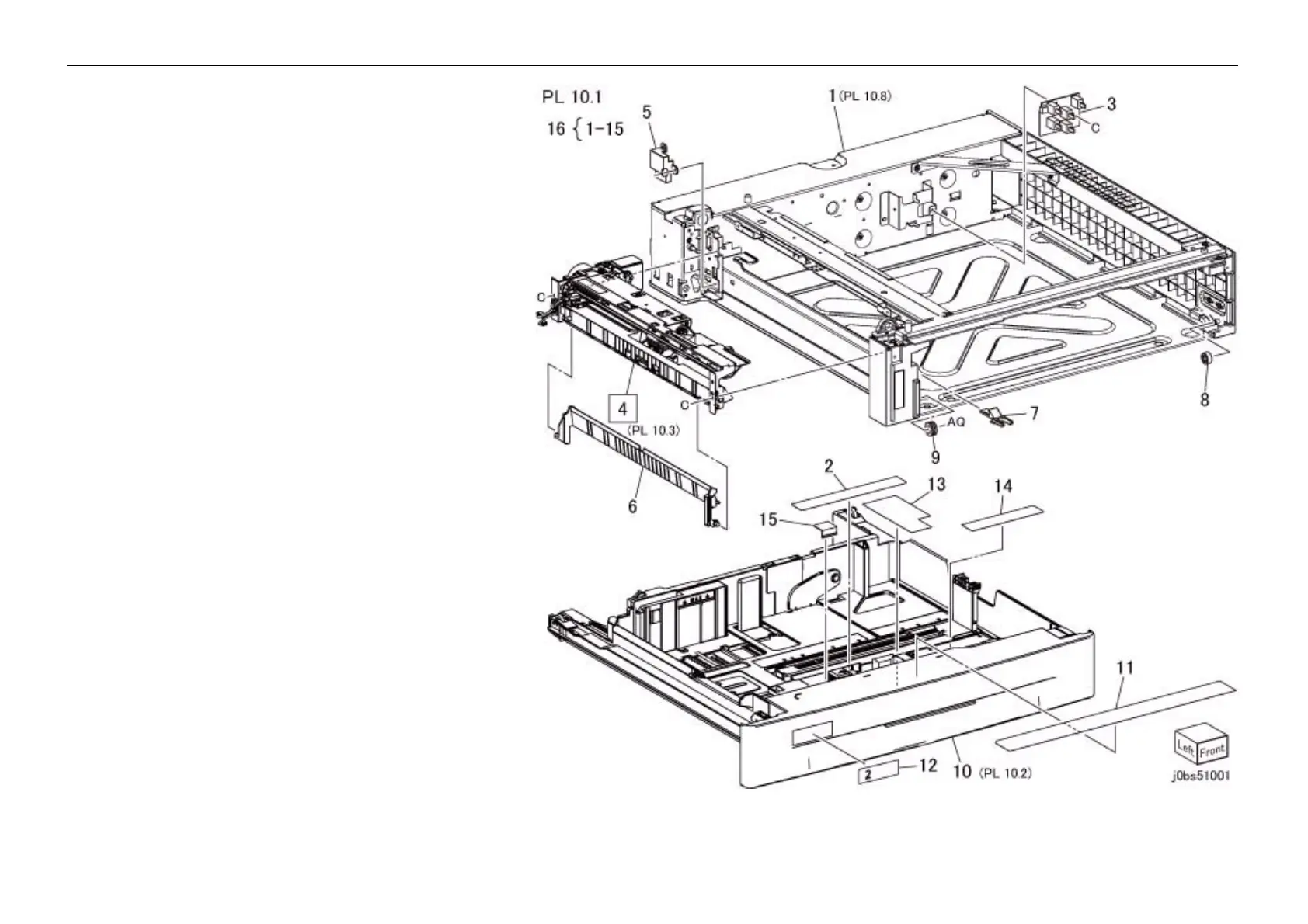

PL 10.1 Tray 2 ,Feeder
Item Parts No Description A.C.
1– Frame (PL 10.8)
2 898E 81590 End Label
3 110K 12100 (SCC) Tray 2 Paper Size Switch(Alternate)(REP
99.1.1)
– 110K 11680 (SCC) Tray 2 Paper Size Switch(Alternate)(REP
99.1.1)
4 059K 86720 (SCC) Tray 2 Feeder (PL 10.3) (REP 10.1.1, REP
99.1.1)
5 822E 07621 Connector Cover
6 054E 33803 Feed Out Chute
7 – Stopper
8 059E 03500 Roll
9 059E 08410 Roll
10 050K 71770 (SCC) Tray 2 (PL 10.2) (REP 99.1.1)
11 890E 23400 Instruction Label
12 897E 10220 Label (No2)
13 898E 81570 Side Label
14 898E 81580 End Label
15 – Silde Lock
16 848K 87540 One Tray Module (Item 1-15)
To Next Page
