05/2014
4-26
DC SC2020
5. Development
Version 1.1
Disassembly/Assembly and Adjustment
REP 5.5.1 Deve Gear
Parts List on PL 5.5
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.Turn OFF the
Power Switch and make sure that the screen display or energy-
saving LED is turned off.Check that the power switch is OFF
and unplug the power plug.
CAUTION
To prevent light fatigue, either wrap the removed Drum by using a
sheet of black paper or store it in a black bag.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Prepare a sheet of black paper or a black bag.
2. Open the Front Cover.

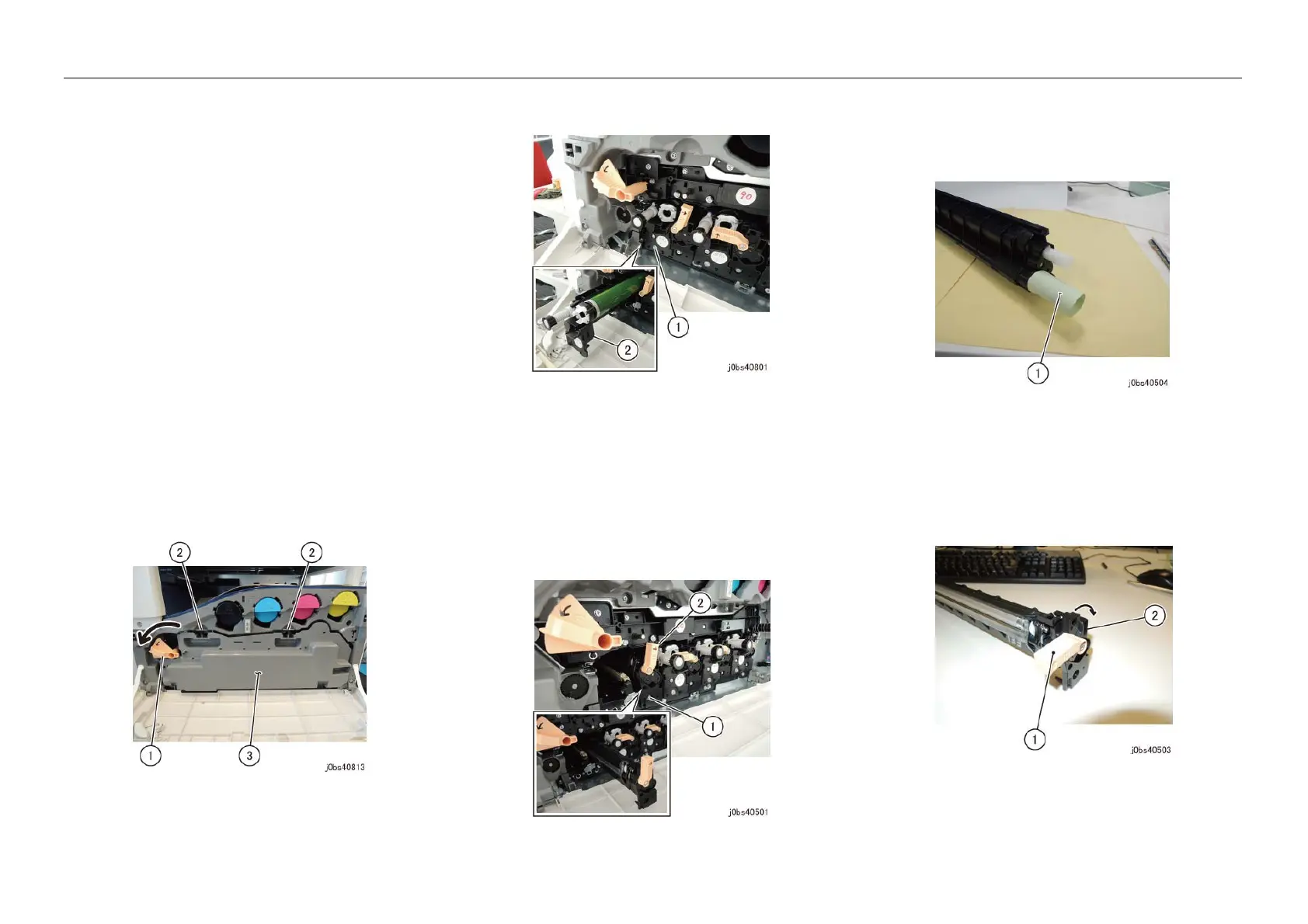

3. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) RRemove the Waste Bottle.
Figure 1 j0bs40813
4. Turn the replacement target color Lever (R1-R4) towards the
direction of the arrow.
5. Remove Y, M, C, K of the Xero Unit. (Figure 2)
(1) Remove the screw (long).
(2) Remove the Xero Unit.
Figure 2 j0bs40801
6. Wrap the removed Xero Unit by using a sheet of black paper or
store it in a black bag.
7. Remove the Deve Unit. (Figure 3)
(1) Remove the screw (long).
(2) Hold the Lever and remove the Deve Unit.
NOTE: When removing the Deve Unit, make sure the Rear
Deve Unit is lifted and be careful that the 1st BTR Unit is not
damaged.
Figure 3 j0bs40501
8. Cover the Pipe opening of Deve Rear Cover of the Deve Unit
with paper and tape. (Figure 4)
(1) Cover the Pipe opening with paper and tape.
Figure 4 j0bs40504
9. Remove the Deve Front Cover. (Figure 5)
(1) Lower the lever.
(2) Remove the Deve Front Cover in the direction of the
arrow.
Figure 5 j0bs40503
10. Remove the Gear Cover. (Figure 6)
(1) Remove the Tapping Screw.
(2) Remove the Gear Cover.
To Next Page
