Disassembly/Assembly and Adjustment
REP 56.6.1 Harness Guide and Wire
Harness
Parts List on PL 56.6
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Disconnect P760 and remove the wire harness from the Har-
ness Guide. (Figure 1)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.

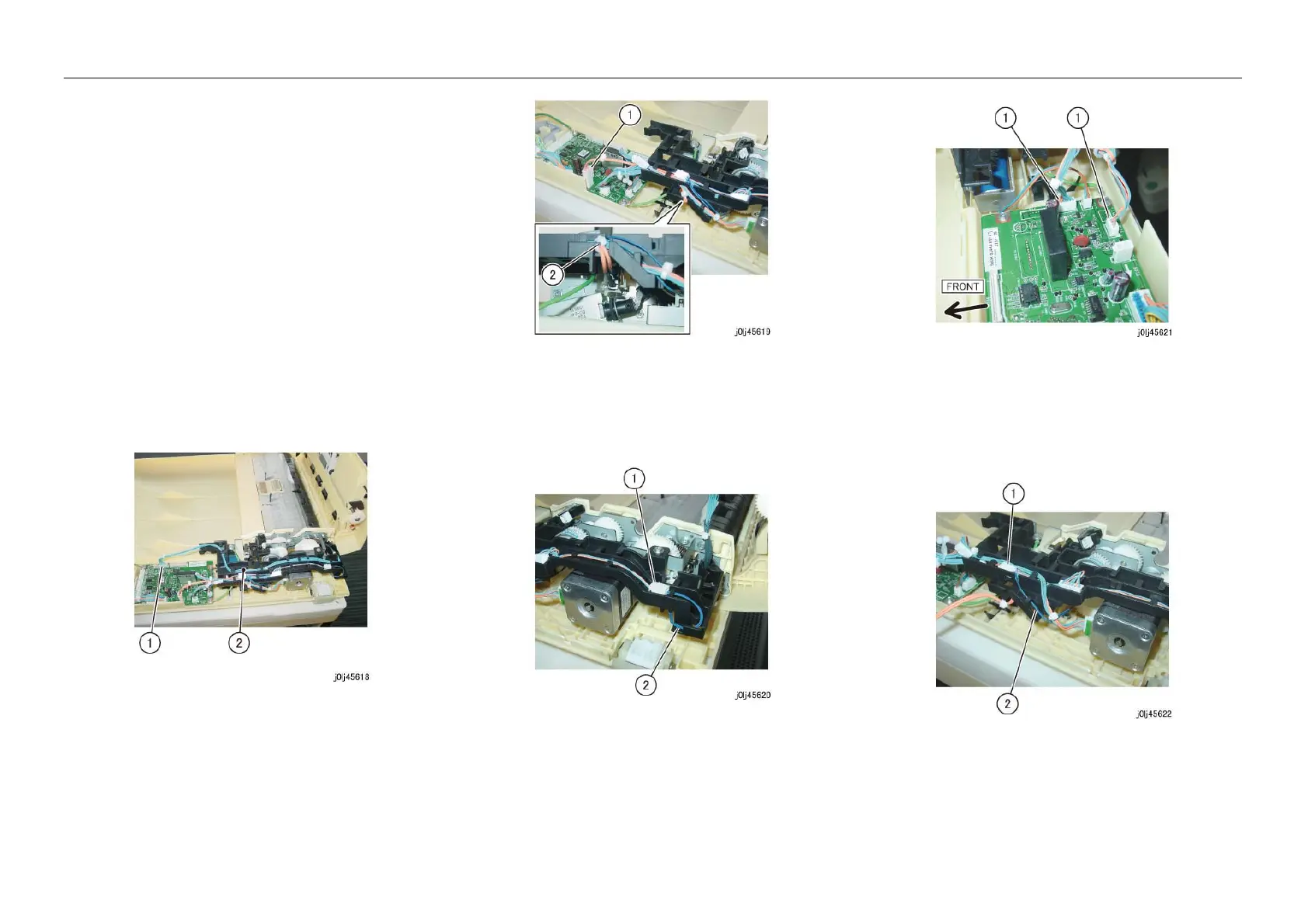

Figure 1 j0lj45618
5. Disconnect P753 and remove the wire harness from the Har-
ness Guide. (Figure 2)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 2 j0lj45619
6. Disconnect the connector of the DADF Takeaway Clutch and
remove the wire harness from the Harness Guide. (Figure 3)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 3 j0lj45620
7. Disconnect the DADF PWB connectors. (Figure 4)
(1) Disconnect the connector (x2).
Figure 4 j0lj45621
8. Disconnect the connector of the DADF Feed Clutch and
remove the wire harness from the Harness Guide.
(Figure 5)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 5 j0lj45622
9. Disconnect the connector of the DADF Feed Motor. (Figure 6)
(1) Disconnect the connector.
To Next Page
