05/2014
4-21
DC SC2020
Disassembly/Assembly and Adjustment
5. Development
Version 1.1

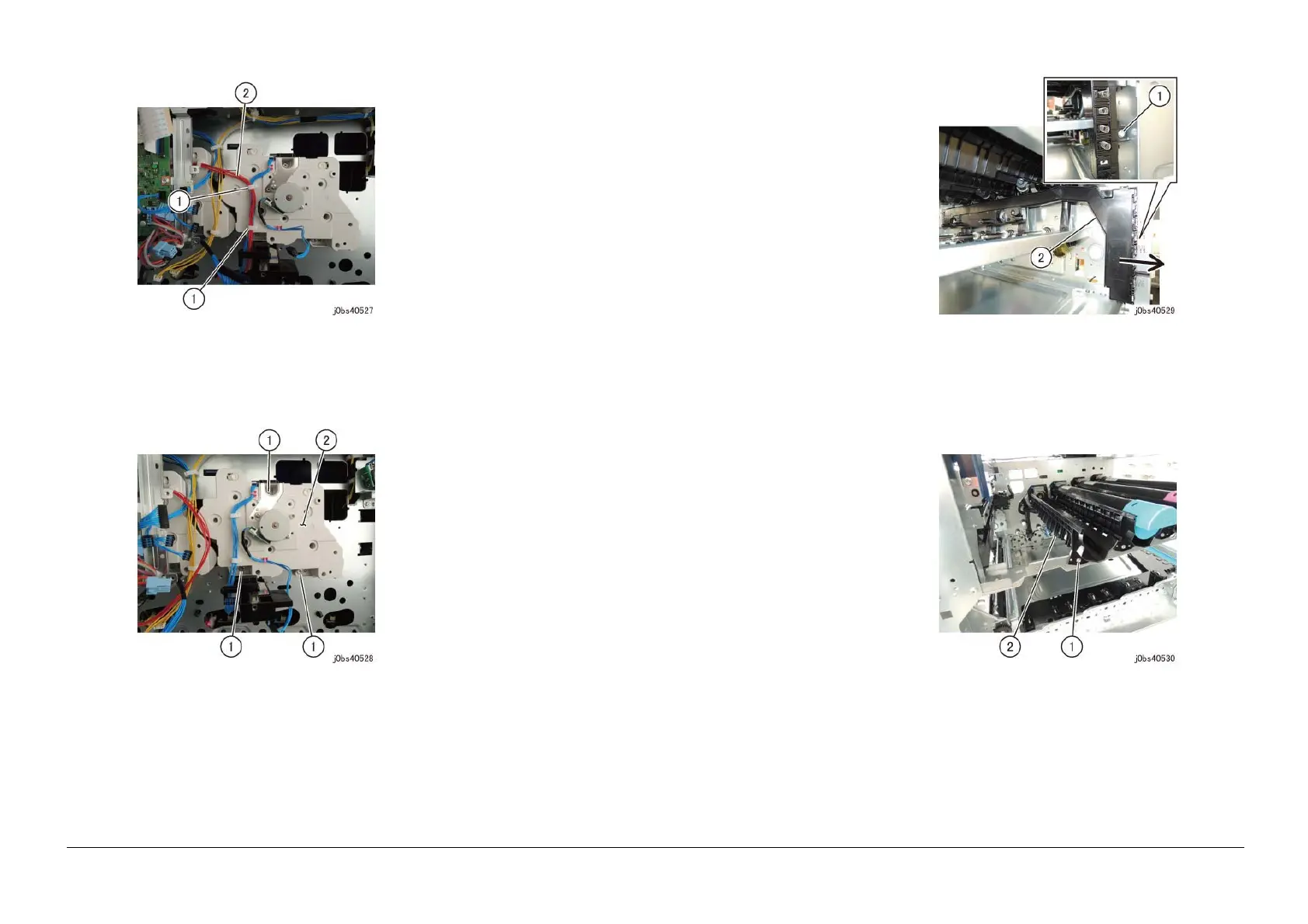

Figure 2 j0bs40527
9. Remove the Dispenser Drive (CK). (Figure 3)
(1) Remove the screw (x3).
(2) Remove the Dispenser Drive (CK).
Figure 3 j0bs40528
Replacement
1. To install, carry out the removal steps in reverse order.
REP 5.1.4 Dispenser (Y,M,C,K)
Parts List on PL 2.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
To prevent light fatigue, either wrap the removed Drum by using a
sheet of black paper or store it in a black bag.
NOTE: Because the removal procedure for the Dispenser (Y, M, C,
K) is the same, the following describes only the procedure for the
Dispenser (K).
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Prepare a sheet of black paper or a black bag.
2. Remove the Toner Cartridge (K). (PL 5.1)
3. Remove Y,M,C,K of the Xero Unit. (REP 8.1.1)
4. Remove the Deve Unit (K). (REP 5.1.1)
5. Remove the IBT Belt Unit. (REP 6.1.1)
6. Remove the Front Cover. (REP 19.1.1)
7. Remove the Inner Cover. (REP 19.1.2)
8. Remove the Top Cover. (REP 19.1.4)
9. Remove the Right Cover. (REP 19.1.3)
10. Remove the HVPS. (REP 18.1.1)
11. Remove the Conductor Housing. (Figure 1)
(1) Remove the screw.
(2) Remove the Conductor Housing towards the direction of
the arrow.
Figure 1 j0bs40529
12. Remove the Dispenser (K). (Figure 2)
(1) Remove the screw.
(2) Remove the Dispenser (K).
Figure 2 j0bs40530
Reference: This shows the removed Dispenser (K). (Figure 3)
To Next Page
