05/2014
4-76
DC SC2020
56. DADF
Version 1.1
Disassembly/Assembly and Adjustment

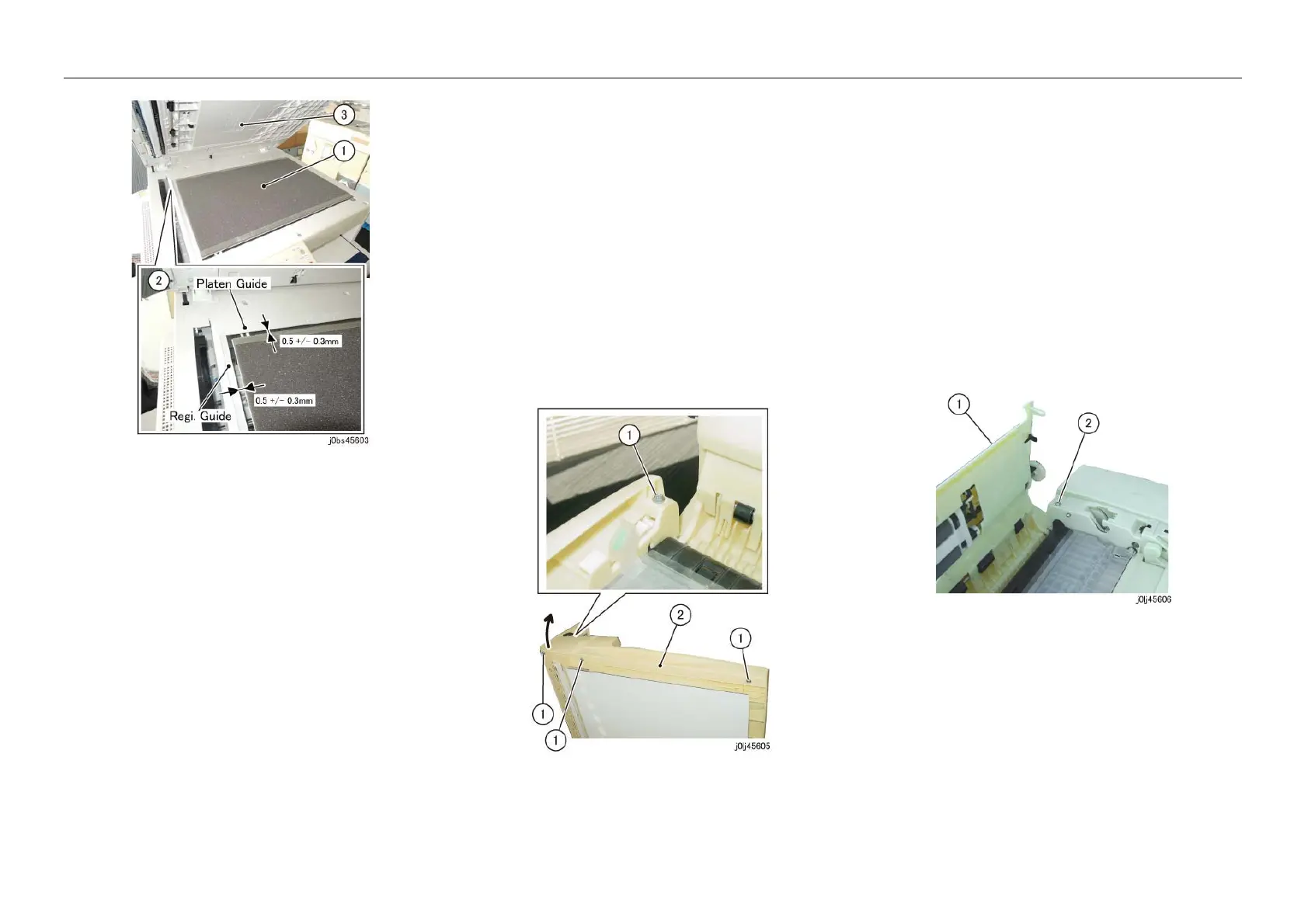

Figure 2 j0bs45603
REP 56.2.1 DADF Front Cover
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Open the Upper Feeder.
2. Open the DADF.
3. Remove the DADF Front Cover. (Figure 1)
(1) Remove the Tapping Screw (x4).
(2) Remove the DADF Front Cover in the direction of the
arrow.
Figure 1 j0lj45605
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.2.2 DADF Rear Cover
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the screws that secure the DADF Rear Cover. (Figure
1)
(1) Open the Upper Feeder.
(2) Remove the Tapping Screw.
Figure 1 j0lj45606
2. Remove the screws that secure the DADF Rear Cover. (Figure
2)
(1) Open the Document Tray.
(2) Remove the Tapping Screw.
To Next Page
