05/2014
4-74
DC SC2020
19. Cover
Version 1.1
Disassembly/Assembly and Adjustment
REP 19.1.5 Rear Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.

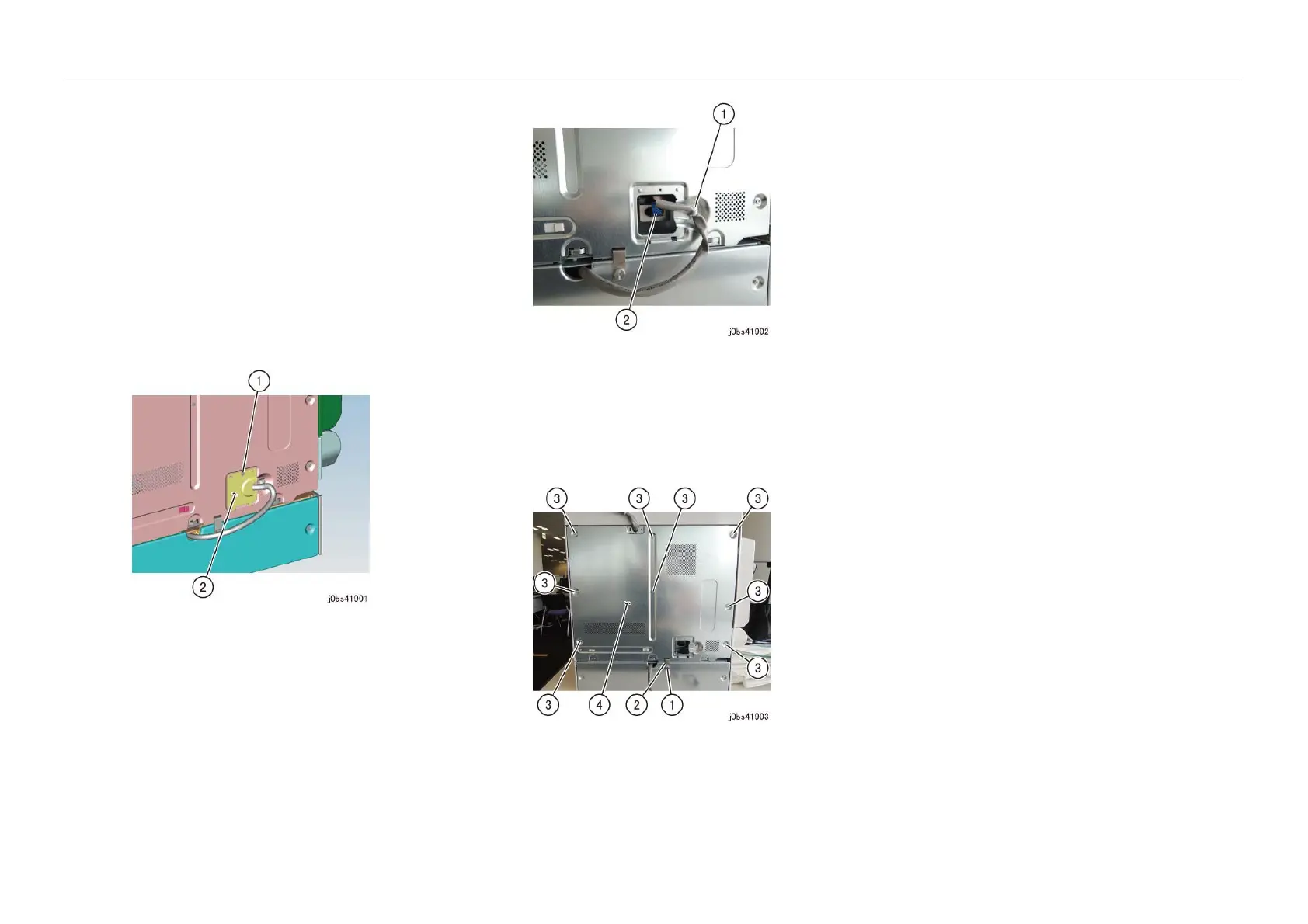

1. [Machines with One Tray Module]: Remove the STM Connec-
tor Cover. (Figure 1)
(1) Remove the screw.
(2) Remove the STM Connector Cover.
Figure 1 j0bs41901
2. [Machines with One Tray Module]: Disconnect the connector.
(Figure 2)
(1) Remove the cable band.
(2) Disconnect the connector.
Figure 2 j0bs41902
3. Remove the Rear Cover. (Figure 3)
(1) Remove the Docking Screw.
(2) Remove the Docking Bracket.
(3) Remove the Screws (x8).
(4) Remove the Rear Cover.
Figure 3 j0bs41903
Replacement
1. To install, carry out the removal steps in reverse order.
To Next Page
