05/2014
5-54
DC SC2020
18. Electrical
Version 1.1
Parts List

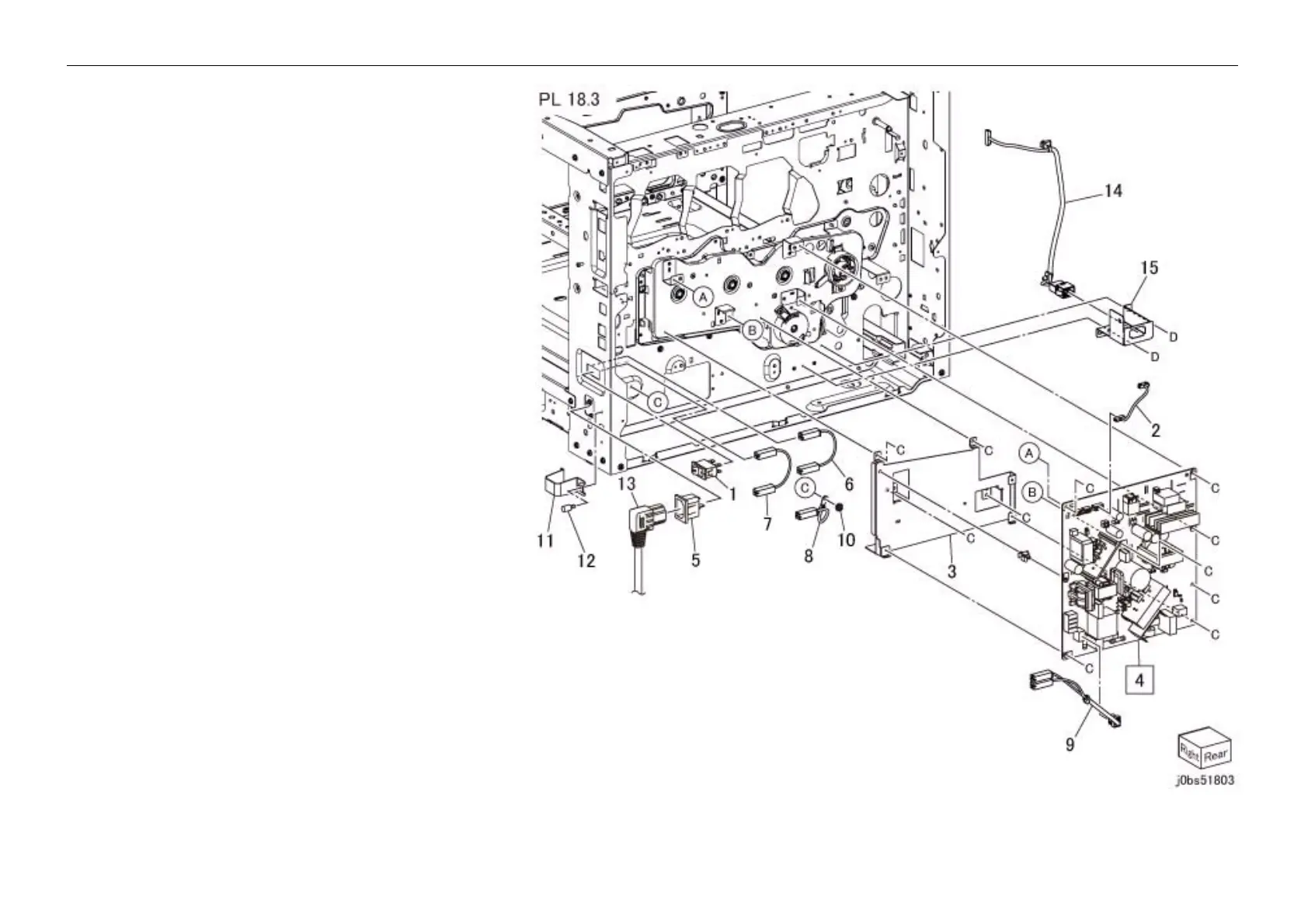

PL 18.3 Electrical-Lower Rear
Item Parts No Description A.C.
1 910W 00703 (SCC) Main Power Switch(REP 99.1.1)
2 952K 05510 Wire Harness
3 815E 89100 LVPS Bracket
4 105E 21660 LVPS (REP 18.3.1)
5 913W 02321 (SCC) AC Inlet (REP 99.1.1)
6 117K 48110 (SCC) Inlet Wire Harness (HOT) (REP 99.1.1)
7 117K 48120 (SCC) Inlet Wire Harness (NUT) (REP 99.1.1)
8 117K 48130 (SCC) Ground Wire (REP 99.1.1)
9 952K 05330 (SCC) Power Switch Wire Harness (REP 99.1.1)
10 – Screw
11 868E 82680 Stopper Bracket
12 – Thumbscrew
13 117E 27770 Power Cord (FXCL)
– 117E 24270 Power Cord (FXA/FXNZ)
– 117E 24280 Power Cord (FXS/FXM/FXHK)
– 117E 24310 Power Cord (ICO/AG)
– 117E 24300 Power Cord (FXP)
– 917W 03120 Power Cord (FXTH)
– 917W 03105 Power Cord (FXK)
14 952K 16860 (SCC) STM Wire Harness (REP 99.1.1)
15 – STM Bracket
To Next Page
