Disassembly/Assembly and Adjustment
REP 15.1.2 Registration Roll
Parts List on PL 15.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
To prevent the light fatigue of the Drum, either wrap the removed
Xero Unit by using a sheet of black paper or store it in a black bag.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Prepare a sheet of black paper (x4) or a black bag (x4).
2. Remove Y, M, C, K of the Xero Unit. (REP 8.1.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Remove the Inner Cover. (REP 19.1.2)
5. Remove the MSI. (REP 13.1.1)
6. Remove the L/H Cover. (REP 14.1.1)
7. Remove the Registration Chute. (REP 15.1.1)
8. Remove the Drive Assembly. (REP 3.1.1)
9. Remove the Registration Clutch on the Rear side. (Figure 1)
(1) Remove the wire harness from the Harness Guide.
(2) Disconnect the connector.
(3) Remove the E-Clip.
(4) Remove the gear.
(5) Remove the Registration Clutch and the gear.

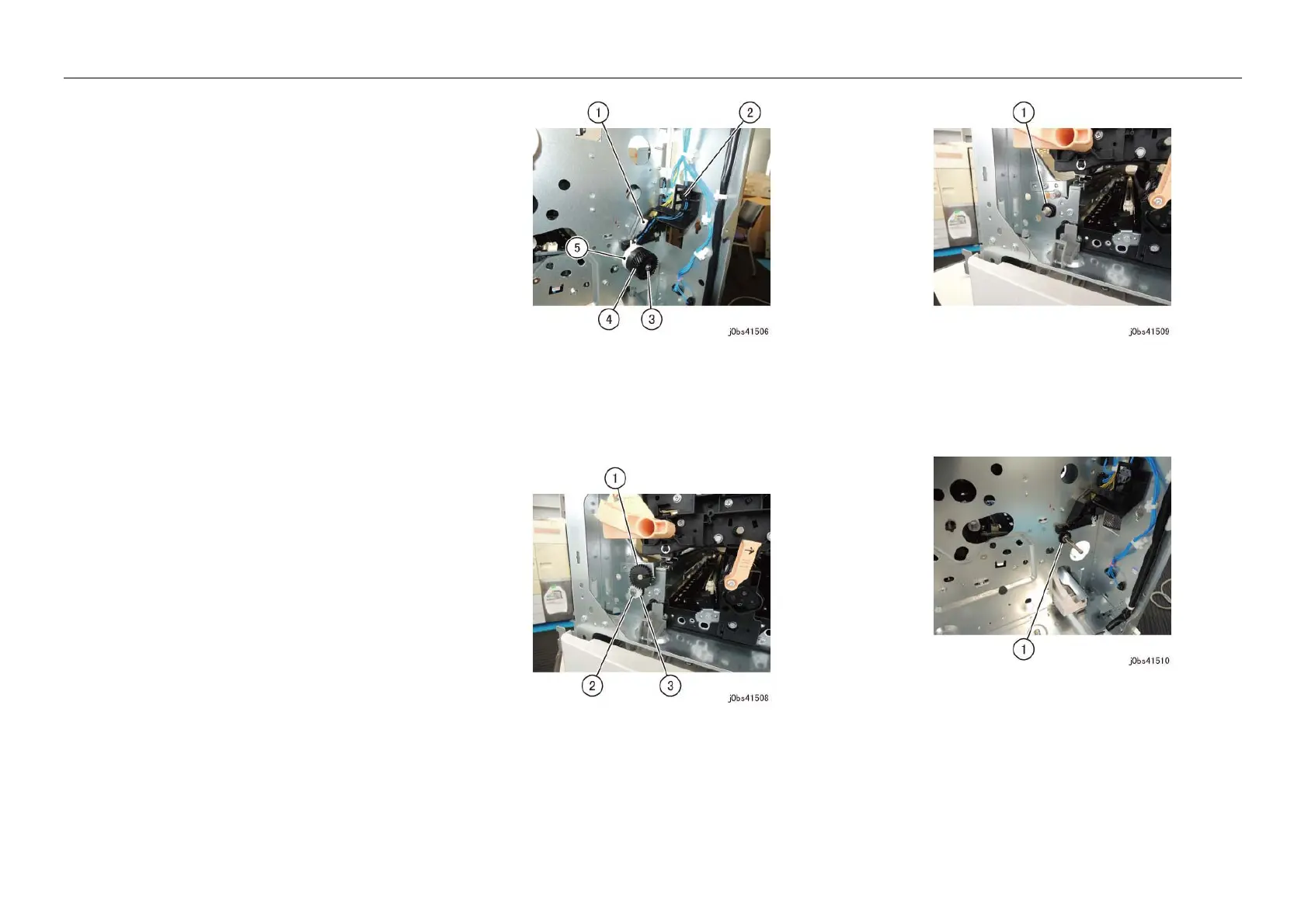

Figure 1 j0bs41506
10. Remove the Gear on the Front. (Figure 2)
(1) Remove the gear.
(2) Remove the E-Clip.
(3) Remove the gear.
Figure 2 j0bs41508
11. Remove the bearing at the front. (Figure 3)
(1) Remove the Bearing.
Figure 3 j0bs41509
12. Remove the Bearing on the Rear side. (Figure 4)
(1) Remove the Bearing.
Figure 4 j0bs41510
13. Remove the Registration Roll. (Figure 5)
(1) Remove the Registration Roll.
To Next Page
