Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-23
DC SC2020
Parts List
6. Transfer
Version 1.1

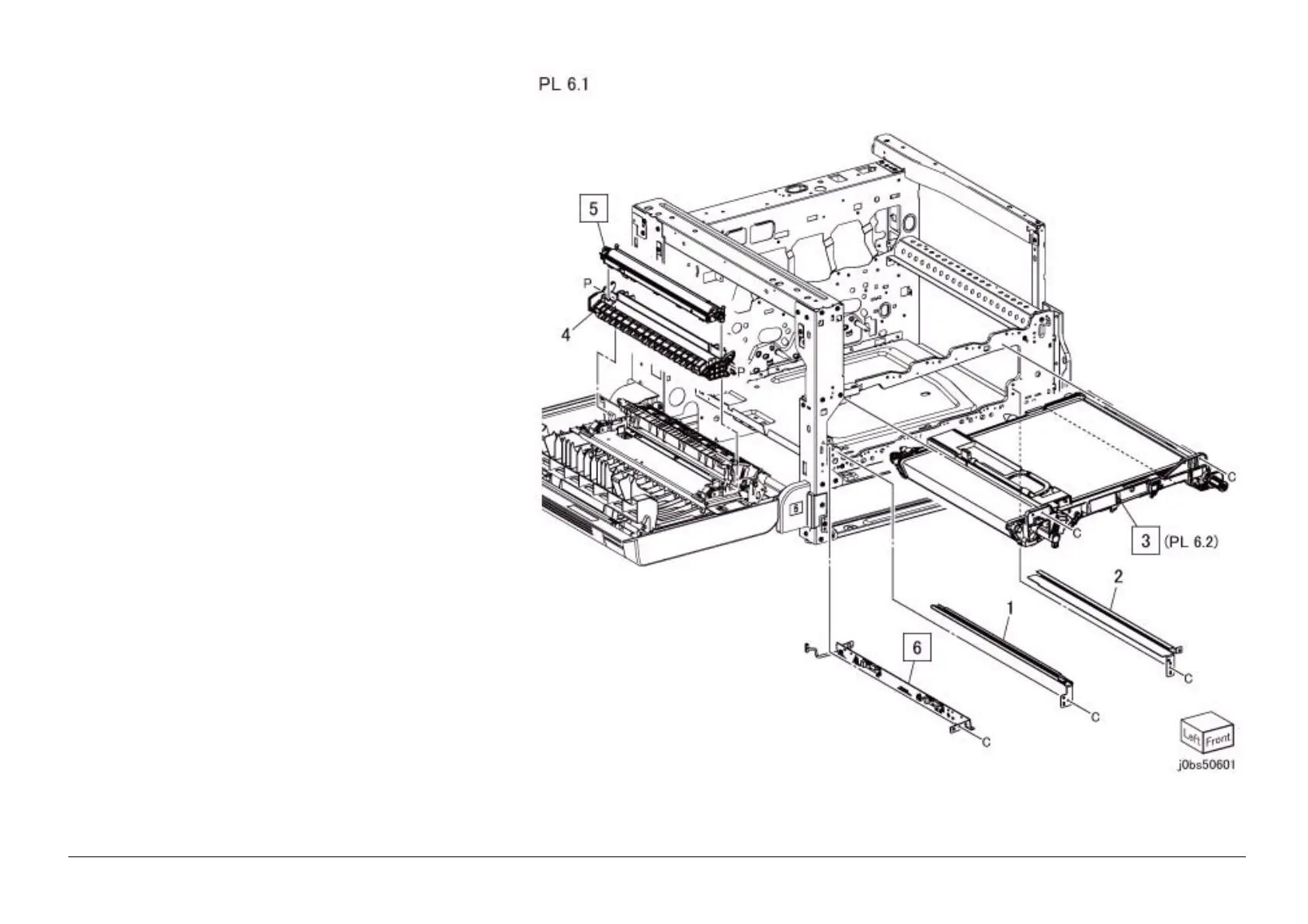

PL 6.1 IBT Belt Unit,2nd BTR Roll,MOB ADC
Assembly
Item Parts No Description A.C.
1 032E 42932 Left Guide
2 032E 42951 Right Guide
3 604K 90830 IBT Belt Unit (PL 6.2) (REP 6.1.1)
4 848K 91310 2nd BTR Roll Housing
5 604K 90840 2nd BTR Roll (REP 6.1.2)
6 130K 89880 MOB ADC Assembly (REP 6.1.3)
