56. DADF
Version 1.1
Parts List

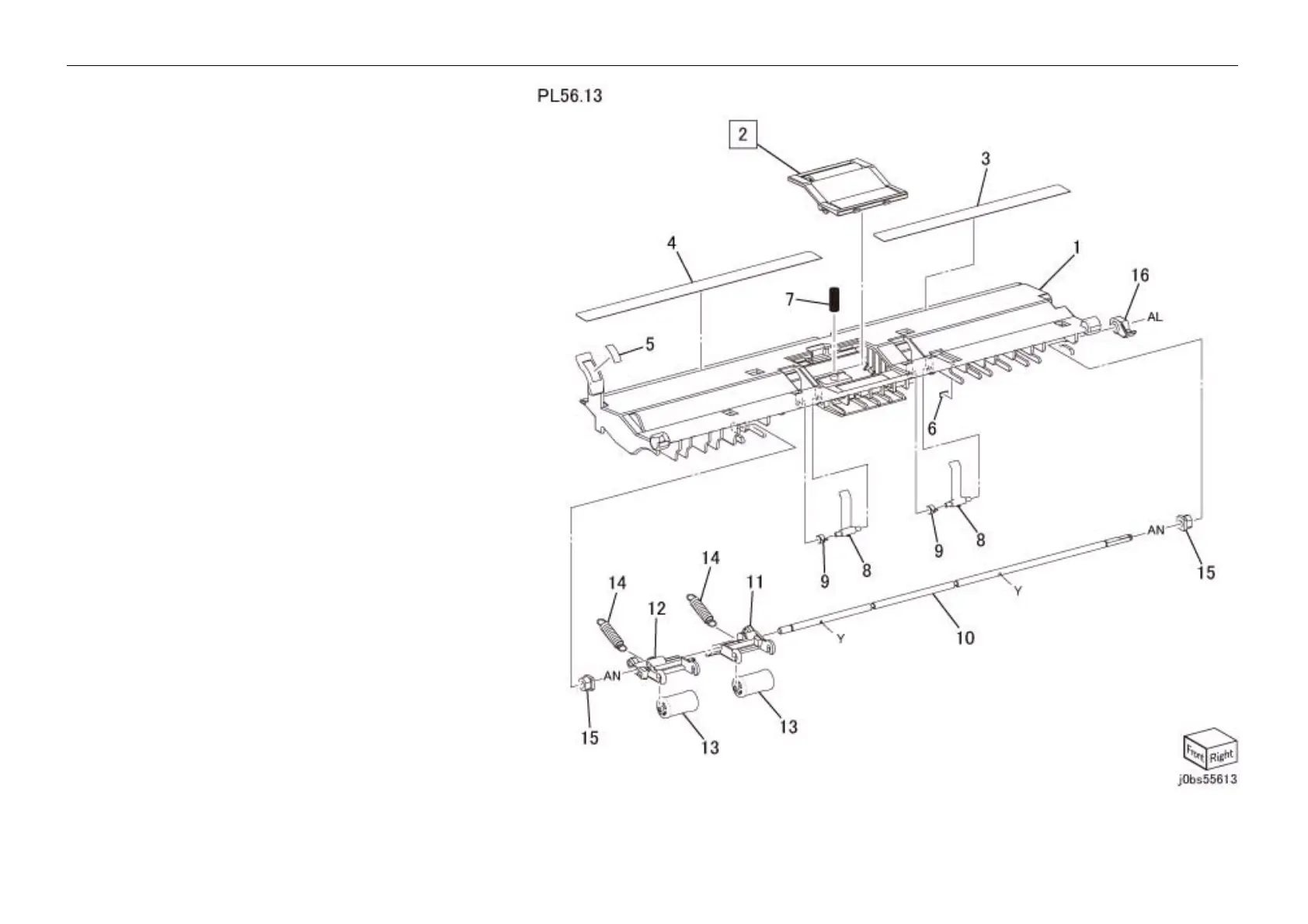

PL 56.13 Retard Chute
Item Parts No Description A.C.
1 – Retard Chute
2 848K 68730 DADF Retard Pad (REP 56.13.1)
3 035K 84270 Rear Seal
4 035K 84260 Front Seal
5 – Label
6– Pad
7 899E 01520 Spring
8 050E 28270 Set Gate
9 899E 01510 Spring
10 – Shaft
11 019E 84130 Rear Holder
12 019E 84120 Front Holder
13 059E 08660 Pinch Roll
14 899E 01531 Spring
15 413W 11460 Bearing
16 012E 18280 Link
