REP 19.1.4 Top Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Front Cover. (REP 19.1.1)
2. Remove the Inner Cover. (REP 19.1.2)
3. Remove the Top Cover. (Figure 1)
(1) Remove the Top Cover.

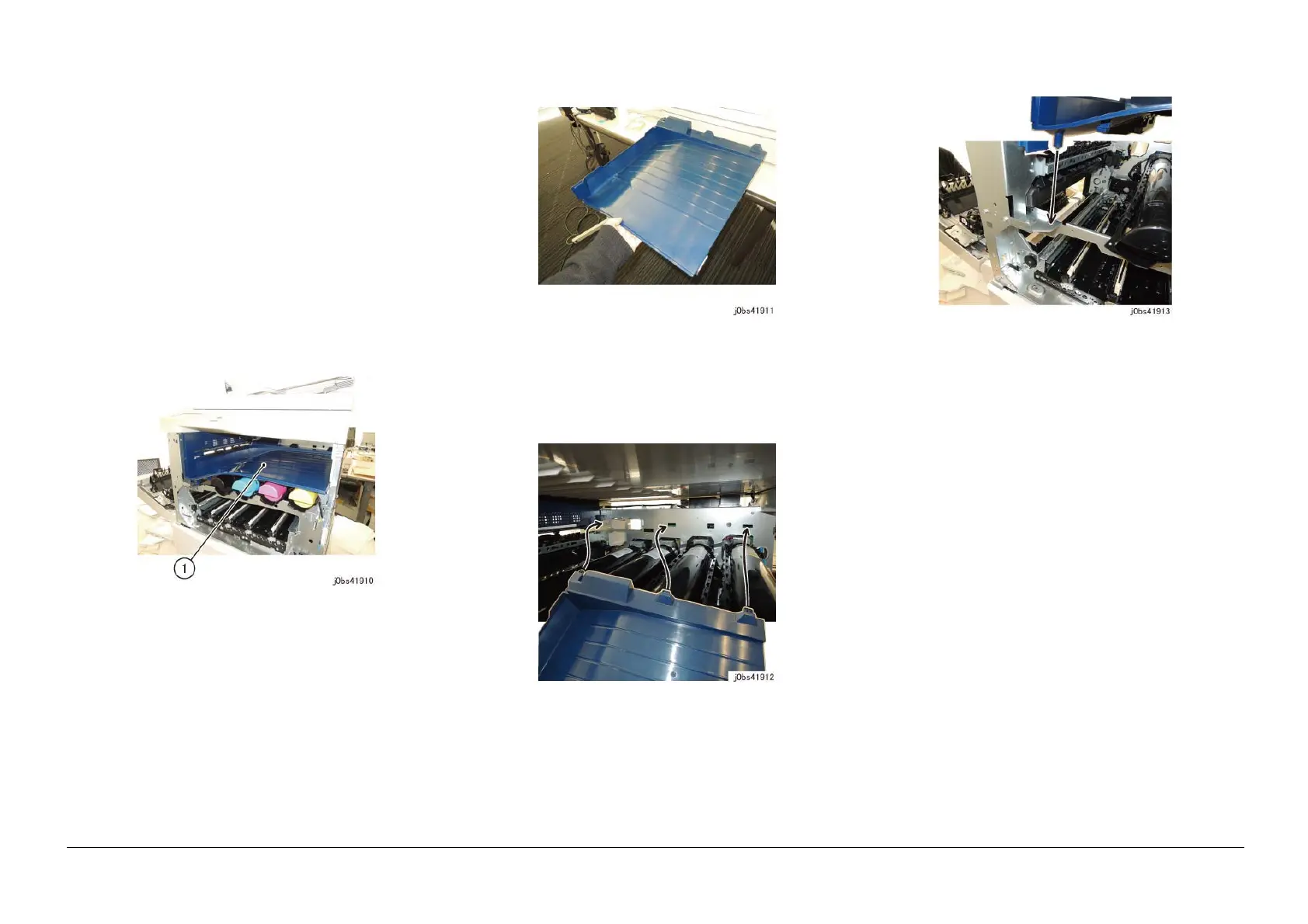

Figure 1 j0bs41910
Reference: This shows the removed Top Cover. (Figure 2)
Figure 2 j0bs41911
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Top Cover, put the Boss (x3) on the Rear
side of the Top Cover in the mounting hole. (Figure 3)
Figure 3 j0bs41912
3. When installing the Top Cover, put the Boss on the Front side
of the Top Cover in the mounting hole. (Figure 4)
Figure 4 j0bs41913
