05/2014
4-37
DC SC2020
Disassembly/Assembly and Adjustment
7. Fusing Unit
Version 1.1
REP 7.1.1 (SCC) Fusing Unit
Parts List on PL 7.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
WARNING
Do not work on a hot Fusing Unit until it is cool enough.
1. Open the L/H Cover.

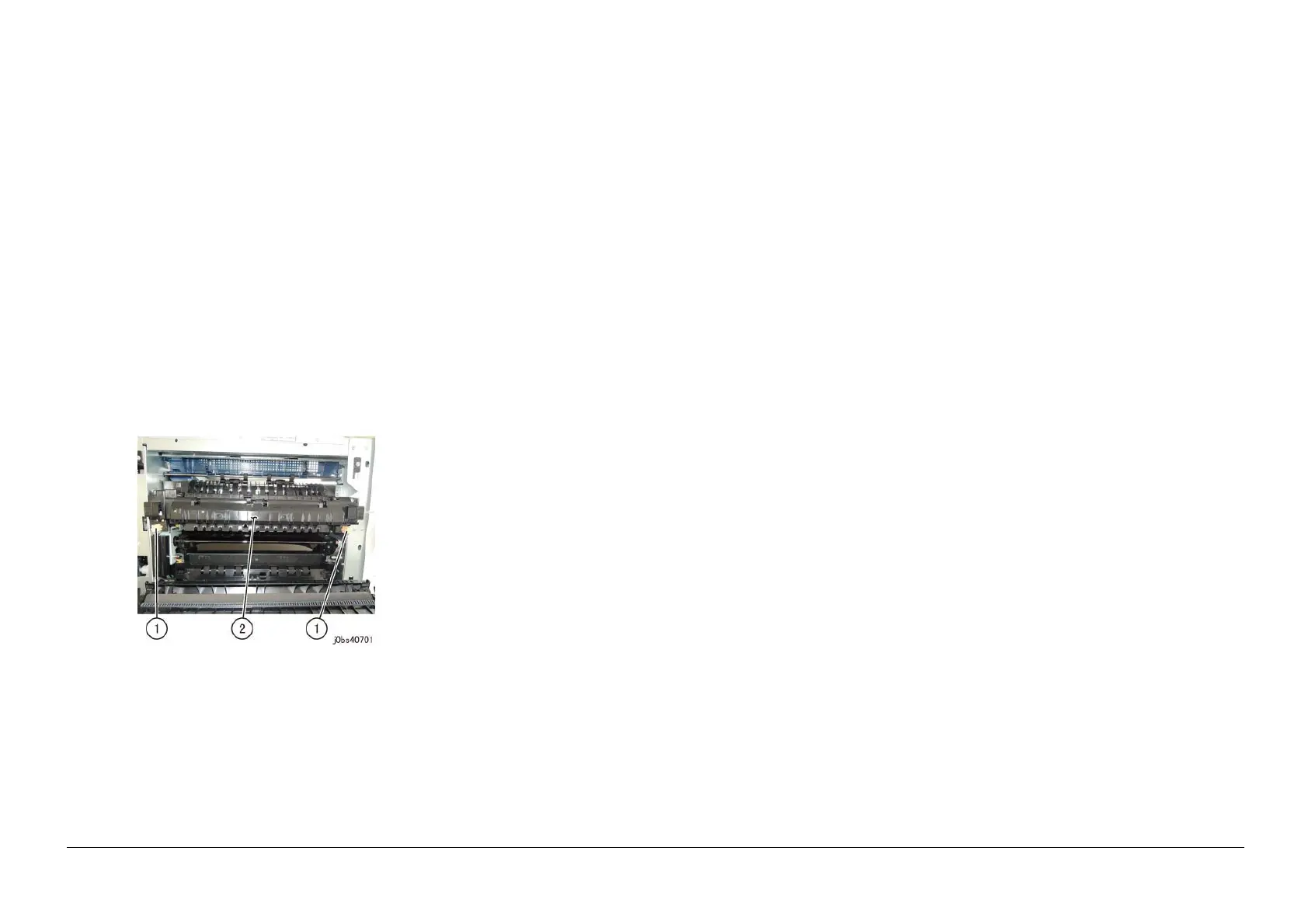

2. Remove the Fusing Unit. (Figure 1)
(1) Loosen the screw (x2).
(2) Remove the Fusing Unit.
Figure 1 j0bs40701
Replacement
1. To install, carry out the removal steps in reverse order.
2. Enter the CE Mode after installation and initialize the Printer
Diag > Parameter > Life > Fusing Unit Print Count and the Fus-
ing Unit Time Count and initialize the Life Counter.
To Next Page
