05/2014
4-55
DC SC2020
Disassembly/Assembly and Adjustment
13. MSI
Version 1.1
REP 13.1.1 MSI
Parts List on PL 13.1
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.

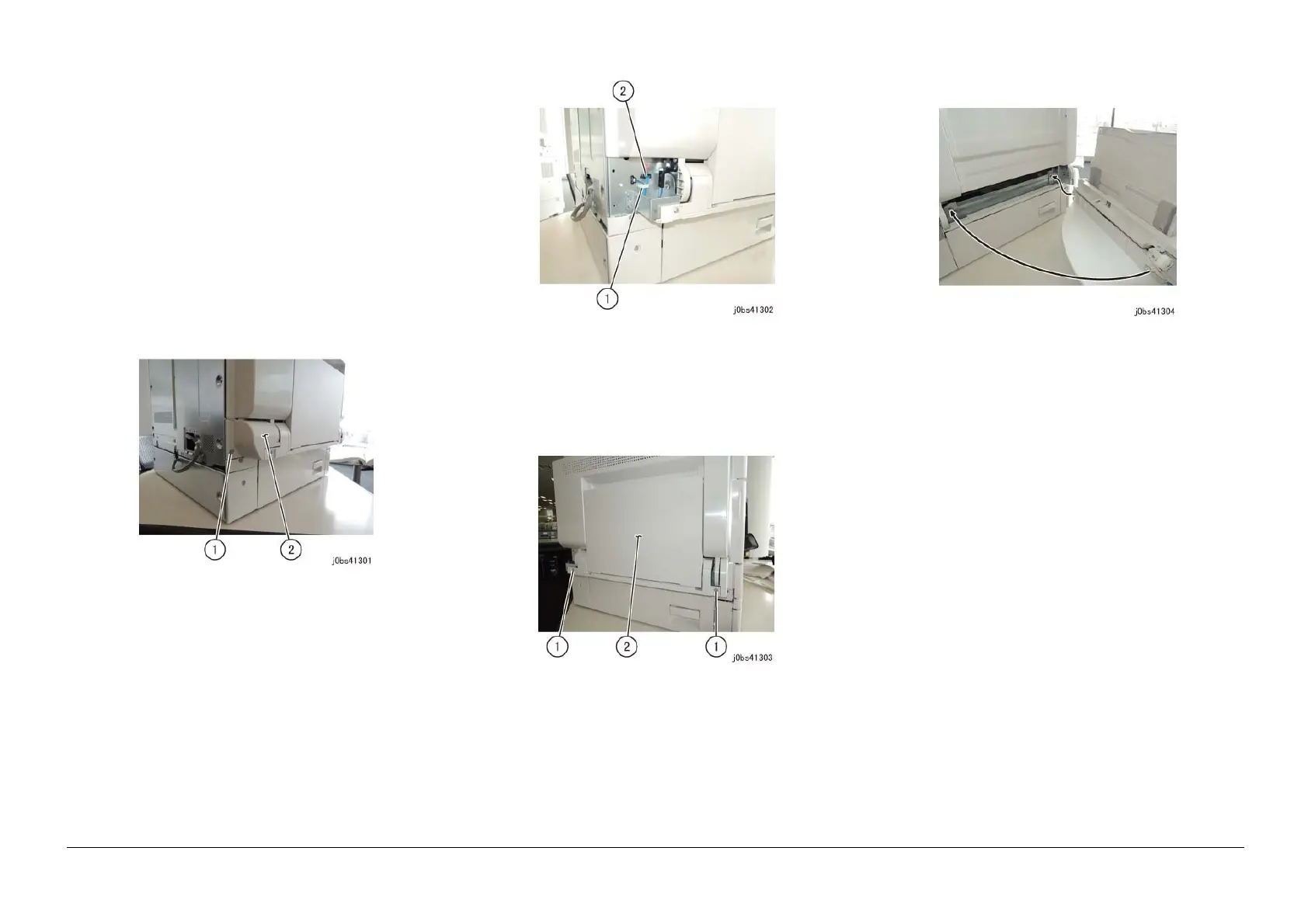

1. Remove the Hinge Rear Cover. (Figure 1)
(1) Remove the screw.
(2) Remove the Hinge Rear Cover.
Figure 1 j0bs41301
2. Disconnect the connector. (Figure 2)
(1) Release the wire harness from the clamp.
(2) Disconnect the connector.
Figure 2 j0bs41302
3. Remove the MSI. (Figure 3)
(1) Remove the screw (x2).
(2) Remove the MSI.
Figure 3 j0bs41303
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MSI, insert the boss (x2) of the MSI into the
holes for the boss. (Figure 4)
Figure 4 j0bs41304
3. After a replacement, enter the CE mode, and then perform Ini-
tialize via Printer Diag > Parameter > Life > MSI FR Pad to ini-
tialize the Life counter.
To Next Page
